Render caustics cleaned at PMC - s/px & sun sizes

Postby nuno1980 » Wed Dec 16, 2015 12:00 pm

nuno1980 Wed Dec 16, 2015 12:00 pm
Hello, guys! :) But this thread is very important!

Render caustics are (almost) cleaned:

Sun sizes / resolutions screen - 1002x602 .... / 1920x1080 . / 3840x2160
0.1x (on Saturn)........................... - 13,500k spp* / 4,000k spp* / 1,000k spp*
1x (on Earth)................................ - 260k** .......... / 75.5k ........... / 18.9k
2x.................................................. - 78k ................ / 23k ............... / 5.75k
4x ................................................. - 23k ................ / 6.8k .............. / 1.7k
8x ................................................. - 7k .................. / 2.1k .............. / 525
10x ............................................... - 4.9k ............... / 1.45k ............ / 360

"spp" - samples per pixel

VERY IMPORTANT: do not forget to disable "caustic blur" from default at PMC settings. If we set to 10k-reject to may get some noises (noises colored if any specular material has dispersion) then we try more spp.

* - we can't increase "Max. samples" from 256k using OR 2.24.2 :( But IMPORTANT!!! - we'll change "Max. samples" from default as 500 to 0 to get infinite spp using newer version of OR.

Do you like this thread? :D

If you want any other planet then contact me. ;)
NOTE: I'm sorry for bad english due to mute ;)

[email protected]
16GB [email protected]
ASUS Z97-Pro Gamer
EVGA GF GTX 980 Ti SC+ 2.0 :D
SSD OCZ RD400 0.5TB
HDDs 1TB SATA2 and 3TB SATA3.
LG BD-RE BH16NS40
PSU 1 kW
LCD-LED monitor 24" BenQ XL2411P NEW! :D
nuno1980
Licensed Customer
Licensed Customer

Posts: 625
Joined: Sat Dec 18, 2010 10:04 pm

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby nuno1980 » Mon Dec 28, 2015 12:42 pm

nuno1980 Mon Dec 28, 2015 12:42 pm
I investigated caustics... but I would need to increase from 23 kS/px to 50 kS/px at sun size 4x because this increase of S/px reduces noises colored for other things (not caustics). ;)

Sun size 4x at 25 kS/px
wihout noise_sun size 4x_10k-reject.PNG

This image has to seem few noises colored. ;)

Sun size 1x at 256 kS/px
wihout noise_sun size 1x_10k-reject.PNG

This image is cleaned and looks pretty well! :D

PMC settings:
27-depth both diff+spec
10k-reject
parallelism 1

"Ice" material:
reflection 0.930
transmission 1.000
ior 1.299
coefficient dispersion 0.003


--> Do you like that? :)
NOTE: I'm sorry for bad english due to mute ;)

[email protected]
16GB [email protected]
ASUS Z97-Pro Gamer
EVGA GF GTX 980 Ti SC+ 2.0 :D
SSD OCZ RD400 0.5TB
HDDs 1TB SATA2 and 3TB SATA3.
LG BD-RE BH16NS40
PSU 1 kW
LCD-LED monitor 24" BenQ XL2411P NEW! :D
nuno1980
Licensed Customer
Licensed Customer

Posts: 625
Joined: Sat Dec 18, 2010 10:04 pm

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby Elvissuperstar007 » Tue Dec 29, 2015 11:26 am

Elvissuperstar007 Tue Dec 29, 2015 11:26 am
ice in the material necessary to tick the fake shadows
win 7 /64x C2Quad 6600 2.4/ Nvidia 9800 GX2 1gb 512 bit + Asus 480 GTX/ DDR2 8Gb / NVIDIA 460 GTX 2GB/2x NVIDIA 580 GTX 3GB
Page octane render " В Контакте " http://vkontakte.ru/club17913093
User avatar
Elvissuperstar007
Licensed Customer
Licensed Customer

Posts: 2350
Joined: Thu May 20, 2010 8:20 am
Location: Ukraine/Russia

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby nuno1980 » Tue Dec 29, 2015 11:48 am

nuno1980 Tue Dec 29, 2015 11:48 am
Elvissuperstar007 wrote:ice in the material necessary to tick the fake shadows
I do never like fake shadows as fake caustics because it looks BAD caustics rendered = no "real-life" and I deserve much "real-life". lool

But I wait new kernel as maybe progressive photon mapping (PPM) for much shorter time render than PMC. :)
NOTE: I'm sorry for bad english due to mute ;)

[email protected]
16GB [email protected]
ASUS Z97-Pro Gamer
EVGA GF GTX 980 Ti SC+ 2.0 :D
SSD OCZ RD400 0.5TB
HDDs 1TB SATA2 and 3TB SATA3.
LG BD-RE BH16NS40
PSU 1 kW
LCD-LED monitor 24" BenQ XL2411P NEW! :D
nuno1980
Licensed Customer
Licensed Customer

Posts: 625
Joined: Sat Dec 18, 2010 10:04 pm

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby djart » Wed Dec 30, 2015 1:50 pm

djart Wed Dec 30, 2015 1:50 pm
nuno1980 wrote:
Elvissuperstar007 wrote:ice in the material necessary to tick the fake shadows
I do never like fake shadows as fake caustics because it looks BAD caustics rendered = no "real-life" and I deserve much "real-life". lool

But I wait new kernel as maybe progressive photon mapping (PPM) for much shorter time render than PMC. :)


Whats lool? "Laughing out out loud"...

But anyway, you do a very good job by giving unnecassery information to the community :)
djart
Licensed Customer
Licensed Customer

Posts: 135
Joined: Thu Oct 10, 2013 2:17 pm

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby nuno1980 » Wed Dec 30, 2015 2:34 pm

nuno1980 Wed Dec 30, 2015 2:34 pm
djart wrote:Whats lool? "Laughing out out loud"...
yeah. ;) But "lol" - looool, lolol or lloll...
NOTE: I'm sorry for bad english due to mute ;)

[email protected]
16GB [email protected]
ASUS Z97-Pro Gamer
EVGA GF GTX 980 Ti SC+ 2.0 :D
SSD OCZ RD400 0.5TB
HDDs 1TB SATA2 and 3TB SATA3.
LG BD-RE BH16NS40
PSU 1 kW
LCD-LED monitor 24" BenQ XL2411P NEW! :D
nuno1980
Licensed Customer
Licensed Customer

Posts: 625
Joined: Sat Dec 18, 2010 10:04 pm

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby nuno1980 » Thu Mar 24, 2016 10:21 pm

nuno1980 Thu Mar 24, 2016 10:21 pm
See differences of caustics between 3 images at S/px and resolution screen about teaport:

- at 360x216 - 150 kS/px
test 360x216 at 150k-S per px.PNG


- at 1002x602 - ~19,337 S/px
test 1002x602 at 19337 S per px.PNG

360x216 and 1002x602 seem to be same caustics and same noises.

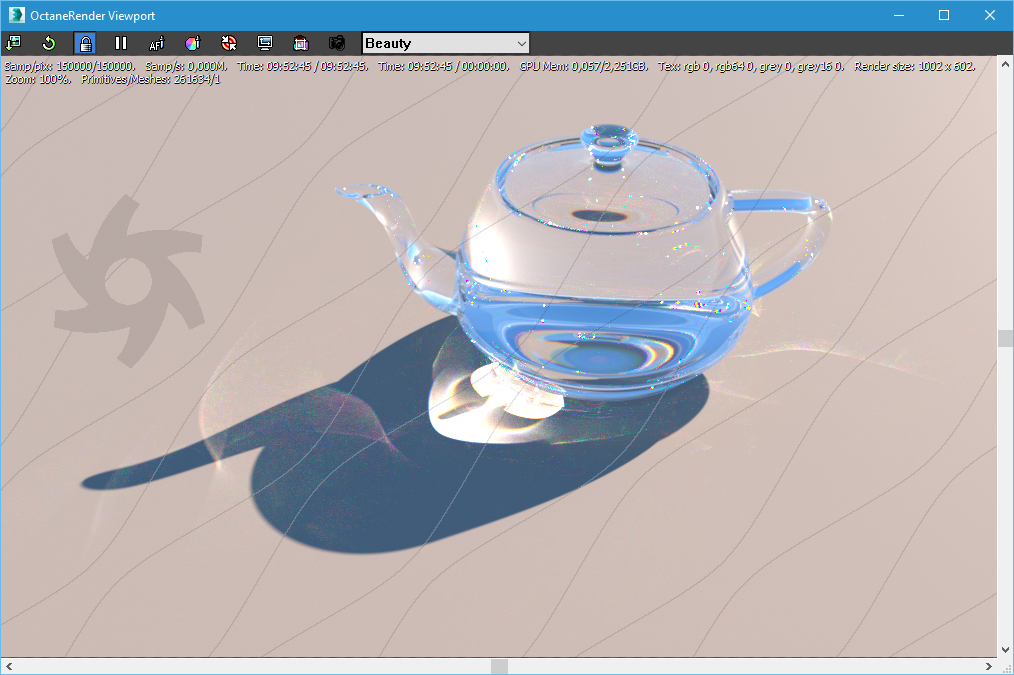

- at same resolution screen - 150 kS/px
2 sun settings default except 14.5h.PNG


Higher resolution screen = better caustics and less noises at 150 kS/px :) but longer render time. ;)

I'll buy OR in my anniversary (on july) but maybe few next months. :)

--> Do you like this? - but IMPORTANT!! Should respond me it. ;)
NOTE: I'm sorry for bad english due to mute ;)

[email protected]
16GB [email protected]
ASUS Z97-Pro Gamer
EVGA GF GTX 980 Ti SC+ 2.0 :D
SSD OCZ RD400 0.5TB
HDDs 1TB SATA2 and 3TB SATA3.
LG BD-RE BH16NS40
PSU 1 kW
LCD-LED monitor 24" BenQ XL2411P NEW! :D
nuno1980
Licensed Customer
Licensed Customer

Posts: 625
Joined: Sat Dec 18, 2010 10:04 pm

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby bepeg4d » Fri Mar 25, 2016 8:42 am

bepeg4d Fri Mar 25, 2016 8:42 am
Good tests nuno, have you tried by rendering at double or quad for few samples and then down scaling at the original resolution?
ciao beppe
User avatar
bepeg4d
Octane Guru
Octane Guru

Posts: 7314
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby gabrielefx » Fri Mar 25, 2016 9:11 am

gabrielefx Fri Mar 25, 2016 9:11 am
teapot test is not ok,
when you involve many objects in interior spaces you will need 8 Titan X to get a clean image.
Fox exteriors PMC is useless, pt is a lot faster especially if you set GI clamp to 1. Also using PT with GI set to 1 you have to use caustic blur if you have metallic or very reflective objects in the scene.
For interiors you can use pmc but you need 8 fast gpus, it's better to use pt, Octane will generate sharper images, well defined texture and less noise in dark areas.
I never used glossy and specular samples at high values except you have several glass layers, I always use 8-16, rarely 24.
Caustics are useful only if you create a pool.
Don't use dispersion because it generates noise.

regards
quad Titan Kepler 6GB + quad Titan X Pascal 12GB + quad GTX1080 8GB + dual GTX1080Ti 11GB
User avatar
gabrielefx
Licensed Customer
Licensed Customer

Posts: 1701
Joined: Wed Sep 28, 2011 2:00 pm

Re: Render caustics cleaned at PMC - s/px & sun sizes

Postby nuno1980 » Fri Mar 25, 2016 12:44 pm

nuno1980 Fri Mar 25, 2016 12:44 pm
bepeg4d wrote:Good tests nuno, have you tried by rendering at double or quad for few samples and then down scaling at the original resolution?
ciao beppe
:)
No, 3 images are original. But I'll downscale to 1280x800 (eg) for blur by AA noises from 2560x1600 (eg) after OR bought. :)

For downscale, open any PNG image with Paint, zoom out from 100% to 33% or 50% to lower resolution screen and capture (press keys ctrl+print) it. Run 2nd Paint program to paste this image captured and cut from it to image rendered. ;)


gabrielefx wrote:teapot test is not ok,
when you involve many objects in interior spaces you will need 8 Titan X to get a clean image.
Fox exteriors PMC is useless, pt is a lot faster especially if you set GI clamp to 1. Also using PT with GI set to 1 you have to use caustic blur if you have metallic or very reflective objects in the scene.
For interiors you can use pmc but you need 8 fast gpus, it's better to use pt, Octane will generate sharper images, well defined texture and less noise in dark areas.
I never used glossy and specular samples at high values except you have several glass layers, I always use 8-16, rarely 24.
Caustics are useful only if you create a pool.
Don't use dispersion because it generates noise.

regards
My test is good!! :evil:

Your tips about 8 GPU's is good but I haven't very big ("professional") money. But I'll upgrade to new GeForce x80 Titan (Pascal) in Christmas and Pascal with HBM2 will be ~10x faster than Maxwell at GPU computing only. :D After X80 Titan released, we'll review surprise and very good result using OR. :)

Do you deserve "real-life"? If you respond me "yes" then should correct render and specular material settings:
- PMC kernel with:
24-depth (diff+glossy) for 1 clear glass only or between 100- and 300-depth for many clear glasses and/or few mirrors or for 1 3D star glass;
paralellism 1;
no caustic blur;
max GI;
5k or 10k reject.

- specular material with:
reflection between 0.9 and 0.98;
correct index of refraction* if it has dipsersion then should reduce índex dispersed as índex original from index original;
must enable dispersion with correct value*

* - see https://refractiveindex.info/ and do formulas**

** - formulas:

Code: Select all
B = (n_d - 1)/V_d*((0.48613^2*0.65627^2)/(0.65627^2 - 0.48613^2))

F and C = F and C wavelengthes - If wavelength = 589.3 nm then should use F = 486.13 nm and C = 656.27 nm


n_d_dispersed = n_d_original - 10/3*B

B -> dispersion coefficient
n_d -> refractive index
V_d -> abbe number
n_d_dispersed - refractive index dispersed if the dispersion is enabled, for Octane Render software only


If you have any doubt about formulas, contact me. ;)

You may not learn abbe number/dispersion because you haven't Chemical and/or Laboratory required. :P
NOTE: I'm sorry for bad english due to mute ;)

[email protected]
16GB [email protected]
ASUS Z97-Pro Gamer
EVGA GF GTX 980 Ti SC+ 2.0 :D
SSD OCZ RD400 0.5TB
HDDs 1TB SATA2 and 3TB SATA3.
LG BD-RE BH16NS40
PSU 1 kW
LCD-LED monitor 24" BenQ XL2411P NEW! :D
nuno1980
Licensed Customer
Licensed Customer

Posts: 625
Joined: Sat Dec 18, 2010 10:04 pm
