Make complex material using falloff

[TaikiMitsuishi]

Hi guys,

I'm new to use Octane Render for Modo and I tried to make a material using falloff to change a diffuse color for example, but it doesn't work with Octane Render.

Does anyone know how to make this kind of material?

Thanks.

Taiki Mitsuishi

[francois]

Do not use the consant shader that is not recognized by octane.

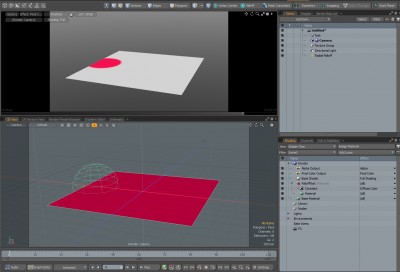

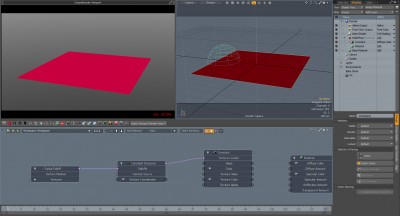

Rather use two RGBcolor and mix them with either a procedural texture of Octane, a grayscale image, or a weight map
[img]
https://image.noelshack.com/fichiers/20 ... -37-19.png
[/img]

[funk]

Unfortunately it's not possible for Octane to use shader tree falloffs/texture locators in this way.

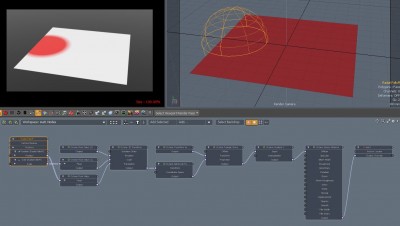

We can emulate the look with Octane nodes and some modo rigging, but it's a little complicated.

There's probably a few different ways to do it. I'm attaching a scene for you to study.

[francois]

it's very clever as a solution.
Thank you for sharing

[TaikiMitsuishi]

Hi, funk and francois,

thanks for the reply and funk I really thank you!!
this is so nice!!

I appreciate you guys
