Face cracking?

[rbennett2040]

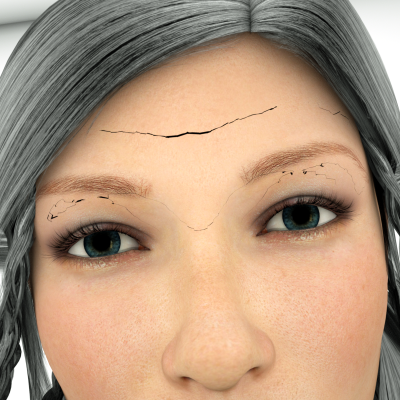

Several of my V4-based characters suffer "cracked faces" in Octane. See attached render. Does anyone know a solution to this? Thanks.

[slash]

Reduce the rayepsilon setting. It make look like it is at zero but it can go lower.

[Zwavelaar]

Yes, as noted above, the value of rayepsilon is probably your saviour

The lowest value is 0,000001. You can enter this value manually. I think the default value is set at 0,000005. But I'm not sure of that.

[jimgale]

I've found that you have to specify a non-zero value and THEN specify a zero value for it to 'take' at the lowest value it can have.

[t_3]

I've found that you have to specify a non-zero value and THEN specify a zero value for it to 'take' at the lowest value it can have.

unfortunately because of the digits limit in the daz slider, you won't see the input number; as zero is below the limit the plugin won't accept it, but the 4 digits in the daz slider still show like it was zero... to overcome by this: http://render.otoy.com/forum/viewtopic.php?f=44&t=36713

[UruMike]

These cracks are transparent geometry, the upper looks like scalp, the lower like eyebrow, that cut through the geometry of the head.
Took me a good while to figure that out.
Scale the hair or use a deformer, and move the eyebrow geometry if thi is the case.

Hope that helps!
