How do I create IES light?

Postby morphious2013 » Thu Feb 18, 2016 5:40 pm

morphious2013 Thu Feb 18, 2016 5:40 pm
I have the IES profiles, just can't figure out how to add them into octane plugin. Do I need to create an emitter, then ad it in the materials node? If so, where? Thanks.
Gateway i5 3.2ghz, 16g RAM, GTX 690 4GB VRAM, Windows 10 64bit, Poser Pro 11, DAZ Studio Pro 4.9, Daz Octane Plugin V2, Poser Octane Plugin V2
User avatar
morphious2013
Licensed Customer
Licensed Customer

Posts: 388
Joined: Sat Apr 20, 2013 1:22 pm

Re: How do I create IES light?

Postby linvanchene » Thu Feb 18, 2016 9:02 pm

linvanchene Thu Feb 18, 2016 9:02 pm
morphious2013 wrote:I have the IES profiles, just can't figure out how to add them into octane plugin. Do I need to create an emitter, then ad it in the materials node? If so, where? Thanks.


face_off updated the OcDS projection mode names to be identical with the OR standalone version in one of the recent updates.


Now you can follow those steps:

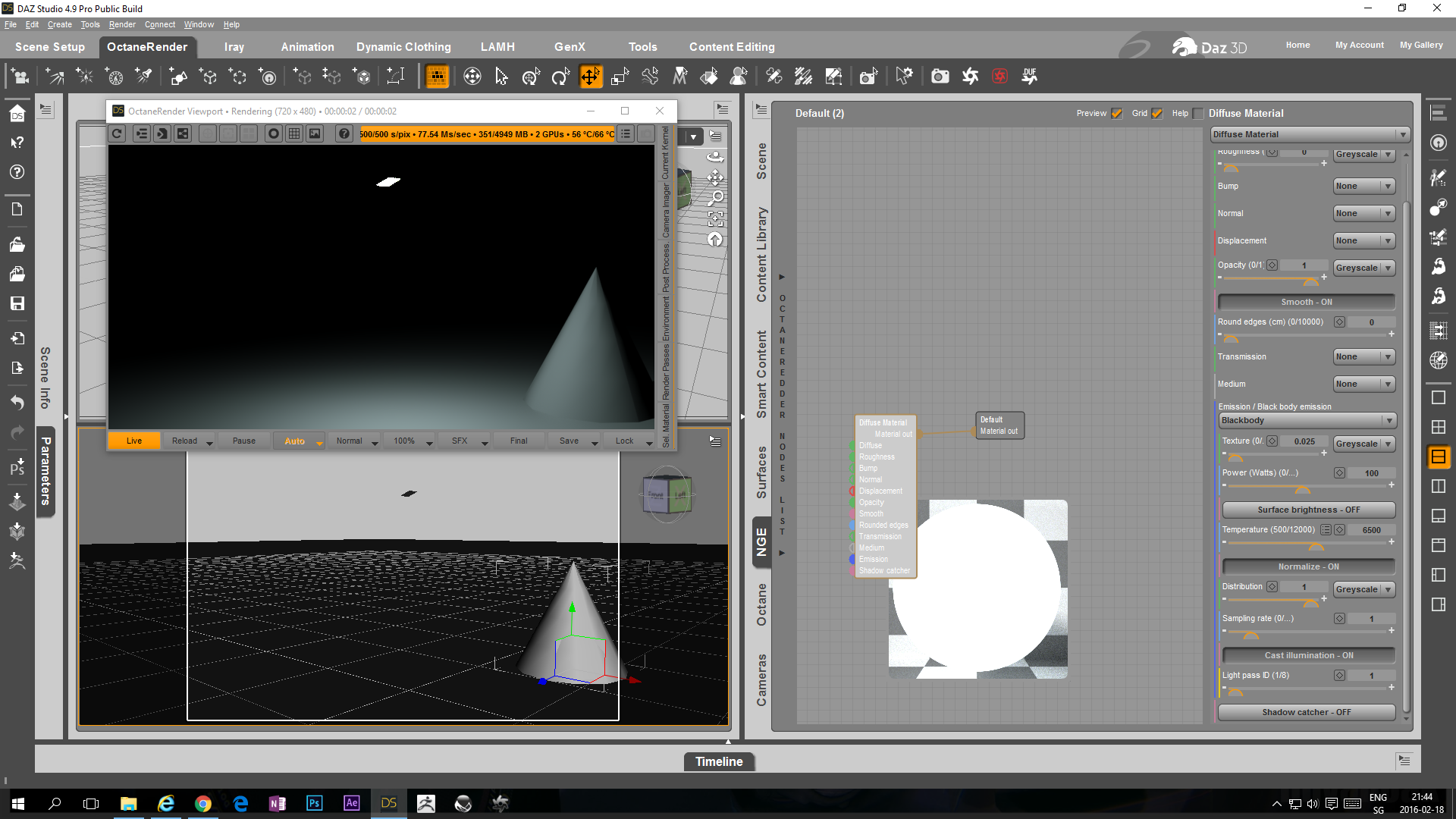

001 Create a Basic Light emitter with the green y normal direction pointing down on the ground.

001 Basic Light emitter.png

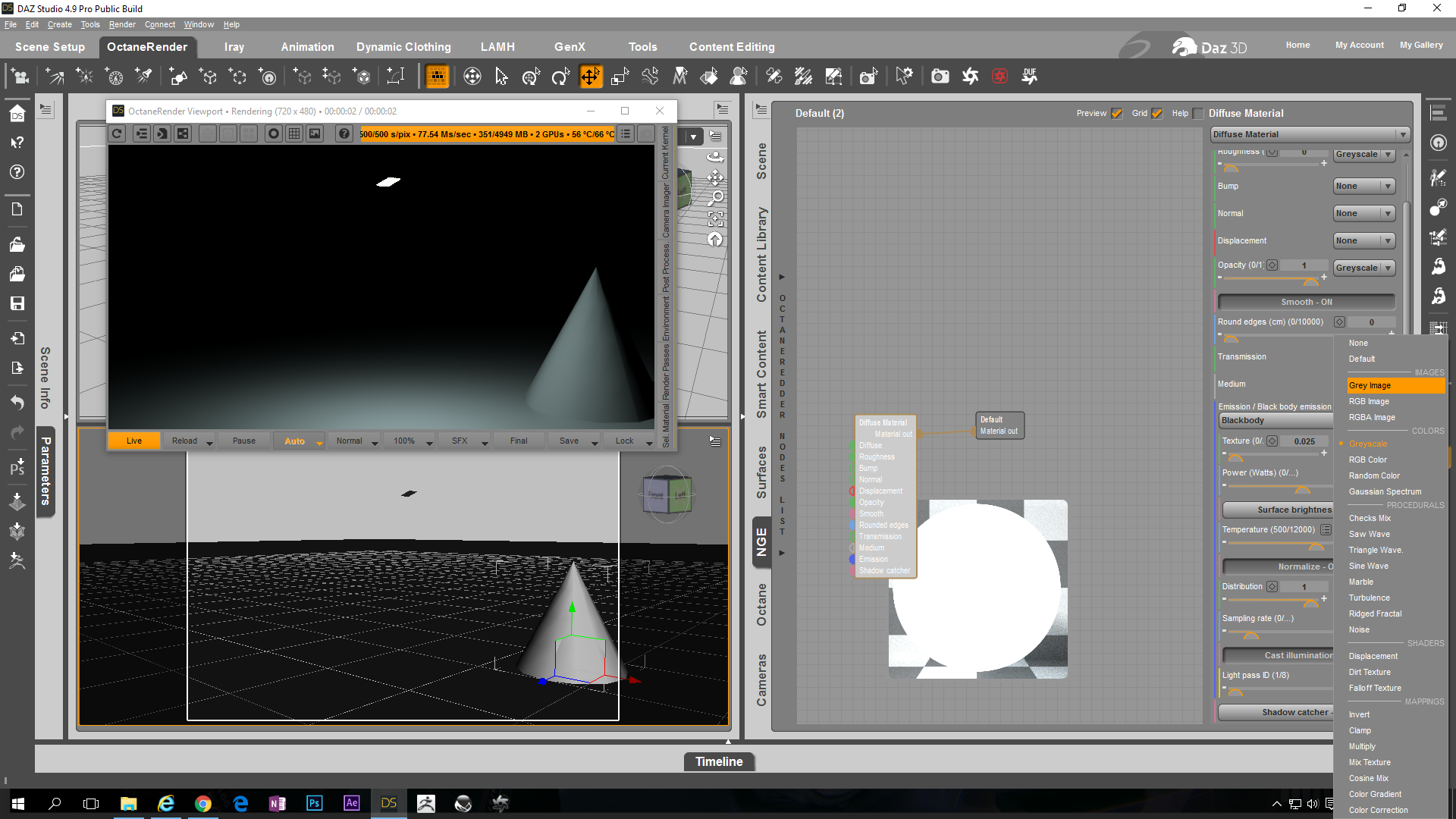

002 Change the Distribution setting of the emitter material to a grey image

002 Distribution - change to grey image.png

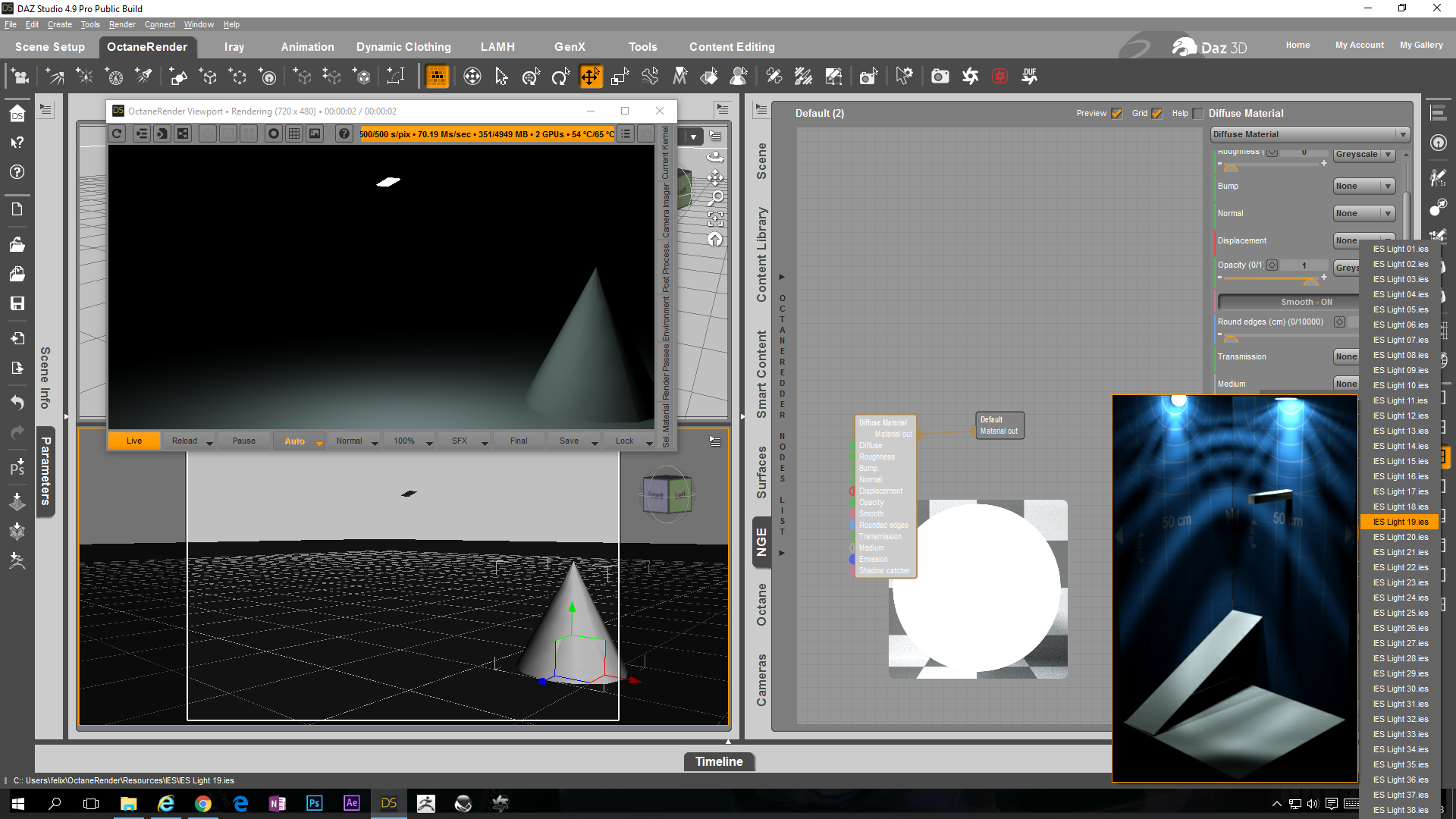

003 Select one of the IES presets that are shown in the pulldown menu of the grey image node in the distribution setting.

003 Select IES preset.png


- - -

Now you have three options how to proceed:

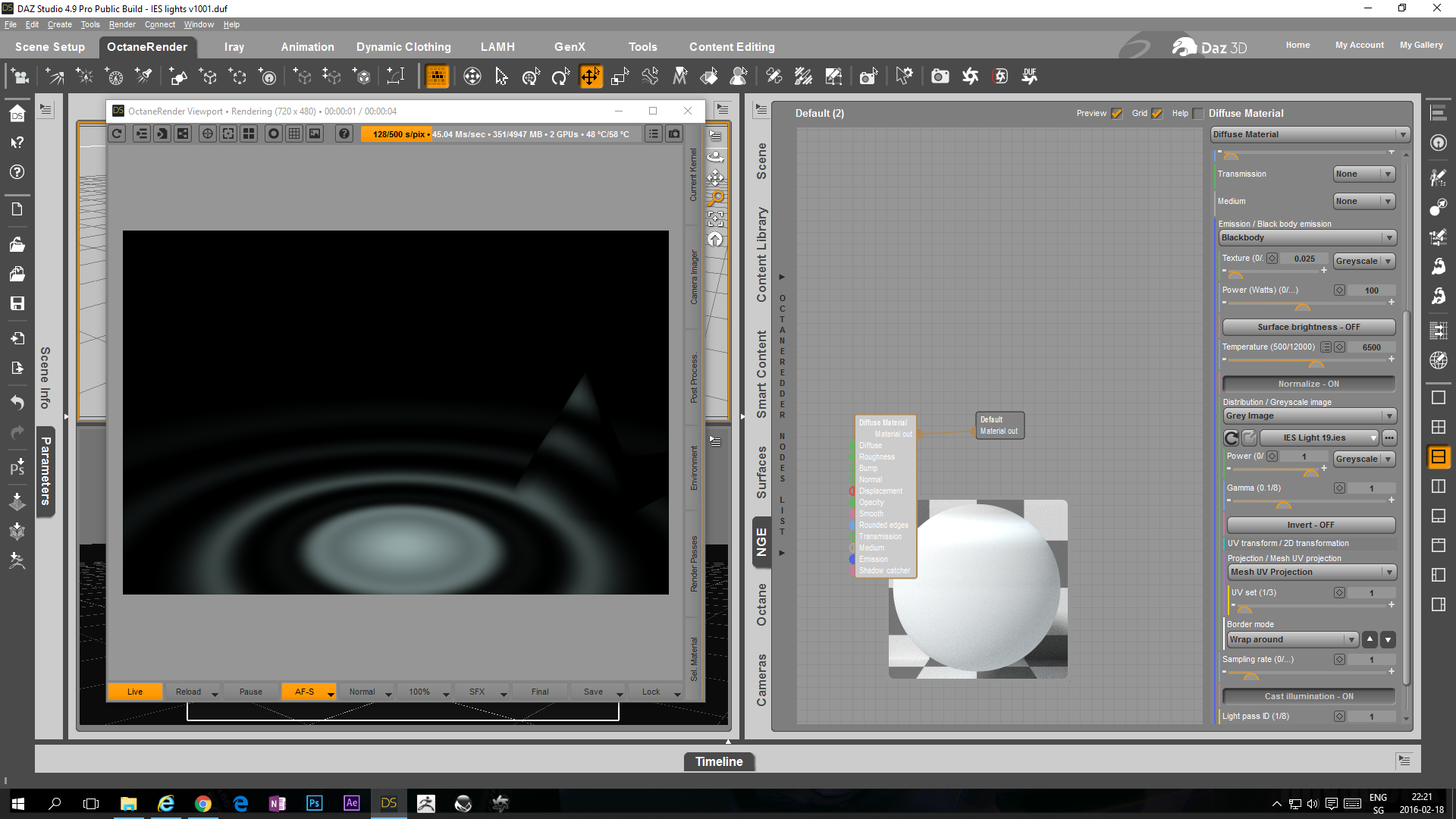

004A by default the Mesh UV Projection should now be selected

The Mesh UV Projection will create exactly the same light pattern on the floor as in the preview image IF the light emitting plane is pointing with the green y axis normal facing down towards the floor plane.

004A Mesh UV Projection.png


Note that with Mesh UV Projection the IES light pattern is cast directly below the emitter on the floor no matter in which direction the normal of the light emitter is pointing.

- - -

If you want to point the IES light pattern into a specific direction

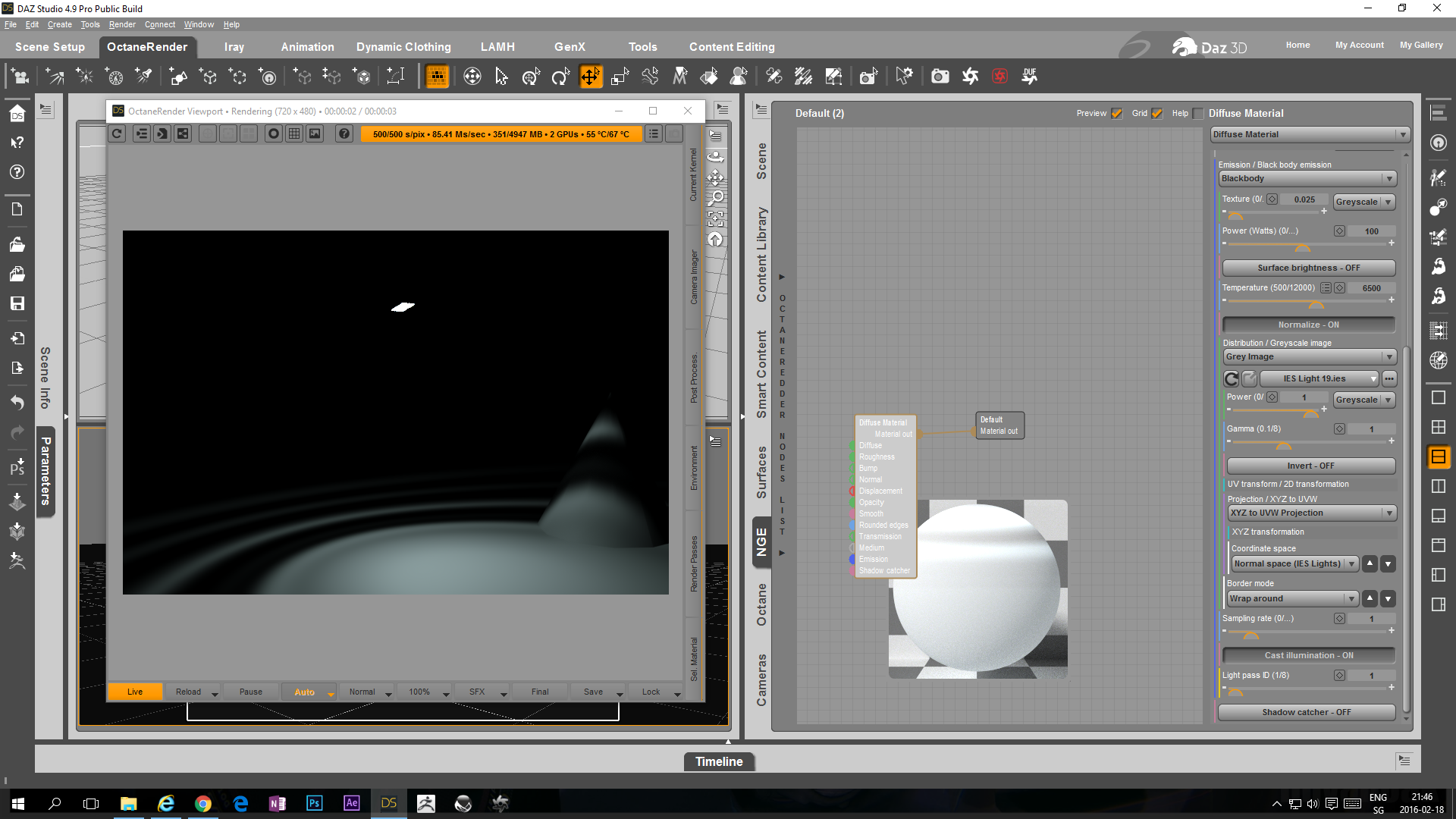

004B change the projection mode of the IES image in the distribution channel to XYZ to UVW Projection

As Coordinate Space select "Normal Space (IES Lights)"

004B XYZ to UVW Projection.png


Now you can point the green normal y axis of the light emitting plane in the direction you want the IES light pattern to be cast.


- - -

Alternatively

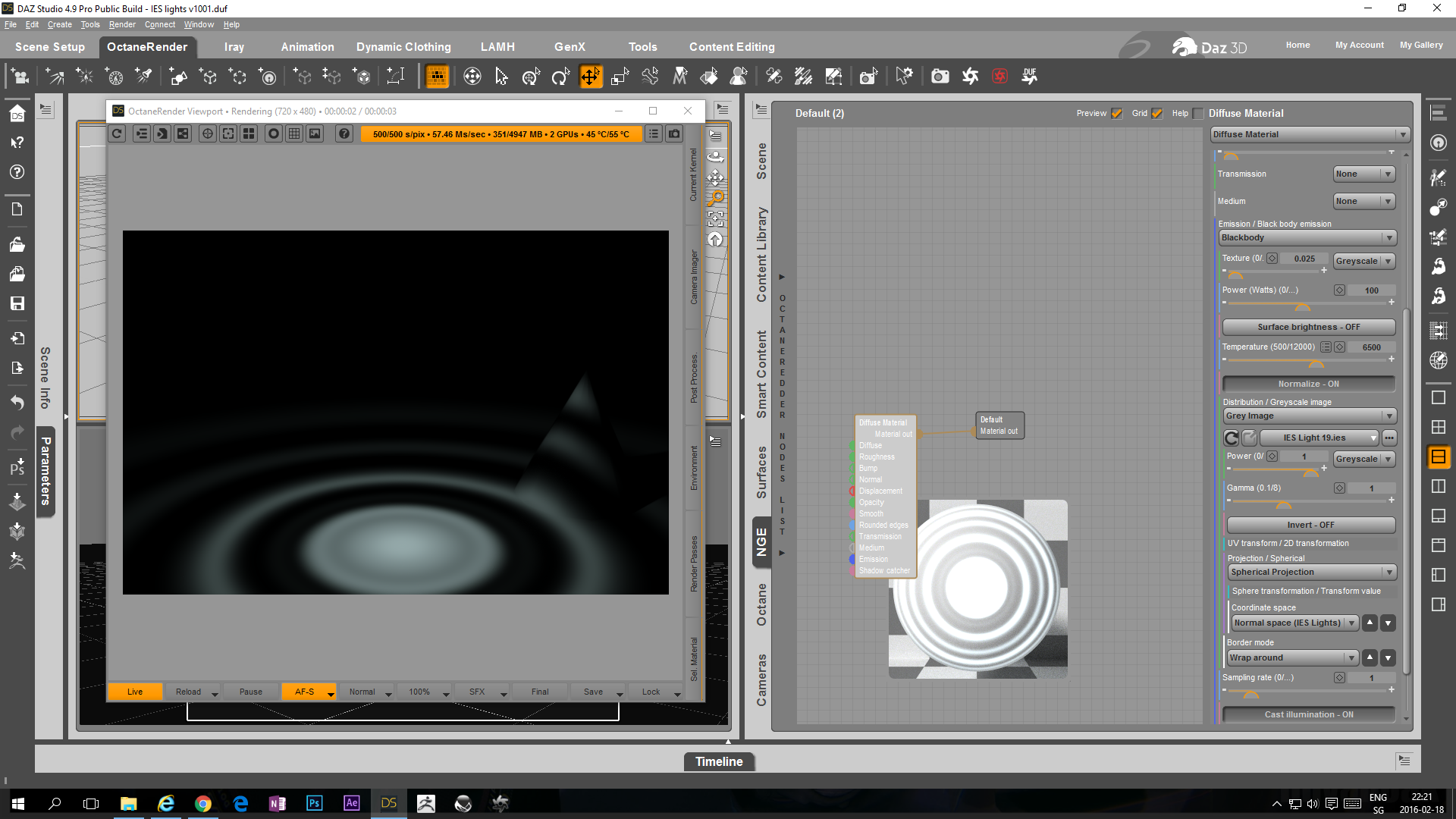

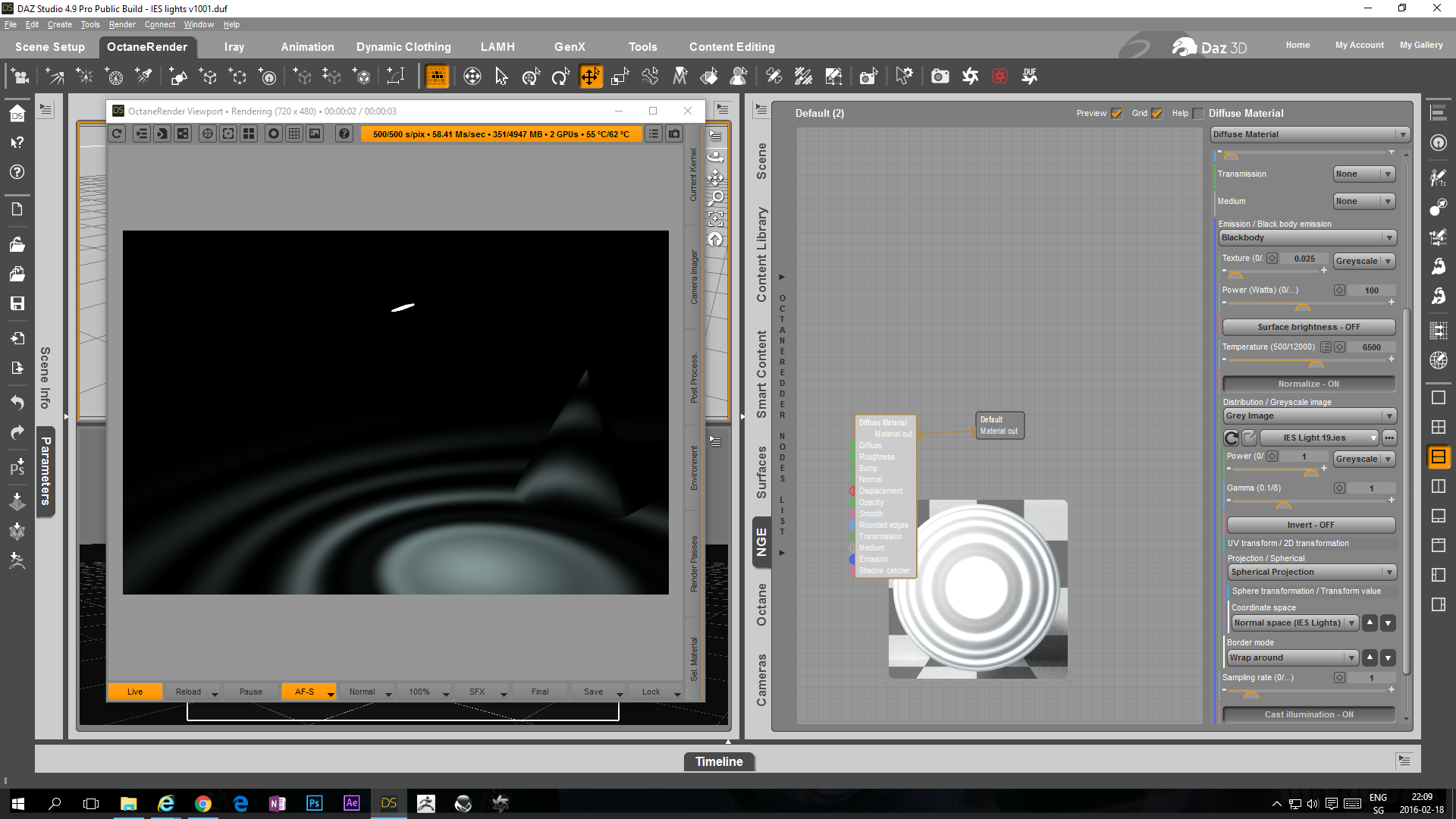

004C change the projection mode of the IES image in the distribution channel to Spherical Projection

As Coordinate Space select "Normal Space (IES Lights)"

004C Spherical Projection.png


- - -



For the sake of it have a look at the pattern with the light emitting plane normal facing down.

Mesh UV Projection.png
Mesh UV Projection


Spherical Projection.png
Spherical Projection


XYZ to UVW Projection.png
XYZ to UVW Projection


Perspective Projection.png
Perspective Projection


-> Spherical Projection can be used to get the same result as Mesh UV Projection.


I guess it is also a matter of preference or creative choice which projection mode you prefer for the effect you want to achieve.


- - -

Also compare:

Projection modes

https://docs.otoy.com/#51Texturing%20Wi ... on%20Nodes

Mesh emitters

https://docs.otoy.com/#51Mesh%20Emitters

- - -

Added the test scene in .duf and .orbx format in the .zip

- - -

Special thanks to Vinz who created, updated and shared the IES presets included in the OctaneRender plugin for DAZ Studio.

originally posted in 2011:
viewtopic.php?f=9&t=6157&start=10#p52161

- - -
Attachments
IES lights v1001.zip
test scene in .duf and .orbx format
(38.71 KiB) Downloaded 450 times
Last edited by linvanchene on Tue Mar 01, 2016 2:56 pm, edited 1 time in total.
Win 10 Pro 64bit | Rendering: 2 x Asus GTX 1080 Ti FE | Display: Asus GTX 1080 STRIX A8G | Intel Core i7 5820K | ASUS X99-E WS| 64 GB RAM
FAQ: OctaneRender for DAZ Studio - FAQ link collection
User avatar
linvanchene
Licensed Customer
Licensed Customer

Posts: 768
Joined: Mon Mar 25, 2013 10:58 pm
Location: Switzerland

Re: How do I create IES light?

Postby beat578 » Tue Feb 23, 2016 10:32 am

beat578 Tue Feb 23, 2016 10:32 am
Linvanchene: THANK YOU SO MUCH. No finally I understood the IES Settings!
Gonna try that soon.
beat578
Licensed Customer
Licensed Customer

Posts: 40
Joined: Wed Jan 23, 2013 5:56 pm

Re: How do I create IES light?

Postby gaazsi » Fri Feb 26, 2016 8:28 pm

gaazsi Fri Feb 26, 2016 8:28 pm
maybe i should stick on this thread :)

i asked that question to liva already and not even he got an easy answer, but maybe someone else knows... :)

has someone ever tried to "copy" the standard 3dlight conelights in octane? to make it look like in those old but gold 3dlight standard renders? i tried alot but i never got it even close... no idea how to get shadows that sharp and so on...
anyone can provide some hints or adjustments maybe? :) my trial lights have been made from a cone object
gaazsi
Licensed Customer
Licensed Customer

Posts: 84
Joined: Mon Jul 07, 2014 10:06 am

Re: How do I create IES light?

Postby morphious2013 » Thu Apr 14, 2016 8:26 pm

morphious2013 Thu Apr 14, 2016 8:26 pm
Revisited. Should I not be able to "see" the light rays? I only see the surface the light is striking. ???
Gateway i5 3.2ghz, 16g RAM, GTX 690 4GB VRAM, Windows 10 64bit, Poser Pro 11, DAZ Studio Pro 4.9, Daz Octane Plugin V2, Poser Octane Plugin V2
User avatar
morphious2013
Licensed Customer
Licensed Customer

Posts: 388
Joined: Sat Apr 20, 2013 1:22 pm

Re: How do I create IES light?

Postby swipswap » Thu Apr 14, 2016 8:45 pm

swipswap Thu Apr 14, 2016 8:45 pm
the light needs to be scattered by a medium. if you shine the light through a specular material and attach a medium node, you should be able to achieve rays
in the pictures below i use a primitive cube to serve as fog to scatter the light
