live viewer and picture viewer rendering different results

[sparkworld]

Hello,

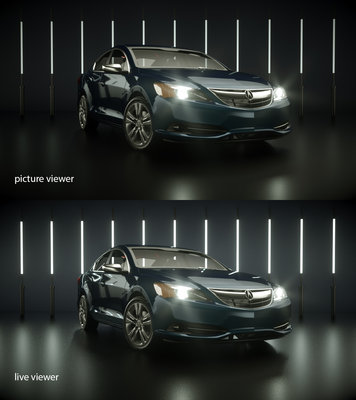

I am running into this issue randomly as I work with Octane. In some scene files it seems that I am getting a different result between the picture viewer and the live viewer. I'll attach the different renders, any help is appreciated.

[aoktar]

what about your save image format and color profile? Also Renderbuffer type in render settings?

[sparkworld]

Hmm yea I figured it must be something to do with color profile as the viewport is doing the same result as picture viewer. Frame buffer is set to 8 bit buffer. Color profile is sRGB. Linear workflow is checked on and input color profile is linear. Final render is being saved as a 8 bit png.

[aoktar]

is your light sources object or arealights? I see glows are different.

[sparkworld]

The neon lights are octane blackbody emission materials with a color in the distribution channel. Using HDR light studio for lighting. No area lights.

[sparkworld]

Ok so after some further testing, it doesn't seem to be color profile or render buffer settings. When I turn off all geometry but car and the HDR I get accurate renders between picture viewer and live viewer. Once I turn on the floor, wall and neon lights geometry I get the difference in results in the renders.

[sparkworld]

Ok after further troubleshooting, it came down to the cloner object and the render instances checkbox. Once I turned it on the render was the same.

[aoktar]

Can you give me the scene without car to explain what's wrong.
There is a issue for emissive materials. This works with some normalization over attached surfaces. If you have not a objecttag, all objects will collected to a single mesh. This causes some different illumination on different amount objects. But if you use a objecttag for this objects, every object will exported as indivual with some tranformation node. This provides exact illuminations as arealights

[aoktar]

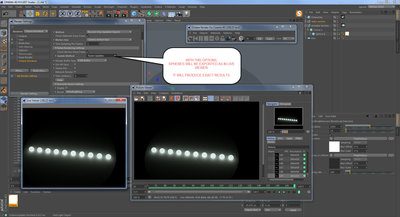

ok, solution is that:

choice method: Resend only updated objects
and
Update method: faster updates

This combination is exactly like as Live Viewer(interactive mode)

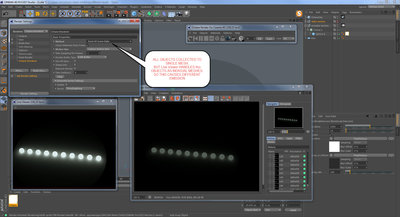

if you leave the "update method" as faster rendering, all objects in a same object no. They are collected to a single mesh in rendering. This causes different results.

I THINK that's time to retire the "faster renders" update method

[cleanerxx]

thanks for explaining! i´ve been wondering about that myself.
