Hello,

I was wondering if anyone had created a functional workflow for Rhino OS X. Any time I try to export to obj from rhino I end up with odd things happening in Octane (such as only every other triangle showing up or surfaces getting randomly stretched to specific points as seen in the images below). Any advice is hugely appreciated.

Thanks,
Mike
Attachments

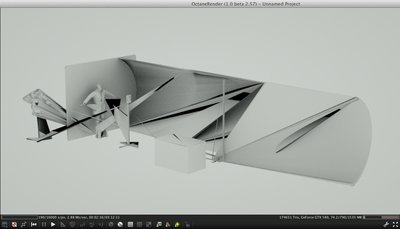

This is what it looks like when opened in Octane
This is what it looks like when opened in Octane

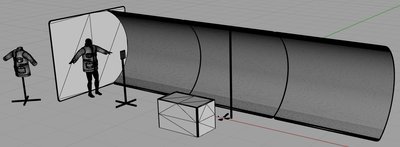

This is what the obj looks like when opened in Rhino OS X
This is what the obj looks like when opened in Rhino OS X

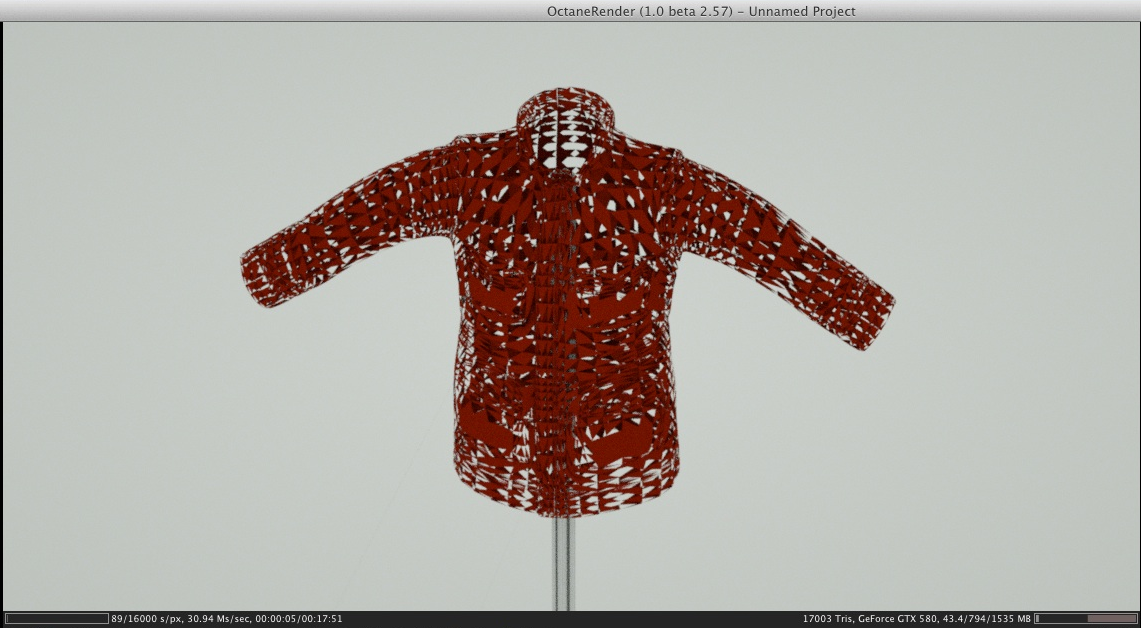

This jacket only half showed up
This jacket only half showed up
Top
User avatar
SamPage
Licensed Customer
Posts: 132
Joined: Mon May 10, 2010 8:56 pm
Location: Burbank, CA

If you round trip that OBJ back into Rhino, what does it look like?
Win 7 64bit | 2x GTX 285 | i7 920 | ASUS P6T Deluxe | 12GB
Top
User avatar
SamPage
Licensed Customer
Posts: 132
Joined: Mon May 10, 2010 8:56 pm
Location: Burbank, CA

Doh, sorry, didn't read your captions. Can you post the exported OBJ?
Win 7 64bit | 2x GTX 285 | i7 920 | ASUS P6T Deluxe | 12GB
Top
User avatar (Default)
mfe
Licensed Customer
Posts: 3
Joined: Tue Mar 20, 2012 10:26 pm

Hello,

Thanks for the quick response. I cannot seem to attach the larger obj file, but here is a copy of just the jacket on the stand and there appear to be similar issues (even though the jacket seems to be working more nicely, the stand is now messed up).

Thank you,
Mike
Attachments

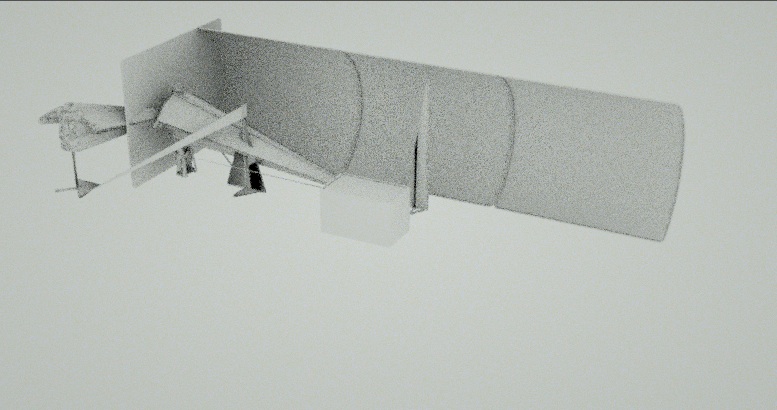

This is what it looks like in Octane (exported with less polygons)
This is what it looks like in Octane (exported with less polygons)
Example 2.obj.zip
Here is the larger scene
(3.19 MiB) Downloaded 248 times
Example 1.obj.zip
Here is the file zipped up
(913.71 KiB) Downloaded 257 times

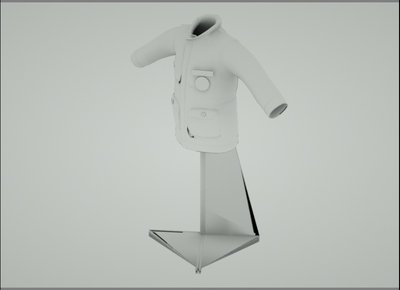

Certain parts of the stand appear to be connecting surfaces where they should not be.
Certain parts of the stand appear to be connecting surfaces where they should not be.
Top
User avatar (Default)
mfe
Licensed Customer
Posts: 3
Joined: Tue Mar 20, 2012 10:26 pm

Here is what I figured out. If you export to obj with the "End-of-line Characters" set to "windows (CLRF)". I am not sure exactly what this means, but I know that when I do this the models turn out perfect. Spread the word far and wide, mac rhino has an unbiased rendering engine! I am very excited to start rendering everything in Octane.

Thanks so much!
Mike Egan
Attachments

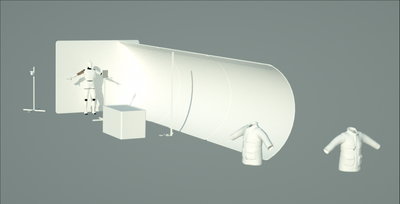

Here is a similar scene to the one that was messing up earlier brought in with the one setting changed
Here is a similar scene to the one that was messing up earlier brought in with the one setting changed

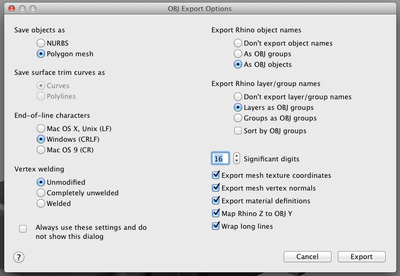

Here are the export settings that worked. You can see that the End-of-line Characters were set to Windows (CLRF)
Here are the export settings that worked. You can see that the End-of-line Characters were set to Windows (CLRF)
