OctaneRender 2023.1.0.3 Solaris19.5.805&20.0.547RC5-obsolete

[BK]

Hi,

Is there any work around for hair render inside Solaris ?
I want to use procedural hair system so I have been trying to get the hair color from image texture loaded with "Attribute from map" passing to Cd.
However, when I put "displayColor" with the node Vertex Color Attribute, plug into albedo, nothing happened, just plain white color show up for the hair.
Everything work perfectly at SOP level just not in Solaris.

Hi hoang_anh_,

Thanks for the post.
It looks like Houdini has a Basis Curves primitive which gives access to optional color and other parameters. The other way to do it is to have primvars with colors along each curve.
Would it be possible to share a sample scene for us to investigate?


cheers

Hi BK,
I attached the sample file in this post.

Cheers.,

Hi hoang_anh_,

Thank you so much for the sample file.

Cheers

[ArtyomPapikyan]

Hi,

Is there any work around for hair render inside Solaris ?
I want to use procedural hair system so I have been trying to get the hair color from image texture loaded with "Attribute from map" passing to Cd.
However, when I put "displayColor" with the node Vertex Color Attribute, plug into albedo, nothing happened, just plain white color show up for the hair.
Everything work perfectly at SOP level just not in Solaris.

Hi hoang_anh_,

Thanks for the post.
It looks like Houdini has a Basis Curves primitive which gives access to optional color and other parameters. The other way to do it is to have primvars with colors along each curve.
Would it be possible to share a sample scene for us to investigate?


cheers

Hi BK,
I attached the sample file in this post.

Cheers.,

Hi!
did I understand correctly that I can't assign my own attributes to the hair except displayColor?

[BK]

Hi ArtyomPapikyan,

Thank you for the post.

Would you please let us know the workflow for assigning your own attributes to the hair?
Can you please attach a sample?

Cheers

[ArtyomPapikyan]

Hi ArtyomPapikyan,

Thank you for the post.

Would you please let us know the workflow for assigning your own attributes to the hair?
Can you please attach a sample?

Cheers

Thanks for the feedback, BK!

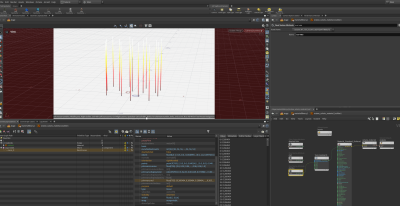

I have attached the file. In it, I'm trying to transfer the attributes ('rnd' and 'curveu') to base color. To do this, I use the Float_Vertex_Attribute node. Also in SOPCREATE, in the import data column, I enabled a checkbox before attributes. Maybe I'm doing something wrong, since I'm just learning solaris, but when I connect displayColor, everything works.
There is another problem. If you enable pack and instance in SOPCREATE in the copytopoints node and put the checkbox in the primitive definition near Create point instances and update the render, then houdini crashes.
I will be glad if you point out to me the mistakes that I make.

Thanks

[BK]

Hi ArtyomPapikyan,

Thank you for the post.

Would you please let us know the workflow for assigning your own attributes to the hair?
Can you please attach a sample?

Cheers

Thanks for the feedback, BK!

I have attached the file. In it, I'm trying to transfer the attributes ('rnd' and 'curveu') to base color. To do this, I use the Float_Vertex_Attribute node. Also in SOPCREATE, in the import data column, I enabled a checkbox before attributes. Maybe I'm doing something wrong, since I'm just learning solaris, but when I connect displayColor, everything works.
There is another problem. If you enable pack and instance in SOPCREATE in the copytopoints node and put the checkbox in the primitive definition near Create point instances and update the render, then houdini crashes.
I will be glad if you point out to me the mistakes that I make.

Thanks

Hi ArtyomPapikyan,

Thank you so much for your patience.

The attributes `rndr` and `curveu` render fine with the OctaneRender for HoudiniSolaris 2025.2.1.1.
Please let us know if this what you are after.

cheers

[ArtyomPapikyan]

Hi ArtyomPapikyan,

Thank you for the post.

Would you please let us know the workflow for assigning your own attributes to the hair?
Can you please attach a sample?

Cheers

Thanks for the feedback, BK!

I have attached the file. In it, I'm trying to transfer the attributes ('rnd' and 'curveu') to base color. To do this, I use the Float_Vertex_Attribute node. Also in SOPCREATE, in the import data column, I enabled a checkbox before attributes. Maybe I'm doing something wrong, since I'm just learning solaris, but when I connect displayColor, everything works.
There is another problem. If you enable pack and instance in SOPCREATE in the copytopoints node and put the checkbox in the primitive definition near Create point instances and update the render, then houdini crashes.
I will be glad if you point out to me the mistakes that I make.

Thanks

Hi ArtyomPapikyan,

Thank you so much for your patience.

The attributes `rndr` and `curveu` render fine with the OctaneRender for HoudiniSolaris 2025.2.1.1.
Please let us know if this what you are after.

cheers

Thanks for the answer, BK! I'm going to upgrade.
