any progress on the Geo Nodes?
I saw some release mentioned GN, but not sure if it is available, usable,
if yes could anyone post a tutorial or anything,
Thanks

Supermicro 4028GR TR2|Intel xeon E5 2697 V3| windows 10| revit 2019 |Titan V+ Quadro GV100+RTX 2080 Ti
jimho
Licensed Customer
Posts: 271
Joined: Tue Aug 21, 2018 10:58 am

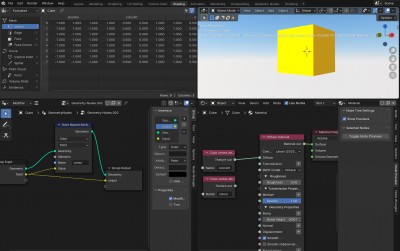

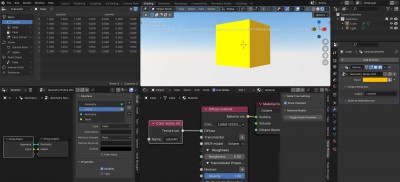

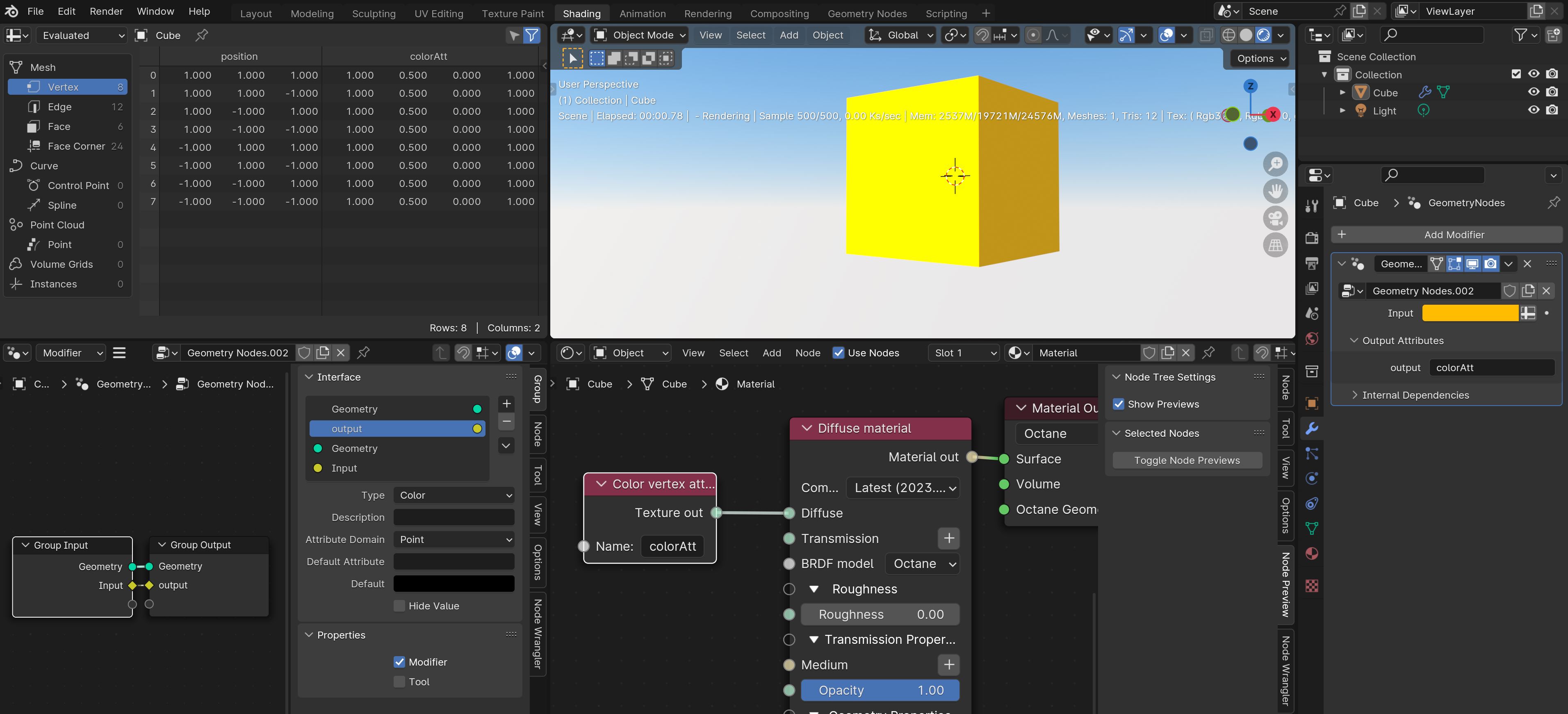

finally find from other posts, the octane node "color vertex attribute" can help to transfer the color attributes from geo node to octane material nodes.
colorAttribute5_ver28_12_A.blend
(1.02 MiB) Downloaded 94 times
though, still there is bug,
when the number of stored attribute is more than 2 or three, the behavior of "Color vertex attribute" become strange:

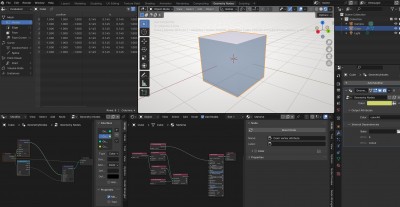

1, when adding first stored color attribute "colour" both the previous good one "colorAtt"(which is from geo node group output) and the new attribute works, which is good.
when add one more stored attribute that is the blue channel (attribute "b") of the "colour", suprisingly the "colorAtt" changed its color, which is not it supposed to be.
though at this time the attribute "b" still works fine.

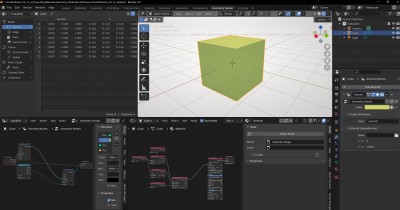

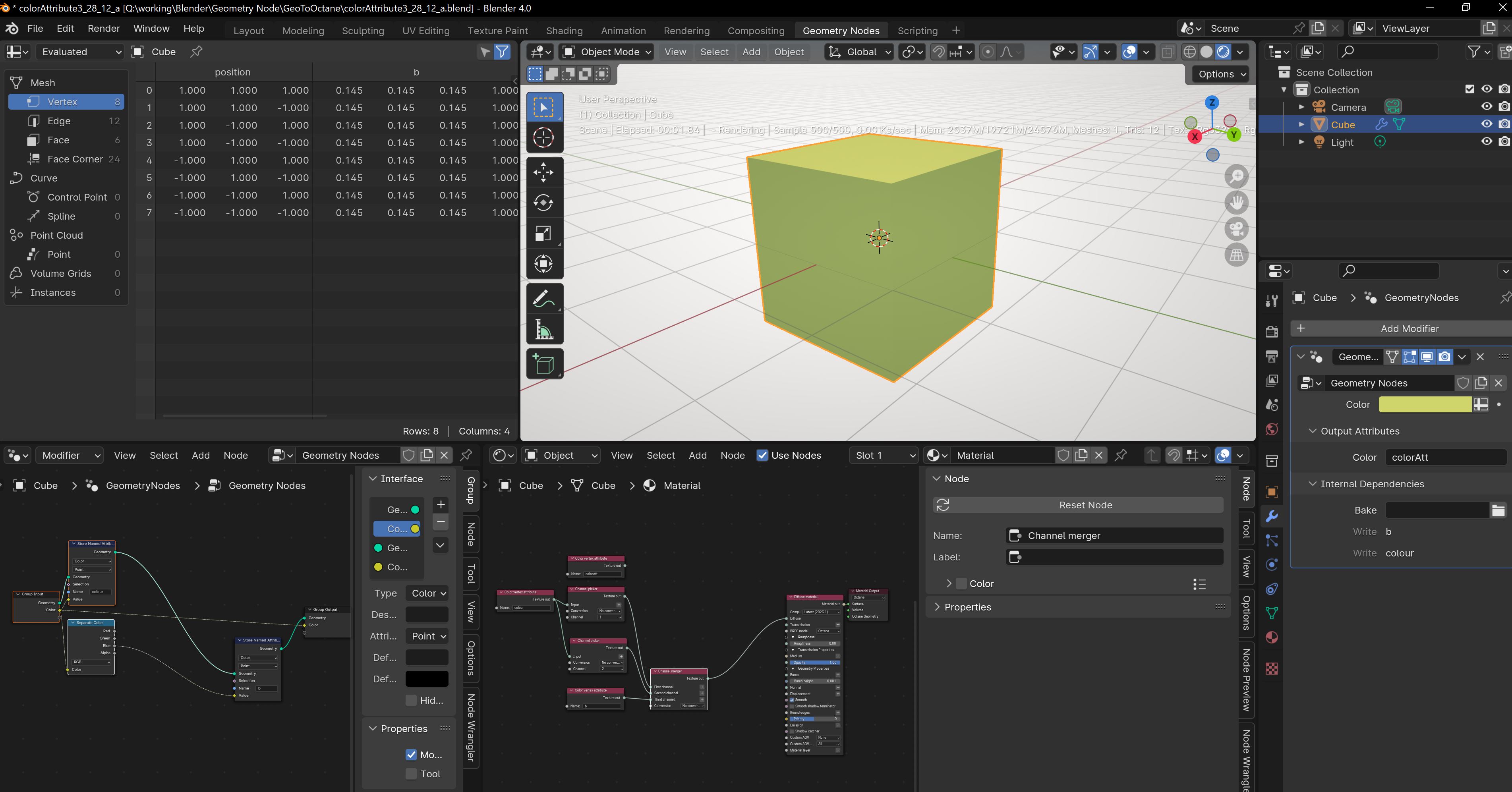

further more I add one more attribute the green channel and the red channel, it seems the "r" and "g" will work as is should be but the "b" does not.
here is the final .blender file:
colorAttribute3_28_12_c.blend
(1.11 MiB) Downloaded 98 times

Supermicro 4028GR TR2|Intel xeon E5 2697 V3| windows 10| revit 2019 |Titan V+ Quadro GV100+RTX 2080 Ti
linograndiotoy
OctaneRender Team
Posts: 1354
Joined: Thu Feb 01, 2018 7:10 pm

That's not a bug but an Octane limitation. Octane shading system can only deal with max 2 vertex color maps per object. Again, it's a limitation that should be solved in the engine, not a specific Blender issue.
jimho
Licensed Customer
Posts: 271
Joined: Tue Aug 21, 2018 10:58 am

Since geometry node is so powerful, using octane's vertex color attribute to pass by all kinds of parameters is obviously too limited.
I am curious is there a more common way to transfer geonodes attributes to octane?
Is it possible that OSL may play a role?
I am a bit busy these days only after that I may make some tries, but just post this questions now
