Render regions with alpha has white outline

[timAugustine]

I hope this is not out of topic!

I decided to give Fusion 9 a shot. I don't think I need anything more than putting together render passes and color grading them. I'm sure Fusion 9 has those features!

I'd like to know if I'm using correct render settings. I'm unable to get Fusion to get the exr output to look right.

Here's what I've done:

1) Exported a render with these settings

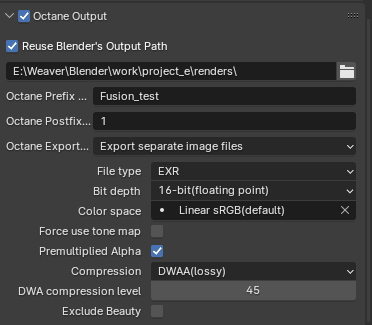

Octane image export setting


2) Within Fusion, imported the exr

3) Connected it to an OCIO Colorspace Node

4) Loaded the config.ocio, which I downloaded from the AgX git repository

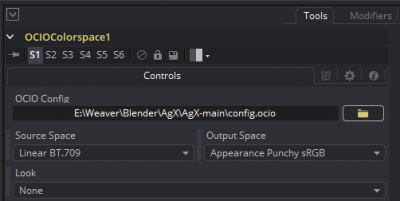

Fusion OCIO config settings

5) Set the Source Space to Linear BT.709 and Output Space to Appearance Punchy SRGB

6) Dragged and dropped the OCIO Colorspace node into the viewer.

Nothing happens when I do this. So it makes me wonder if I'm not exporting the image right (Or I could be doing any of the other steps incorrectly).

Thanks!

[timAugustine]

Thank you SO much. It's working now. Blender octane is still pointing to the original AgX. Is it ok if I leave it there or should it also be pointed to this AgXc?

Thanks again!

[timAugustine]

Thank you, once again! This tool, while it's from 2017, is fantastic (and sort of intuitive).
