How to render camera normals vectors?

[Reality4]

Hi everyone, I'm trying to render world/object normals like I do with the VRaySamplerInfo render element.

Does anyone know how can I do this with Octane in 3DSMax? I see the tangent normals/vertex normals et cetera render elements for Octane, but none of them give me the correct output.

Thanks!

[paride4331]

Hi Reality4,
The Info Channel kernel evaluates scene data and renders the data as color images that you can use in compositing.
Geometric Normals - The vectors perpendicular to the mesh's triangle faces.
Smooth Normals - Shows information on the integrity of the model's geometry in terms of the normals perpendicular to the mesh's smooth underlying surface.
Shading Normals - The interpolated normals used for shading. This does not take into account the object's Bump map. The result is less faceted and smoother than Geometric Normals.
Tangent (Local) Normals - A color shows the Tangent (Local) Normal in tangent space at the position hit by the camera ray.
Z-depth - An image that's shaded based on the distance between the objects in the scene and the position of the rendering camera.
Position - A color-coded image that shows the position of the objects in the scene, often used in compositing to help position 3D-rendered images from different renders.
Texture Coordinates - A color-coded image showing a Gradient map based on the direction of the object’s UV texture coordinates.
Texture Tangent - The first tangent vector. This determines the Normal map distortion's orientation.
Motion Vector - This renders the 2D motion vector in screen space. The X-coordinate shows pixels set in motion to the right (stored in the Red channel), while the Y-coordinate shows pixels in the up motion (stored in the Green channel).
Regards
Paride

[Reality4]

Hi Paride,

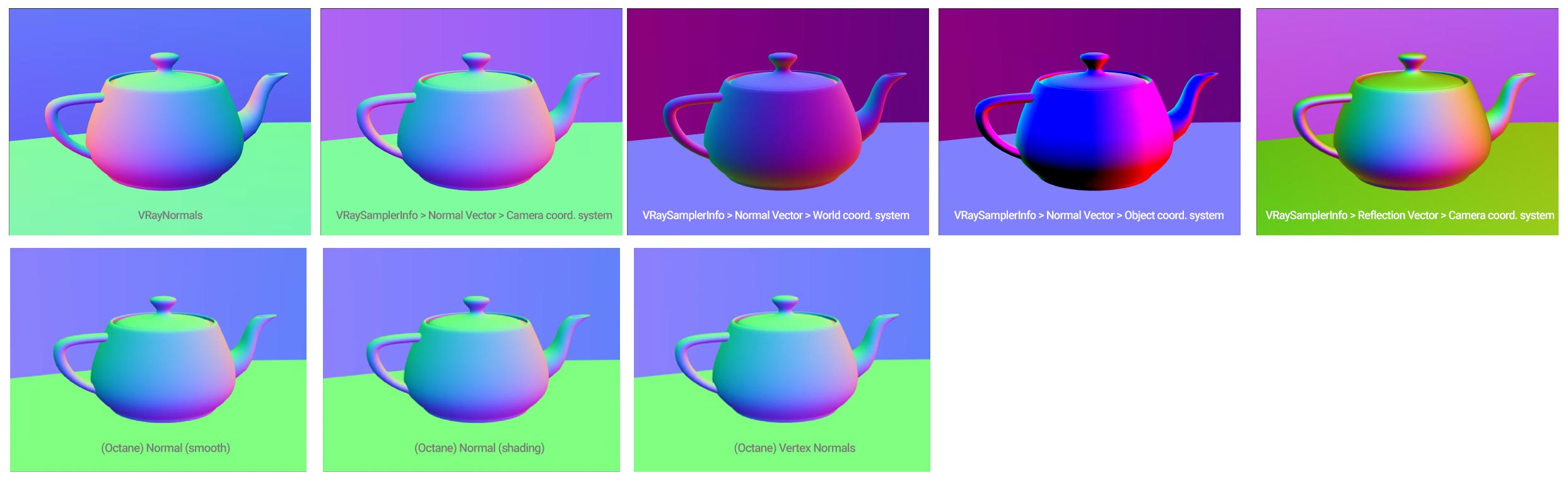

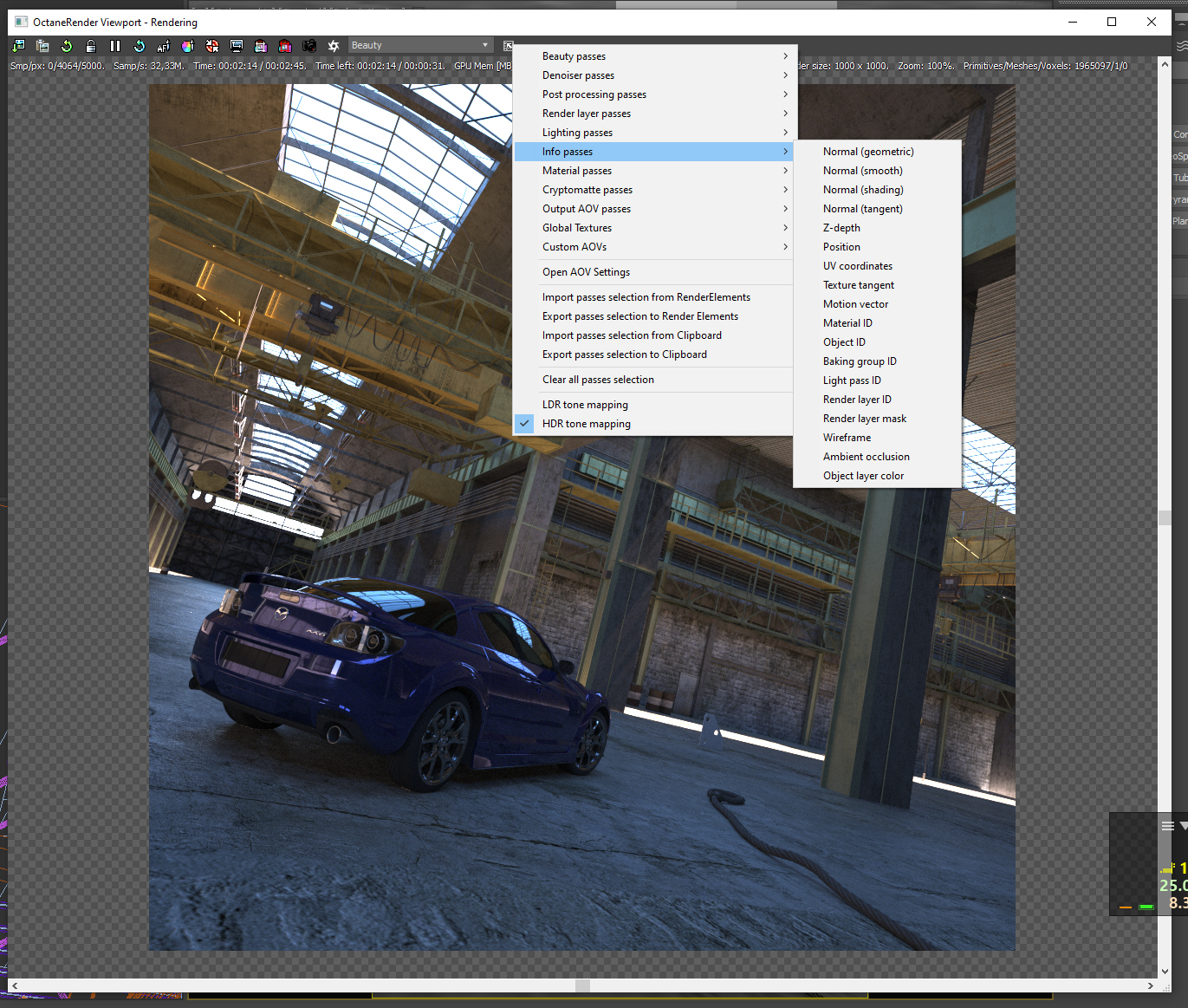

Thanks I'm familiar with these, that's not what I meant. Please take a look at the attached screenshot.

I can only get Octane to output the same type of normals.

But what about e.g. world/object space?

Thanks!

[Reality4]

Or is this ANOTHER one of those very basic features that Octane is missing...?

[paride4331]

Hi Reality4,
About the z orientation, it must be set in your compositing software.

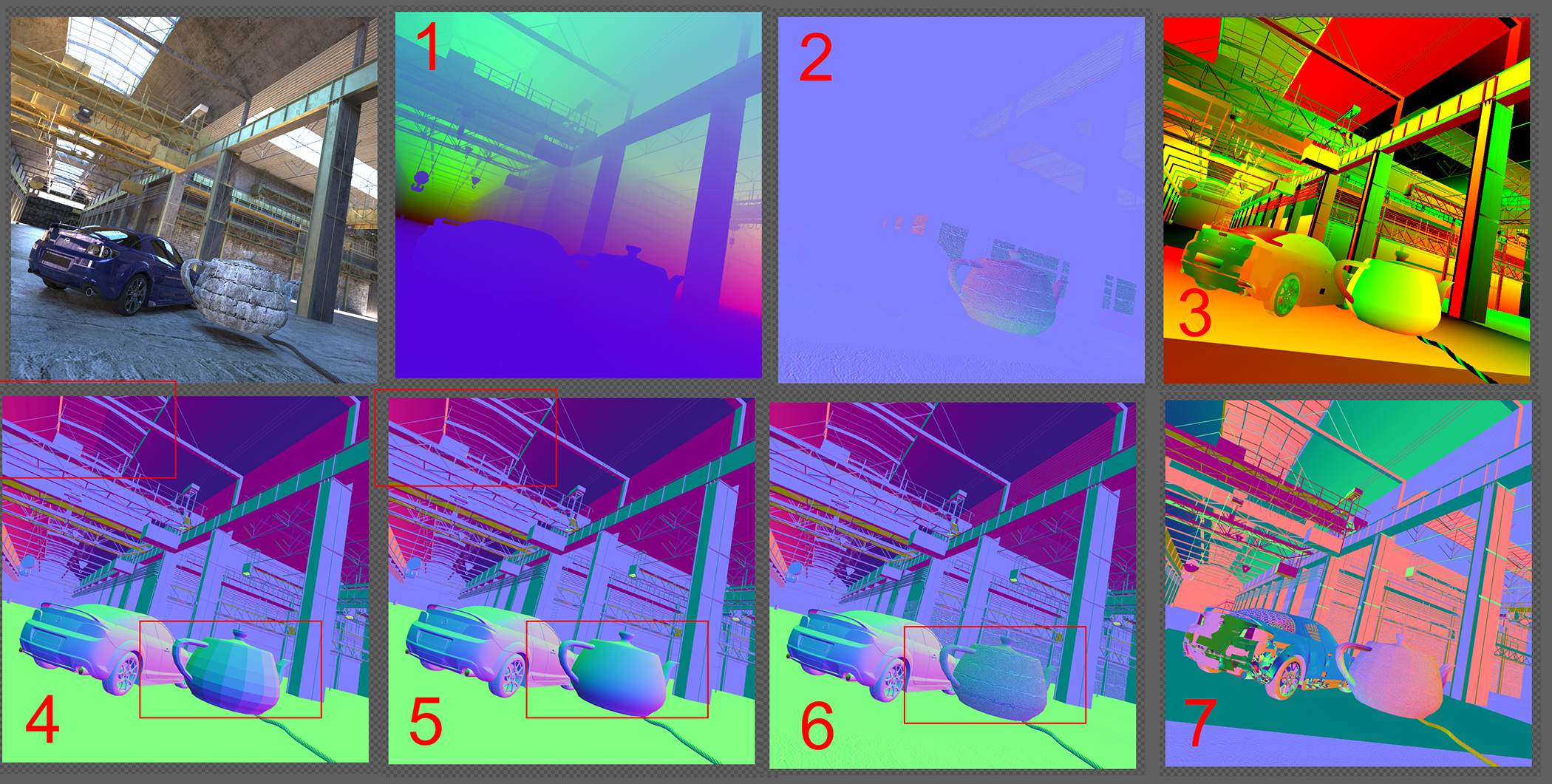

Said that, could you tell me which pass you need but not available?

1) Position - A color-coded image that shows the position of the objects in the scene.
2) Tangent (Local) Normals - A color shows the Tangent (Local) Normal in tangent space at the position hit by the camera ray.
3) Texture Coordinates - A color-coded image showing a Gradient map based on the direction of the object’s UV texture coordinates.
4) Geometric Normals - The vectors perpendicular to the mesh's triangle faces.
5) Smooth Normals - Shows information on the integrity of the model's geometry in terms of the normals perpendicular to the mesh's smooth underlying surface.
6) Shading Normals - The interpolated normals used for shading. This does not take into account the object's Bump map. The result is less faceted and smoother than Geometric Normals.
7) Texture Tangent - The first tangent vector. This determines the Normal map distortion's orientation.

[funk]

You can do this with a normal texture and global texture AOVs. The normal (and position) texture have a coordinate system option, so you can choose camera, world or object.

I don't use 3ds max, but see this post for an ORBX example using the position texture. You can replace this with a normal texture: viewtopic.php?p=423563#p423563
