I am using an Octane Material with its Texture Tag's Projection set to Flat. Is there a way to limit the projection to the Front side of the object?
- Flat Projection
Limiting Flat Projection to One Side
Moderators: ChrisHekman, aoktar
-
blastframe
- Posts: 178
- Joined: Wed May 21, 2014 6:01 am
- Location: Los Angeles, CA USA
Hello,
I am using an Octane Material with its Texture Tag's Projection set to Flat. Is there a way to limit the projection to the Front side of the object?
Thank you!
I am using an Octane Material with its Texture Tag's Projection set to Flat. Is there a way to limit the projection to the Front side of the object?
Thank you!
You can assign different forms of same texture to back/front side. Side node with mix texture
Octane For Cinema 4D developer / 3d generalist
3930k / 16gb / 780ti + 1070/1080 / psu 1600w / numerous hw
3930k / 16gb / 780ti + 1070/1080 / psu 1600w / numerous hw
-
blastframe
- Posts: 178
- Joined: Wed May 21, 2014 6:01 am
- Location: Los Angeles, CA USA

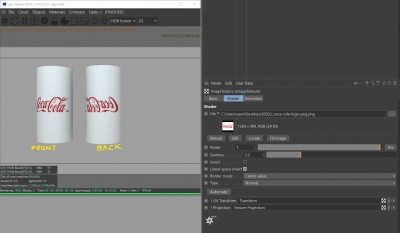

I tried this with a plane and it worked, but I could not get it to work with a cylinder. This method is projecting to the opposite side of the polygon face rather than the object.aoktar wrote:You can assign different forms of same texture to back/front side. Side node with mix texture
- Mix Material

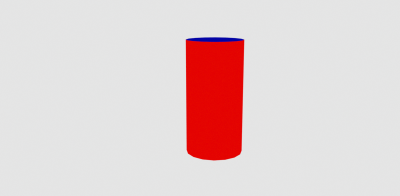

- Result

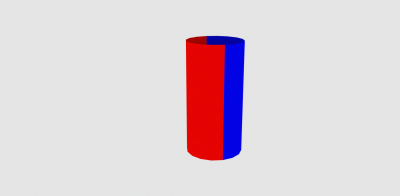

- Desired Result
Can it be projected to the opposite side of the object with flat projection? Thank you.
* note: With native C4D texture tags, the Flat projection can be split between two materials by rotating the Flat plane's coordinates by 180 degrees.
Hi,

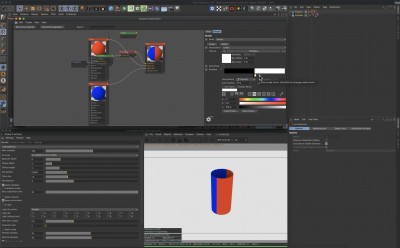

here is a different approach, instead of using a Side node, I have used an Octane Gradient node, but with Black and white handles very close to the middle:
ciao Beppe
here is a different approach, instead of using a Side node, I have used an Octane Gradient node, but with Black and white handles very close to the middle:
-
blastframe
- Posts: 178
- Joined: Wed May 21, 2014 6:01 am
- Location: Los Angeles, CA USA
Thank you for the idea, Beppe.
Hi,
is there a way to use it without Mix and only one texture? I use material stacking without Compositing /Layer Mat and my flat projected decal material appears on both front and back. Using seletion set kills my material with gradient below. So is there some kind of backface culling somewhere in Octane possible?
is there a way to use it without Mix and only one texture? I use material stacking without Compositing /Layer Mat and my flat projected decal material appears on both front and back. Using seletion set kills my material with gradient below. So is there some kind of backface culling somewhere in Octane possible?
3080ti
Hi ceen,
please have a look at this solution with Triplanar mapping node, it should work also with stacked materials:
viewtopic.php?f=30&t=80421&p=415545&hil ... ar#p415545
ciao,
Beppe
please have a look at this solution with Triplanar mapping node, it should work also with stacked materials:
viewtopic.php?f=30&t=80421&p=415545&hil ... ar#p415545
ciao,
Beppe
Hi Beppe Thank you!
Yes I was thinking about it, too. But while it is working ok it is a very long tweaking of values until a decal is placed correctly. And it doesn't really follow scaling of objects right? Backface Culling is really important. Please but it forward to the devs...it can't be sooo hard to implement it into a material isn't it?
Yes I was thinking about it, too. But while it is working ok it is a very long tweaking of values until a decal is placed correctly. And it doesn't really follow scaling of objects right? Backface Culling is really important. Please but it forward to the devs...it can't be sooo hard to implement it into a material isn't it?
3080ti
