I'm having trouble properly rendering a custom AOV pass. I've added an octane tag to a cube and set it as Custom AOV 2 and set it to capture its reflections.
The Live Viewer shows the reflection in the Cstm2 channel and when I render the Picture Viewer shows the reflection in the Custom AOV 2 single pass. However, when I import the rendered file it is pure black.

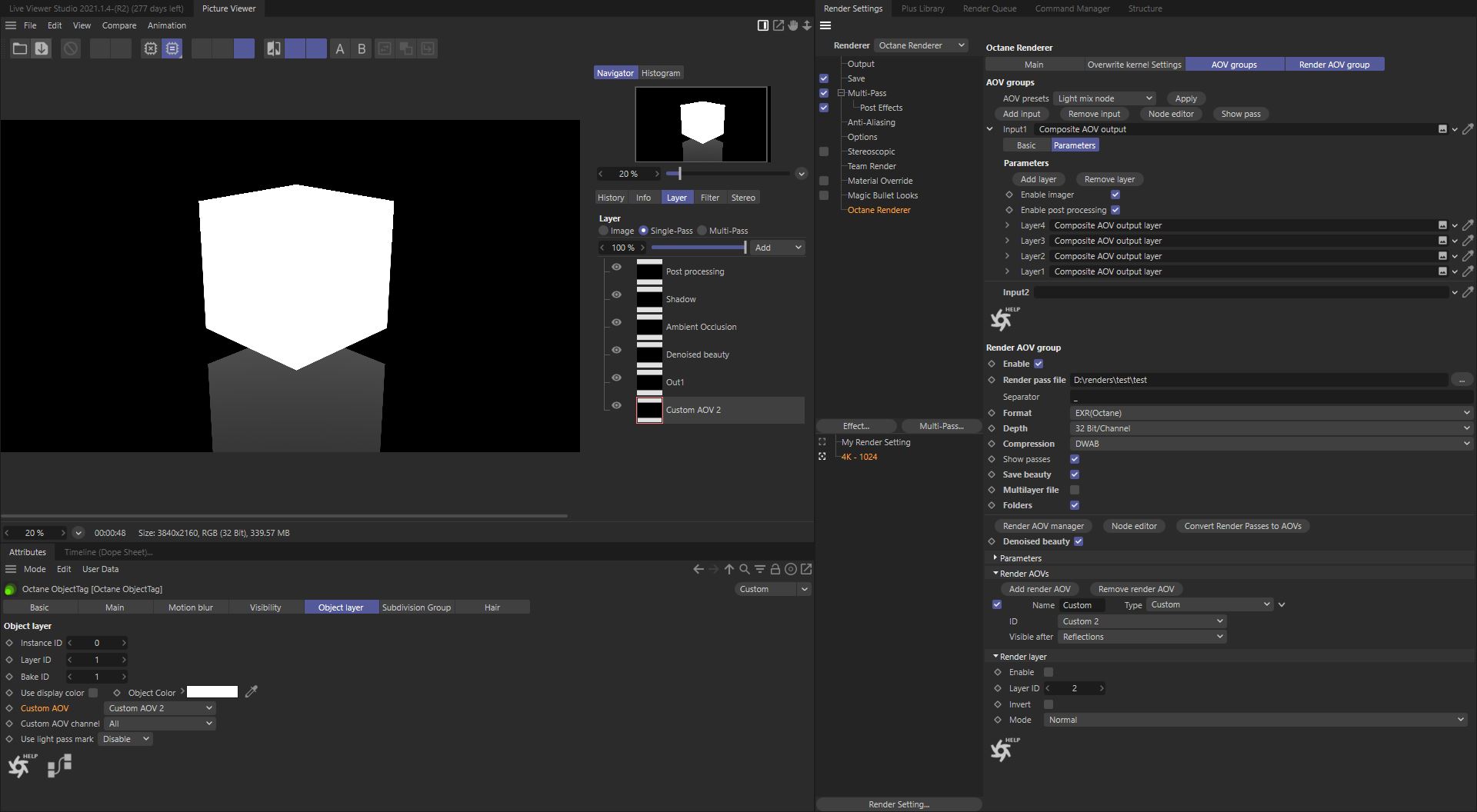

Am I missing a key step in connecting the AOV to the rendered output? I have attached a screenshot of tag, picture viewer and the render settings. Below is the scene file. Thanks!
https://www.dropbox.com/s/8wjehya2sb89w ... 2.c4d?dl=0
Custom AOV renders black (good in picture & live viewers)
Moderators: ChrisHekman, aoktar
Hi,

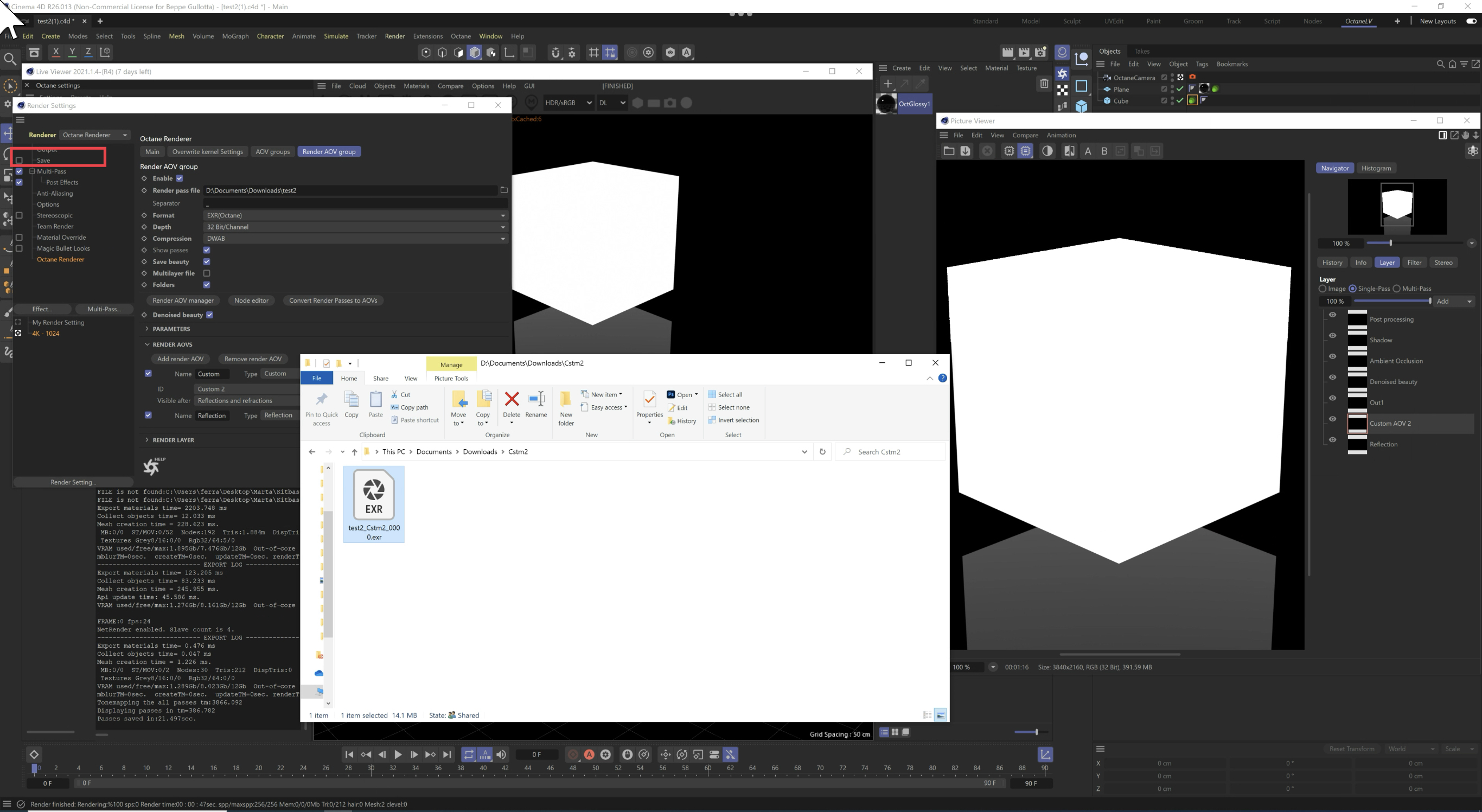

everything is working as expected here: But please make sure to have installed the latest 2021.1.4-R4 version, or 2021.1.4-R3:
viewtopic.php?f=85&t=79494
And please avoid to use the C4D Save option in Render settings, and use only the c4doctane saving option, when you work in multi pass.
ciao,
Beppe
everything is working as expected here: But please make sure to have installed the latest 2021.1.4-R4 version, or 2021.1.4-R3:
viewtopic.php?f=85&t=79494
And please avoid to use the C4D Save option in Render settings, and use only the c4doctane saving option, when you work in multi pass.
ciao,
Beppe
