Displacement color problem

[3D3R]

Hi,

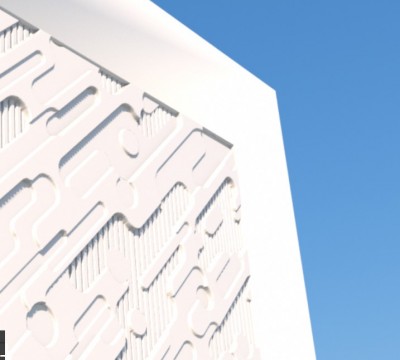

i have a problem with a repetitive pattern displacement. The border is black.

Any help how to solve this?

Thanks,
Stefan

R23.110 / Octane 2020.2 - R3

[bepeg4d]

Hi,

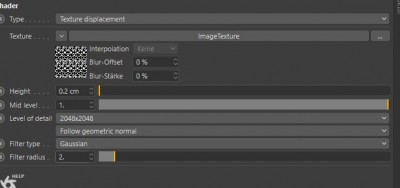

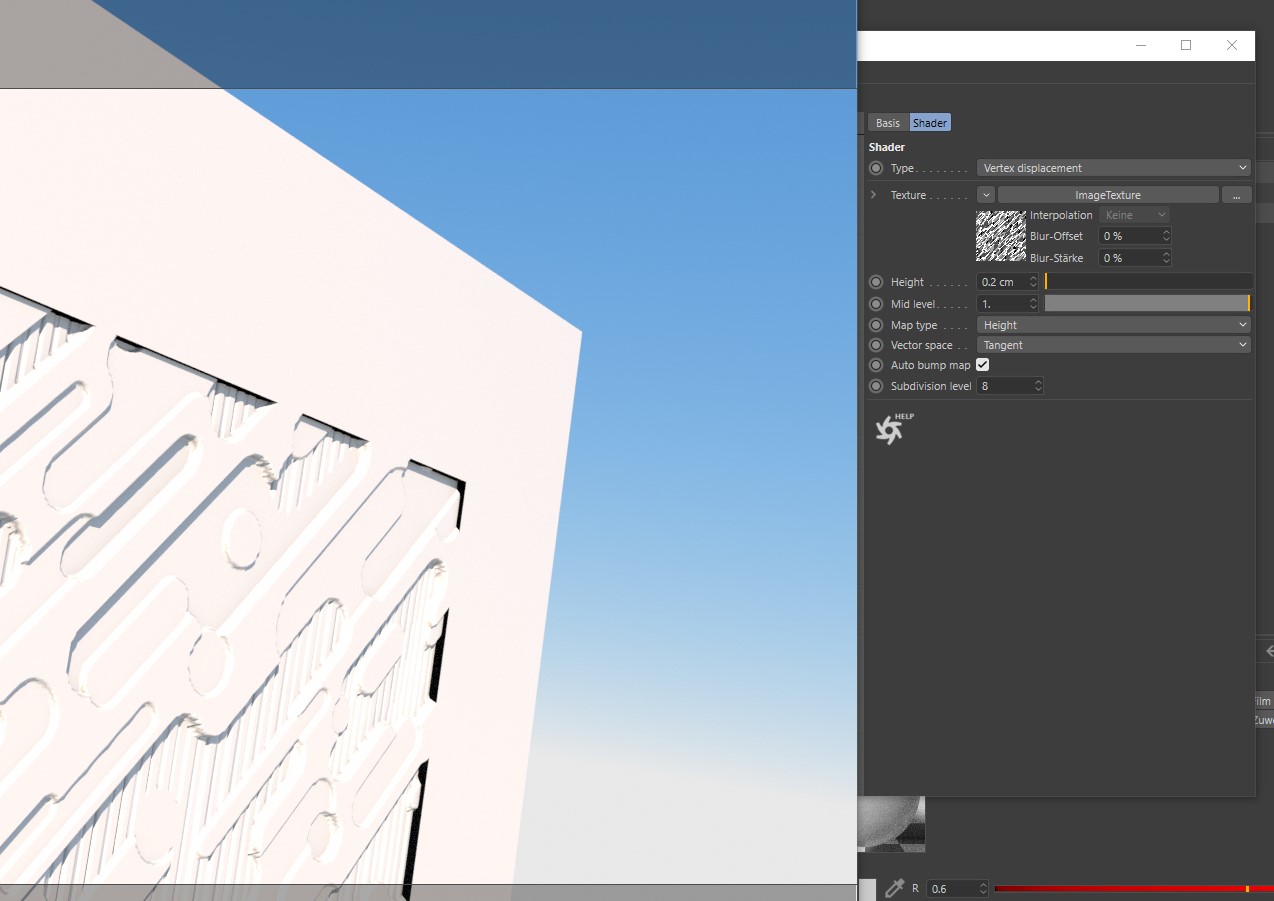

try to switch to Vertex Displacement:
https://docs.otoy.com/cinema4d/OSLVerte ... ement.html

ciao Beppe

[3D3R]

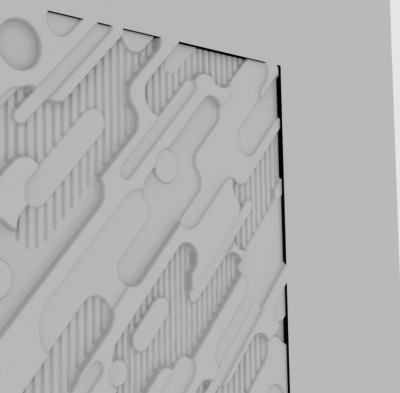

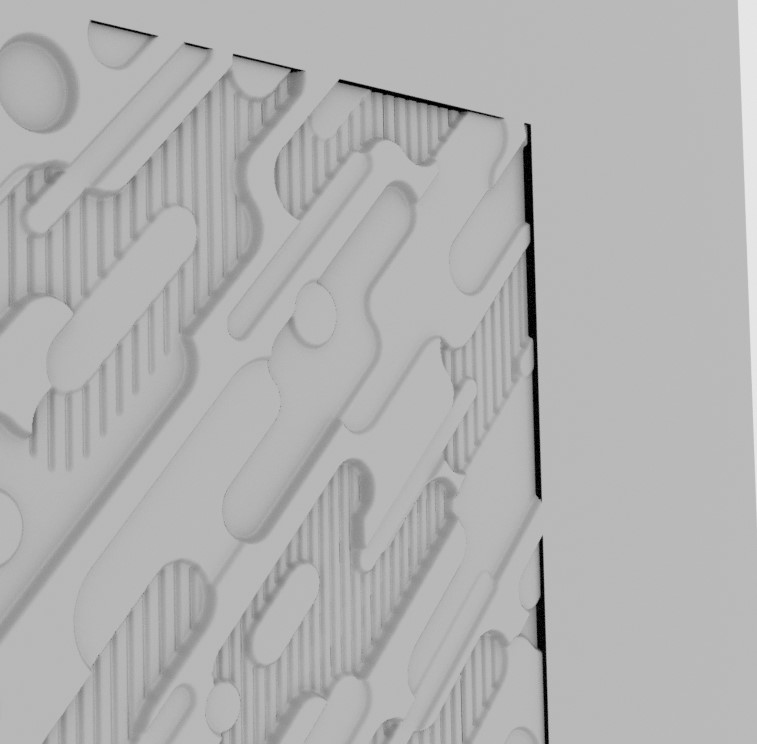

seems like the same result with the borders.

[3D3R]

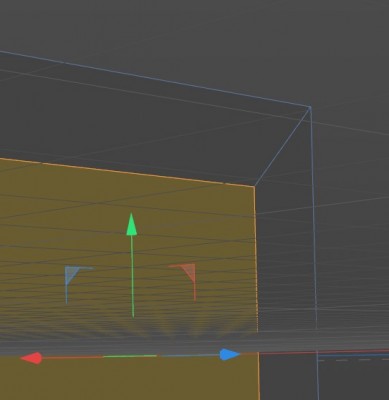

i solved it for now by extruding the polygon inward. it´s not very nice, but you can´t see the black border anymore.

[bepeg4d]

Hi,

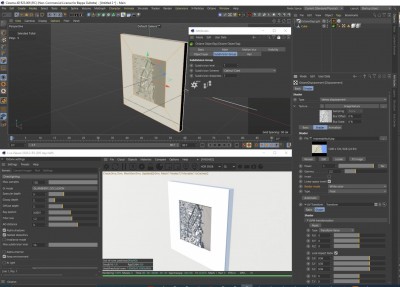

try these steps:
- add to the polygon selection also the four polygons of the border.
- add an Octane Object tag with high subdivision on both level and sharpness.
- use the Displacement in Vertex mode, with 0 subdivisions.
- set the Border Mode in the ImageTexture node used for Displacement to White.
- use the UV Transform to reduce the scale until it matches the borders.

ciao Beppe

[3D3R]

ok, thanks!
