Cinema4D version 2020.2-R3 (Obsolete stable) 19.02.2021

[aoktar]

Hi all,
This is the latest stable build based on stable 2020.2 SDK. Any feedback will be much appreciated. Enjoy it!

Make sure to use a NVIDIA Studio driver with version at least 456.38 on Windows. No driver updates are required for macOS 10.13 (CUDA).

This version supports the new NVIDIA Ampere architecture on Windows and Linux. Kepler cards with compute model lower than 3.5 are just supported on macOS.

For CORE improvements please check the following Standalone link.
This is the matching Standalone: OctaneRender™ 2020.2.

Changes of 2020.2-R3 build
- fix: Update issue with opengl textures

Changes of 2020.2-R2 build
- fix: priority range
- fix: better management for compare direction
- fix: Easier adding/breaking operation for nodes
- fix: Bring back support for old xparticles versions
- New: Enable/disable update buttons for Geometry/Lights/Camera/Material.
- New: Global hold updates command added. Which is for disabling the update controls for all content

Changes of 2020.2 build
- Core changes for AOV and composite texture structures, your old AOV/composite_texture setups will be broken. You can fix these by manually.
- Improvements on opengl/material preview functionality for faster editing with no lags.
- Light Manager(WIP), not completed yet. I kept it for preview purposes, light linking and more will be added on next builds. Access: shift+C, type "Octane light manager".
- Image sequence saving dialog for making faster previews from Live Viewer. LV menu -> File/Export to/Save animation sequence.
- Fix: better embedded gui functionality in node editor.
- Fix for SurfaceSpread object consideration.
- Several minor performance adjustments.
- Fix for some missing help links.


IN ANY CRASH CASE PLEASE DO THESE!!!
If you see CUDA errors follow 1,2,3,4.
1- Use NVIDIA STUDIO drivers, not Game Ready versions. If you have stability issues try different drivers, some of them could cause instability issues. Make a clean install while doing this to be sure previous files completely removed.
2- Check GPU frequency. Overclocking would cause instability issues
3- Check PSU. Insufficient power output would cause instability issues
4- Check the free amount of GPU's VRAM and system's RAM while working. Low VRAM will/may cause CUDA errors. Be aware of some generator objects will have different triangle count in Picture Viewer than Live Viewer. It’s like “editor/render” parameter. Just try to use the same value. Also try to optimize your scene for polygon count, even use smaller images. Try to use Octane texture nodes rather than using C4D texture/shaders.
Alternatively, use V4 and Out-of-core(OOC) function. Increase RAM for OOC and It should not exceed physical RAM amount. Check TDR value and increase if it's necessary.
5- If you see C4D crashes without CUDA errors, then send us bugreport.zip, screen-shots and video capture to show process and crash moment. Also please send us a sample scene in a format of C4D or ORBX to let us investigate and test it. Alternatively, try to delete/hide some objects/materials until crash gone away. If you find what's causing crashes, send us a sample scene to let us for investigating and bring a fix or solution.
Thanks for helping the development by your feedbacks! It’s impossible to quickly catch every case without user feedbacks! It’s the same procedure as other companies do like Maxon/etc...



WINDOWS ENTERPRISE BUILD (R15-23)
https://render.otoy.com/customerdownloa ... R3-win.rar

WINDOWS SUBSCRIPTION(Studio) BUILD (R15-23)
https://render.otoy.com/customerdownloa ... R3-win.rar

OSX ENTERPRISE BUILD (R15-23)
https://render.otoy.com/customerdownloa ... Macosx.zip

OSX SUBSCRIPTION(Studio) BUILD (R15-23)
https://render.otoy.com/customerdownloa ... Macosx.zip


Requirements:
-You'll need to update your Cinema 4D to latest versions(R16.050, R17.053, R18.057, R19.053, R20.057, R21.115, S22.118, R23.110). Otherwise, the plugin will not work and not appear in menus.
-Internet connection for activation, be sure that C4D and Octane will not be blocked by the firewall and any antivirus software.
-Nvidia drivers at least Nvidia Studio Drivers(minimum 456.38) and be careful with latest Game Ready drivers which can cause cuda errors. Stay with stable one for you.
-Cuda 9.1 driver for OSX.


ONLINE HELP MANUAL
Use embedded help buttons from Octane nodes and windows

To use OFFLINE version of manual from plugin
Download following package and extract to Cinema4D/plugins/c4doctane/manual
https://render.otoy.com/plugindownloads ... p-html.zip

V3 SAMPLE SCENES SET(make a request if you need any specific sample)
https://render.otoy.com/plugindownloads ... scenes.rar

See this topic for some partial samples: viewtopic.php?f=85&t=53989

CINEMA 4D TUTORIALS SECTION: viewforum.php?f=87

CHANGE LOG: https://docs.otoy.com/#60Change%20log


Installation
First, remove all octane related stuff from plugins and the main folder of Cinema4D.

Extract all files to Cinema4D\plugins\c4dOctane directory.
Also, download manual.zip and extract to c4dOctane directory if it's not available in place.

There are a few files for each one is for different Cinema4D version. Remove all except the file is for your version.
Ex. if you have Cinema4D R18.0, keep only "c4dOctane-r18.cdl64" and delete c4dOctane-r17.cdl64, c4dOctane-r16.cdl64, c4dOctane-r15.cdl64, etc..

Cinema 4D Release 15: c4dOctane-r15.cdl64 or c4doctane_R15_demo.dylib
Cinema 4D Release 16: c4dOctane-r16.cdl64 or c4doctane_R16_demo.dylib
Cinema 4D Release 17: c4dOctane-r17.cdl64 or c4doctane_R17_demo.dylib
Cinema 4D Release 18: c4dOctane-r18.cdl64 or c4doctane_R18_demo.dylib
Cinema 4D Release 19: c4dOctane-r19.cdl64 or c4doctane_R19_demo.dylib
Cinema 4D Release 20: c4dOctane-r20.xdl64 or c4doctane_R20_demo.xlib
Cinema 4D Release 21: c4dOctane-r21.xdl64 or c4doctane_R21_demo.xlib

[Kalua]

Sweet! Thank you, Aoktar!

[pocketcat]

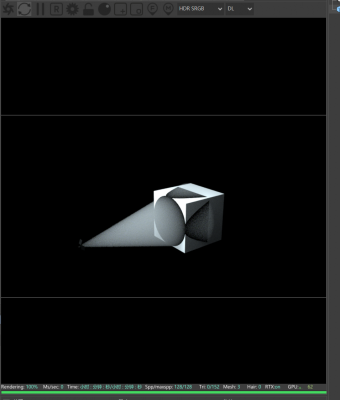

octane spot light bug

[Kalua]

Hi, Aoktar
Small Bug I found until now: every time I close the node editor window, C4d (R 21 and 23) freezes and I must restart it.
Regards,

[aoktar]

Hi, Aoktar
Small Bug I found until now: every time I close the node editor window, C4d (R 21 and 23) freezes and I must restart it.
Regards,

Thanks for reporting! I've fixed, replacing the download links with that!

[iDlart]

before there was a checkmark so that the denoiser would affect the beauty pass.
Where can I find it now?

[aoktar]

before there was a checkmark so that the denoiser would affect the beauty pass.
Where can I find it now?

You cannot use it anymore with sRGB color space.

[SSmolak]

With this version I have lower GPU usage - max 85-90% only. 2080ti NVlink

[thanulee]

Thanks a lot Ahmet!

Can someone pin the features of 2020.2 standalone in the 1st post so we know what is and what isnt added in c4d plugin? Just the core ones, would be really helpful.

Many thanks

[aoktar]

With this version I have lower GPU usage - max 85-90% only. 2080ti NVlink

Please test it enough, all good here! You may have a particular case with a scene or about GPU settings.
