match AC render resolution

[Dingbat]

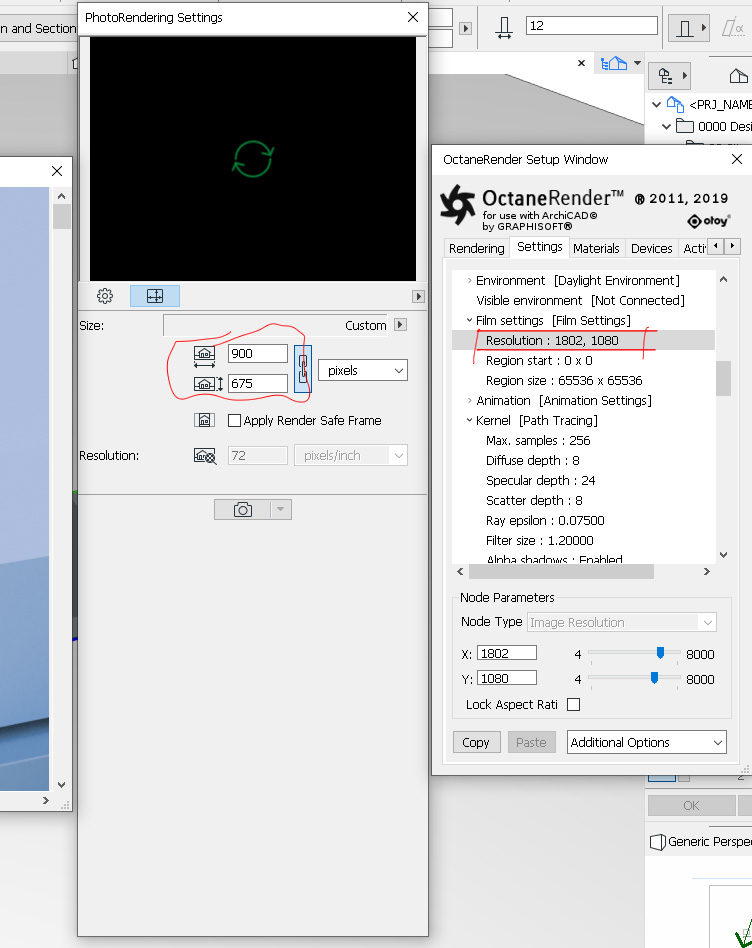

is there a simple way to do this? I've had a look through the settings but AFAICT you have to manually set the resolution in the camera 'Film' settings.

[face_off]

Hi - if you do a Photorender using the OctaneRender renderer, the resolution should automatically match.

Paul

[Dingbat]

thanks for the reply.

how about with the pop up render window? i usually use this window while working - should i be using the main render window?

[face_off]

Hi

The OctaneRender Viewport (ie. NOT the Photorendered) cannot access the Photorenderer setting (like resolution), since the ArchiCAD SDK isolates the Photorenderer functions from the rest of the API. So I don't think this would be possible.

Thanks

Paul

[Dingbat]

is there a way to select which render pass to view with the Photorender viewport (F9 render)?

using the Octane viewport i can't quickly copy paste the rendered images and need to save/import.

using the AC viewport i can copy/paste the renders but looks like i can't select render pass?

[face_off]

You could try enabling "Scene Refresh on View Change" in the plugin settings (hover the mouse for the tooltip), and then opening the Viewport and select a render pass then open the Photorenderer.

Paul

[Dingbat]

thanks. it's not the most fluid workflow but it works OK.

@ face_off, sorry to post this here but have you had a chance to look at the Direct Light issue i posted? have you been able to verify or is this a problem my end?

viewtopic.php?f=56&t=76088

[face_off]

thanks. it's not the most fluid workflow but it works OK.

@ face_off, sorry to post this here but have you had a chance to look at the Direct Light issue i posted? have you been able to verify or is this a problem my end?

viewtopic.php?f=56&t=76088

I just responded in that thread.

Thanks

Paul
