displacement issue

Maxon Cinema 4D (Export script developed by abstrax, Integrated Plugin developed by aoktar)

Moderators: ChrisHekman, aoktar

Post Reply
mitchino
Licensed Customer
Posts: 450
Joined: Thu Jul 14, 2016 4:49 pm

I have used a displacement map to emboss some lettering on a bottle. There are two materials on the bottle, one undisplayed and one with the displacement which is restricted to an area defined by a polygon selection tag

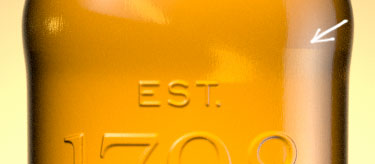

There is a visible join where the two materials meet causing subtle problems with refractions and reflections.

Any ideas on how to fix this?
Attachments
User avatar
bepeg4d
Octane Guru
Posts: 10340
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:

Hi,

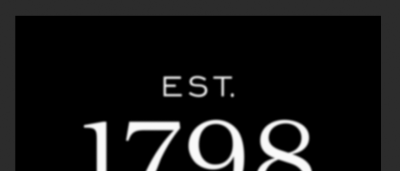

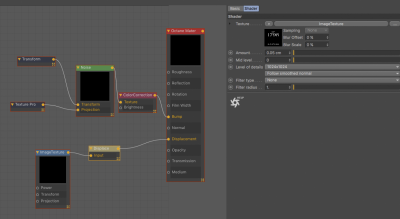

please post a screenshot of that portion of the map, and also a screenshot of the displacement node, thanks.
The Mid-level value has to follow the background color/intensity, or you can have a little displacement in that zone.
ciao Beppe
mitchino
Licensed Customer
Posts: 450
Joined: Thu Jul 14, 2016 4:49 pm

Mid level is at 0, displacement map is at RGB 0;0;0
Attachments
mitchino
Licensed Customer
Posts: 450
Joined: Thu Jul 14, 2016 4:49 pm

the problem is where the underlying material with no displacement meets the material with displacement which is restricted to a selection set. The two materials are stacked.
User avatar
jayroth
Licensed Customer
Posts: 393
Joined: Fri May 28, 2010 7:29 pm
Location: Orange County, CA, USA
Contact:

You should make the map fit the entire shape. That will remove the boundary issue.
CaseLabs Mercury S8 / ASUS Z10PE-D8 WS / Crucial 64GB 2133 DDR4 / 2 XEON E5-2687W v3 3.1 GHz / EVGA 1600 P2 / 2 EVGA RTX 2080Ti FTW3 Hybrid/ Cinema 4D

Is it fast? Oh, yeah!
mitchino
Licensed Customer
Posts: 450
Joined: Thu Jul 14, 2016 4:49 pm

Do you mean make the map fit the entire bottle?
mitchino
Licensed Customer
Posts: 450
Joined: Thu Jul 14, 2016 4:49 pm

I've just had a an idea - is it possible to use a native c4d material for displacement using the displacement deformer, but render using Octane and Octane materials for the actual look of an object?
User avatar
jayroth
Licensed Customer
Posts: 393
Joined: Fri May 28, 2010 7:29 pm
Location: Orange County, CA, USA
Contact:

Yes, have the map fit the entire bottle. Doing so guarantees that the elevations of the displacement will be consistent.
CaseLabs Mercury S8 / ASUS Z10PE-D8 WS / Crucial 64GB 2133 DDR4 / 2 XEON E5-2687W v3 3.1 GHz / EVGA 1600 P2 / 2 EVGA RTX 2080Ti FTW3 Hybrid/ Cinema 4D

Is it fast? Oh, yeah!
User avatar
bepeg4d
Octane Guru
Posts: 10340
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:

mitchino wrote:I've just had a an idea - is it possible to use a native c4d material for displacement using the displacement deformer, but render using Octane and Octane materials for the actual look of an object?
Yes it is possible, dut you need to subdivide a lot the base geometry.
Do you mind to share with me the scene via PM?
ciao Beppe
mitchino
Licensed Customer
Posts: 450
Joined: Thu Jul 14, 2016 4:49 pm

Discovered this was not a displacement issue after all, but a tiny difference in roughness between the two glass materials I had on the bottle. Doh.
