Rhino Plug-in 1.022r01

[SamPage]

Attached is the latest export script and toolbar for Rhino. It adds the ability to choose the Octane.exe of your choice, which cards to use for rendering, and set the max number of samples.

The Plug-in adds two commands, RenderOctane and OctaneOptions. It should work in V4, V5 32 bit, and V5 64 bit.

Unfortunately this release does not address the bug of duplicated material nodes when exporting out of V4. This is something that I will be addressing, but at this point cannot give a time frame for when I will have it fixed.

I have been testing this on Win7, Rhino v5, Octane 1.022. Please let me know if you have any issues (I'm sure you will )

Thanks
Sam

[justix]

Thank you so much for this

[reberts2]

Thanks for your hardwork.
Much appreciated!

[Daniel79]

I have been testing this on Win7x64, Rhino v5 x64,Octane 1.022, Octane 1.022b, Octane pre23_4_win_x64 and don't start, crash!!
I don't understand why...the scene is very simple: A plane whit box.
Can you help me?I need special drivers?
Your old exporter work fine!

[SamPage]

I have been testing this on Win7x64, Rhino v5 x64,Octane 1.022, Octane 1.022b, Octane pre23_4_win_x64 and don't start, crash!!
I don't understand why...the scene is very simple: A plane whit box.
Can you help me?I need special drivers?
Your old exporter work fine!

Hmm, it looks like you only have one card per your sig, so this might not be an issue, but in the options try setting all cards to False and see if that works. I have been having problems with pre23 and not having all cards on or all cards off, but as you are having problems with other flavors of Octane I'm not sure that is the issue.

Also, please try opening Octane by itself, then manually adding the mesh node that the Rhino plug-in exported to see if that opens or not. If that works then something is funny with the export string, if not then there is something up with the obj. If the manual adding of the mesh node fails, could you attach the *.3dm, the *.obj, and the *.mtl?

Thanks,
Sam

-EDIT-
Also, if you could send the C:\Users\[user]\appData\Roaming\OctaneExport\*.ini file I can take a look to see if anything funny is going on in there.

[Daniel79]

I try setting my single card to False and now works!!
I have a question:
What is set to false or true?
Thanks a lot

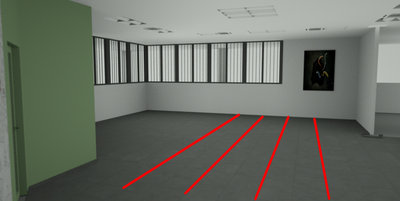

Sorry maybe i found a bug...during export my UV map setting lost..i add image.

Bye Bye

[SamPage]

I try setting my single card to False and now works!!
I have a question:
What is set to false or true?
Thanks a lot

Sorry maybe i found a bug...during export my UV map setting lost..i add image.

The true or false setting for each card determines if Octane is told to use the card or not. If all cards are false, then nothing is passed and Octane decides on its own what to do. It appears that in certain situations Octane doesn't like being told what to do. I have added this to the bug list and it should be a quick fix.

As for the texture mapping, how did you apply your mapping in Rhino? Unfortunately I am entertaining the in-laws this weekend, so I will have to look at this on Monday (as well as the card selection bug).

Thanks,
Sam

[justix]

I have been testing this on Win7x64, Rhino v5 x64,Octane 1.022, Octane 1.022b, Octane pre23_4_win_x64 and don't start, crash!!
I don't understand why...the scene is very simple: A plane whit box.
Can you help me?I need special drivers?
Your old exporter work fine!

Actually it does crash Octane on opening both on my installation of Rhino 4 Sr8 and the new Wip of Rhino 5, if I import the exported obj it does not but I lose the camera setting in this way, not a great deal but still crash... ; ) Also.. the textures are not exported from the plugin but if done manually (normal exporting of an obj in rhino) I got everything...

Overall.. a milestone for Octane, soon...very soon.. I will stop using Max to set mats and shit....

edit: crash has got something to do with a BEX64 event

[SamPage]

Actually it does crash Octane on opening both on my installation of Rhino 4 Sr8 and the new Wip of Rhino 5, if I import the exported obj it does not but I lose the camera setting in this way, not a great deal but still crash... ; ) Also.. the textures are not exported from the plugin but if done manually (normal exporting of an obj in rhino) I got everything...

Does setting all cards to "False" clear the crash for you? I'll take a look at the textures not coming in on Monday.

Sam

[Daniel79]

To Sampage:

I use "plane Mapping" in rhino v5
