Setting for rendering curves

[VISUAL360]

Hello,

I've got some curves that render fine in modo's renderer but noticed octane doesn't match the same smoothness and looks like low poly and not as smooth.

Does anyone know any setting that can control the way the Octane plugin can render it accurately?

Thanks in advance.

FYI. Using the version 11 trial of modo along with the latest test build of Octane.

[face_off]

Are you able to provide a screenshot showing the issue pls, and a sample .LXO?

Thanks

Paul

[Hesekiel2517]

Here you are

[face_off]

You can fix this by adding more points to the curve.

Paul

[Hesekiel2517]

So there is no way to fix this automaticly?

[VISUAL360]

Hesekiel2517, thanks for sending that.

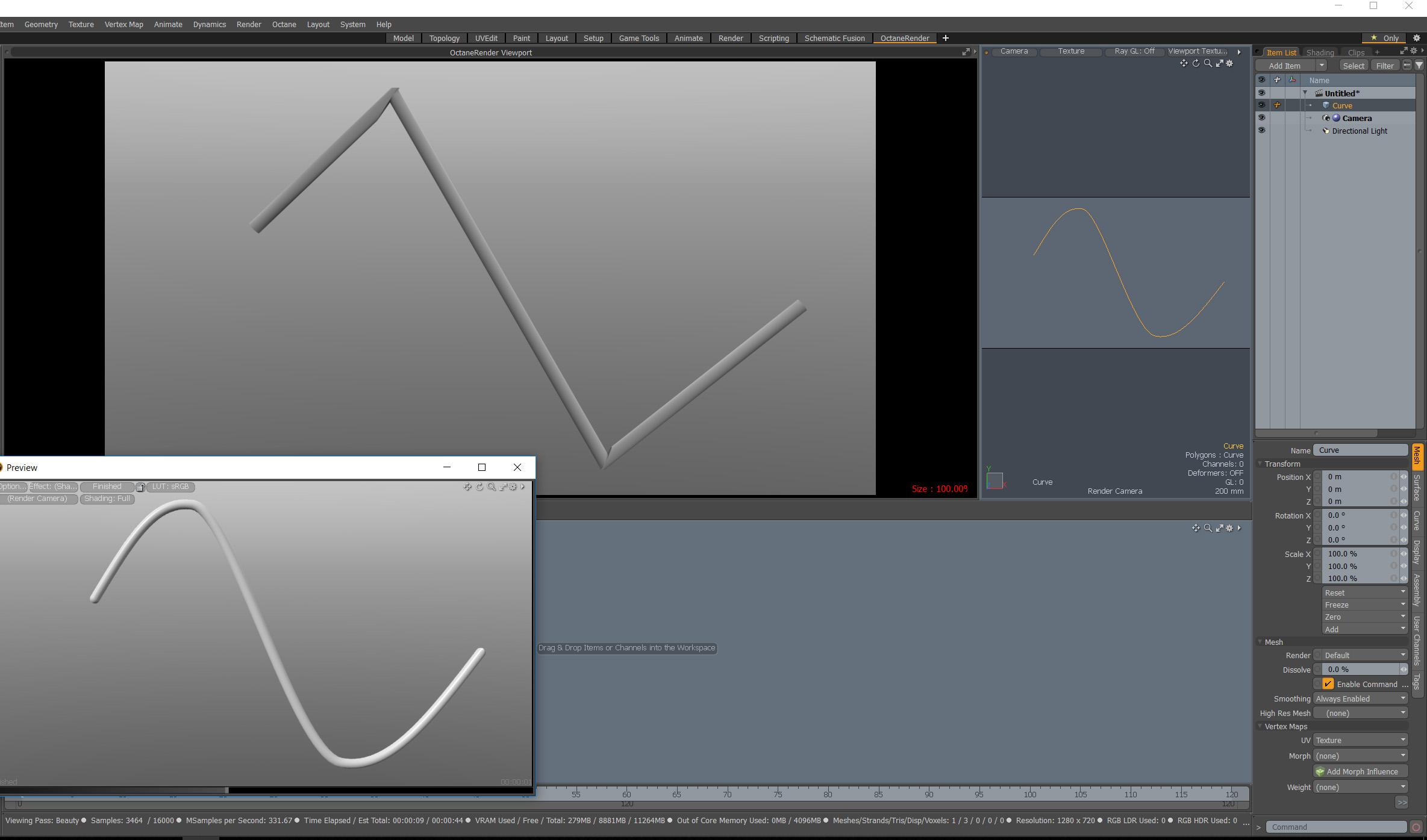

Paul, here is another sample with screen caps of both renderers. Is there no way to match and use the same points that modo uses to create smooth looking geometry?

Thanks for the help.

[Hesekiel2517]

A workaround is to add a "Curve Rebuild" Meshop and make a small Point Spacing. So you can edit your original curve and get a smooth render. But it would be nice if this would work out of the box

[VISUAL360]

A workaround is to add a "Curve Rebuild" Meshop and make a small Point Spacing. So you can edit your original curve and get a smooth render. But it would be nice if this would work out of the box

What if you have 902v3?

[face_off]

The OctaneRender for Modo plugin is picking up the vertices from the curve - so if there are only 4 vertices, the curve will look poor. More vertices = a better render.

Paul

[TheImageFaculty]

Another option is to use Seneca's Quick Pipe script. This method creates a geometric tube/pipe from selected verts or edges. It will produce geometry that octane can render without the need for a crazy amount of verts.

http://www.indigosm.com/modoscripts.htm
