rotate sky

[frifer]

seems like there are many versions of what is actually UP..

here some samples:

http://getintopc.com/wp-content/uploads ... wnload.jpg
http://cadsetterout.wpengine.netdna-cdn ... ts-LOD.png


also see the last two posts on this page:
http://render.otoy.com/forum/viewtopic. ... 9&start=20

would it be possible to define what is up for me? so that based on the local setting I can rotate it how i like?

[face_off]

According to https://archive.org/details/bliptv-2013 ... erThanY228 Y is Up in the default Inventor install. However it's possible to change that to Z (which I assume you have done at some point). The best solution is probably if I add a Configuration option "Z Axis is UP", which you can tick to get the plugin to convert vertices from Z-up to the Y-Up coordinate system that Octane needs.

Paul

[frifer]

Pretty sure I didnt change anything from the default install.. (reinstalled everything with the new version about a week ago)..

BUT... i found something that might explain it.. there is a new setting i am not really sure when it has been added. bust have been within the last few years, and this setting is different based on the Language/country of the installed package.

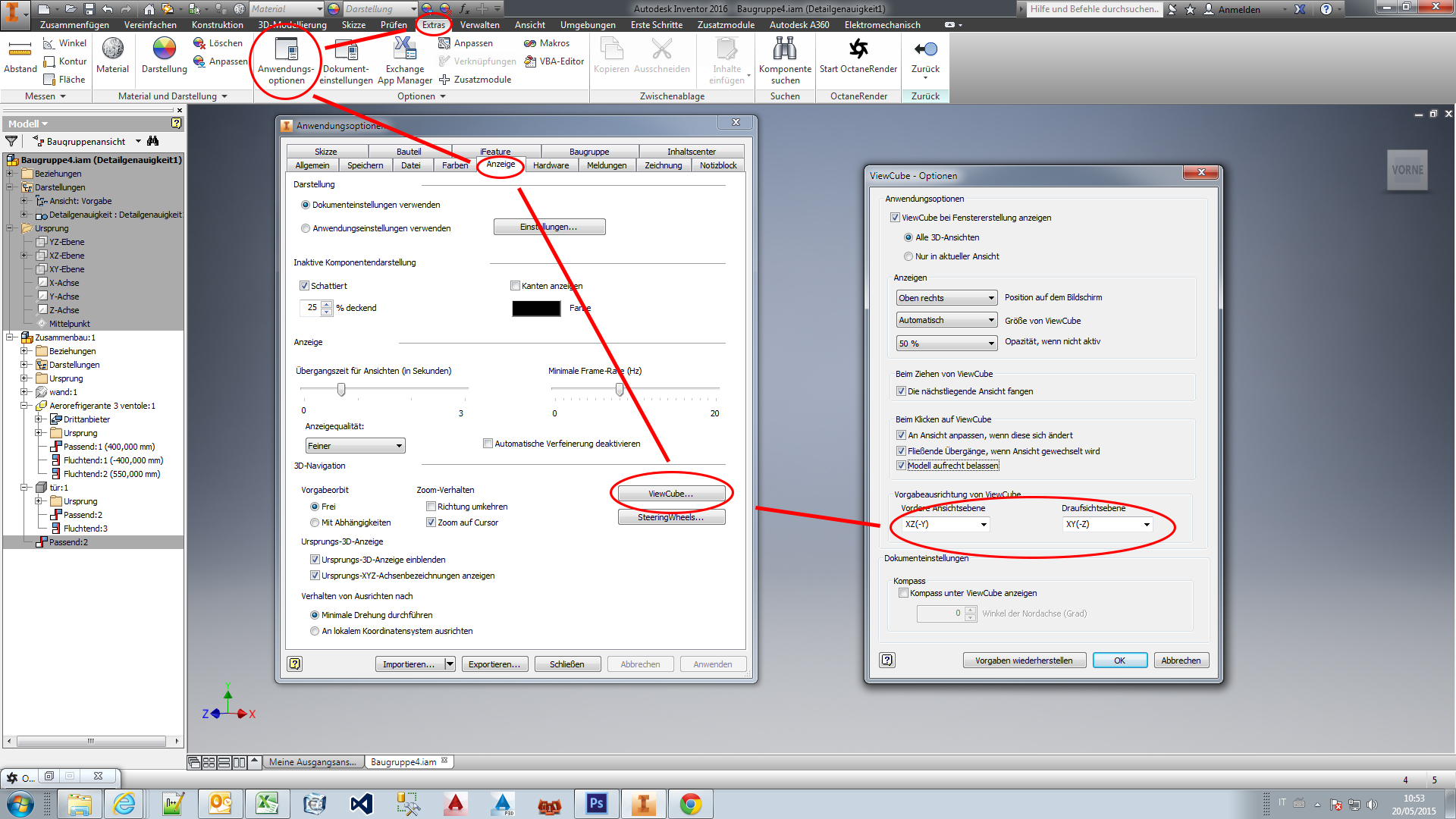

attached is a screenshot.

Maybe you can read this value and adjust the view accordingly?

see the screenshot... since my inventor is german i marked where to click..

[face_off]

BUT... i found something that might explain it.. there is a new setting i am not really sure when it has been added. bust have been within the last few years, and this setting is different based on the Language/country of the installed package.

I can't see a way to read these values from the Inventor API - it is providing the camera transform in Y=Up coordinate space, so there is another transform internal to Inventor which converts the axis. I think a configuration checkbox to switch axes is the easiest option.

Paul

[frifer]

Ok sounds good!
