Thank you mib, I appreciate your help.
Here is another test, took me a while to model and get the correct light mood.
Hope you like it.
My First octane render
Forum rules
Important notice: All artwork submitted on our public gallery forums gallery forums may or may not be used by OTOY for publication on our website gallery.
If you do not want us to publish your art, please mention it in your post clearly. (put a very red small diagonal cross in the top left corner of the image)
Any images already published on the gallery will be removed if the original author asks us to do so.
We recommend placing your credits on the images so you benefit from the exposure too, and use a minimum image width of 1200 pixels, and pathtracing or PMC. Thanks for your attention, The OctaneRender Team.
For new users: this forum is moderated. Your first post will appear only after it has been reviewed by a moderator, so it will not show up immediately.
This is necessary to avoid this forum being flooded by spam.
Important notice: All artwork submitted on our public gallery forums gallery forums may or may not be used by OTOY for publication on our website gallery.
If you do not want us to publish your art, please mention it in your post clearly. (put a very red small diagonal cross in the top left corner of the image)
Any images already published on the gallery will be removed if the original author asks us to do so.
We recommend placing your credits on the images so you benefit from the exposure too, and use a minimum image width of 1200 pixels, and pathtracing or PMC. Thanks for your attention, The OctaneRender Team.
For new users: this forum is moderated. Your first post will appear only after it has been reviewed by a moderator, so it will not show up immediately.
This is necessary to avoid this forum being flooded by spam.
Nice works, keep them coming!
"Quadro K4000 -
MSample/Sec = 3.95
Render ETA = 34min 24sec
Titan -
MSample/Sec = 16.38
Render ETA = 7min 30sec"
Quadro k4000 is in a range of 650/660 in terms of rendering performance in Octane.
Titan is out of production, but You can find TitanBlack that is bit faster (think ~15% than original Titan,if I remember good =) costs around 1000$ (or about 700-800$ if You buy used=) for that amount of money, You'll get render times cut to 1/4th =)
TitanZ is Dual GU card that glues two Titans under a single hood =) the cards is said to be 12GB, but it actually has 2x6GB, so Octane sees it (or them, 2cards) as 6Gb. The good thing is that it has triple slot cooler design saving You a bit of space =) price wise, after recent price cuts, getting TitanZ makes more sense, as it offers slightly better value compared to Black. Though, ..
if You don't need much of vRAM, You can get 780/780Ti that are similar performance just have half of available vRam (3gb "Only")
in Your case there's a place for additional card:
considering You don't have too much space for expansion I'd go for TitanZ =) that should a be a ~ 8x boost.
It's hard to tell how much power (PSU) have, so I'd write a line to Dell & ask them exactly to be sure =)
I have a feeling that TitanBlack could be powered easily & even Z..
I would be surprised if dell would put too weak power brick..
but it's worth to ask before making a move!
Hope that helps =)
here's something to think a bit =)ZAKI wrote:Thanks @glimpse for the feedback, my current machine settings is Dell Precision T5610, Dual Intel Xeon E5-2630 v2, 32GB RAM,3 GB NVIDIA Quadro K4000, do you think it's okey if I throw in another card for a non-custom build machine ? which card of these you mentioned would be the best deal ?
I mainly used this machine for rendering animations so I focused on the number of cores/threads instead of the gpu, that's before I know about octane.
"Quadro K4000 -
MSample/Sec = 3.95
Render ETA = 34min 24sec
Titan -
MSample/Sec = 16.38
Render ETA = 7min 30sec"
Quadro k4000 is in a range of 650/660 in terms of rendering performance in Octane.
Titan is out of production, but You can find TitanBlack that is bit faster (think ~15% than original Titan,if I remember good =) costs around 1000$ (or about 700-800$ if You buy used=) for that amount of money, You'll get render times cut to 1/4th =)
TitanZ is Dual GU card that glues two Titans under a single hood =) the cards is said to be 12GB, but it actually has 2x6GB, so Octane sees it (or them, 2cards) as 6Gb. The good thing is that it has triple slot cooler design saving You a bit of space =) price wise, after recent price cuts, getting TitanZ makes more sense, as it offers slightly better value compared to Black. Though, ..
if You don't need much of vRAM, You can get 780/780Ti that are similar performance just have half of available vRam (3gb "Only")

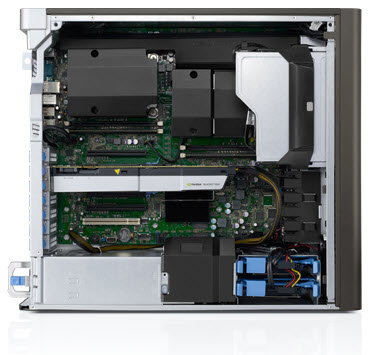

in Your case there's a place for additional card:

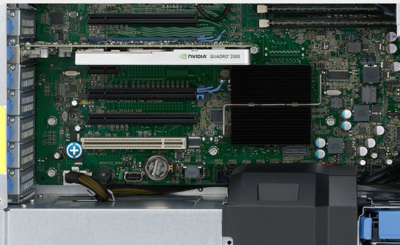

- workstation-precision-t5610-overview2.jpg (33.7 KiB) Viewed 2798 times
It's hard to tell how much power (PSU) have, so I'd write a line to Dell & ask them exactly to be sure =)
I have a feeling that TitanBlack could be powered easily & even Z..
I would be surprised if dell would put too weak power brick..
but it's worth to ask before making a move!
Hope that helps =)
Thank you glimpse for the detailed information, it's really really appreciated.
I will do some research and inquiries and see if I can add other gpu in my current setup without any problem.
I will do some research and inquiries and see if I can add other gpu in my current setup without any problem.
