Rendering difference between 1.16 and 1.17

Postby Erick » Mon Jun 10, 2013 7:55 pm

Erick Mon Jun 10, 2013 7:55 pm
I was just playing around with a mirror prop, when I spotted a difference in the renders of version 1.16 to 1.17.

So the mirror it self has a frame around it. The mat zones are left-right bars and top-bottom bars. While the side bars seem to render fine, the lower part of top and bottom bars are rendering in two different shades, as if they're two parts.
This happened in version 1.17

(next post will have a picture of version 1.16)
Attachments
Last edited by Erick on Mon Jun 10, 2013 7:59 pm, edited 2 times in total.
Erick
Licensed Customer
Licensed Customer

Posts: 213
Joined: Thu Sep 13, 2012 9:40 am

Re: Rendering difference between 1.16 and 1.17

Postby Erick » Mon Jun 10, 2013 7:57 pm

Erick Mon Jun 10, 2013 7:57 pm
Here's the same scene, rendered with 1.16
The top and bottom bars of the frame are good now.

What could have caused this?
Attachments
Erick
Licensed Customer
Licensed Customer

Posts: 213
Joined: Thu Sep 13, 2012 9:40 am

Re: Rendering difference between 1.16 and 1.17

Postby abstrax » Mon Jun 10, 2013 9:32 pm

abstrax Mon Jun 10, 2013 9:32 pm
It's is possible that the vertex normals in this scene are stuffed. Maybe Paul (face_off) can check the orientation of the normals?
In theory there is no difference between theory and practice. In practice there is. - Yogi Berra
User avatar
abstrax
OctaneRender Team
OctaneRender Team

Posts: 5150
Joined: Tue May 18, 2010 11:01 am
Location: Auckland, New Zealand

Re: Rendering difference between 1.16 and 1.17

Postby face_off » Mon Jun 10, 2013 10:58 pm

face_off Mon Jun 10, 2013 10:58 pm
Does changing the rayepsilon makes the images the same?

The normals calculation has not changed between 1.16 and 1.17, but you can check by rendering with 1.16 and 1.17 with kernel = "deep_channel_kernel", "type" = "Geometric Normals".

Paul
Win7/Win10/Mavericks/Mint 17 - GTX550Ti/GT640M
Octane Plugin Support : Poser, ArchiCAD, Revit, Inventor, AutoCAD, Rhino, Modo, Nuke, DAZ Studio
Pls read before submitting a support question
User avatar
face_off
Octane Plugin Developer
Octane Plugin Developer

Posts: 14167
Joined: Fri May 25, 2012 10:52 am
Location: Adelaide, Australia

Re: Rendering difference between 1.16 and 1.17

Postby Erick » Tue Jun 11, 2013 4:39 pm

Erick Tue Jun 11, 2013 4:39 pm
Sorry for the late response ....
As suggested, I did three more tests.

Deep_chan. Geo.normals with 1.16a6 (just forgot to set the focus right)
Attachments
Erick
Licensed Customer
Licensed Customer

Posts: 213
Joined: Thu Sep 13, 2012 9:40 am

Re: Rendering difference between 1.16 and 1.17

Postby Erick » Tue Jun 11, 2013 4:40 pm

Erick Tue Jun 11, 2013 4:40 pm
Deep_chan. 1.17a4
Virtually no difference to the 1.16 render
Attachments
Erick
Licensed Customer
Licensed Customer

Posts: 213
Joined: Thu Sep 13, 2012 9:40 am

Re: Rendering difference between 1.16 and 1.17

Postby Erick » Tue Jun 11, 2013 4:42 pm

Erick Tue Jun 11, 2013 4:42 pm
And finally a 1.17 render with all image maps and bump and whatever pulled out. just a RGBspectrum node of 127/127/127
Attachments
Erick
Licensed Customer
Licensed Customer

Posts: 213
Joined: Thu Sep 13, 2012 9:40 am

Re: Rendering difference between 1.16 and 1.17

Postby roeland » Tue Jun 11, 2013 10:03 pm

roeland Tue Jun 11, 2013 10:03 pm
Can you also post the images using the "Shading Normals" mode? These are the ones used to calculate the shading. For objects like this, with hard edges, it should look the same as the geometric normals.

--
Roeland
User avatar
roeland
OctaneRender Team
OctaneRender Team

Posts: 1753
Joined: Wed Mar 09, 2011 10:09 pm

Re: Rendering difference between 1.16 and 1.17

Postby face_off » Wed Jun 12, 2013 1:45 am

face_off Wed Jun 12, 2013 1:45 am
The reason for the difference between 1.16 and 1.17 is that there was a bug fix in 1.17 for reflections which means the mirror frame surface "normals' are interpreted differently. The fix for your scene is to DISABLE SMOOTHING on the frame material (material "sides" and "Top_and_bottom". You really should turn OFF smoothing on all flat surfaces (ie. the walls), particularly if they have a very low polygon count (ie. 1 polygon for an entire wall surface).

[EDIT: Manual updated to reflect the above info - http://render.otoy.com/manuals/Poser/?page_id=210]

Paul
Win7/Win10/Mavericks/Mint 17 - GTX550Ti/GT640M
Octane Plugin Support : Poser, ArchiCAD, Revit, Inventor, AutoCAD, Rhino, Modo, Nuke, DAZ Studio
Pls read before submitting a support question
User avatar
face_off
Octane Plugin Developer
Octane Plugin Developer

Posts: 14167
Joined: Fri May 25, 2012 10:52 am
Location: Adelaide, Australia

Re: Rendering difference between 1.16 and 1.17

Postby Erick » Wed Jun 12, 2013 4:26 pm

Erick Wed Jun 12, 2013 4:26 pm
Setting "smooth" to "Disabled", for the frame, indeed solves the problem.
What an impact on little check or uncheck marker can have, hehe =)
Thanks so much for the help, Paul!

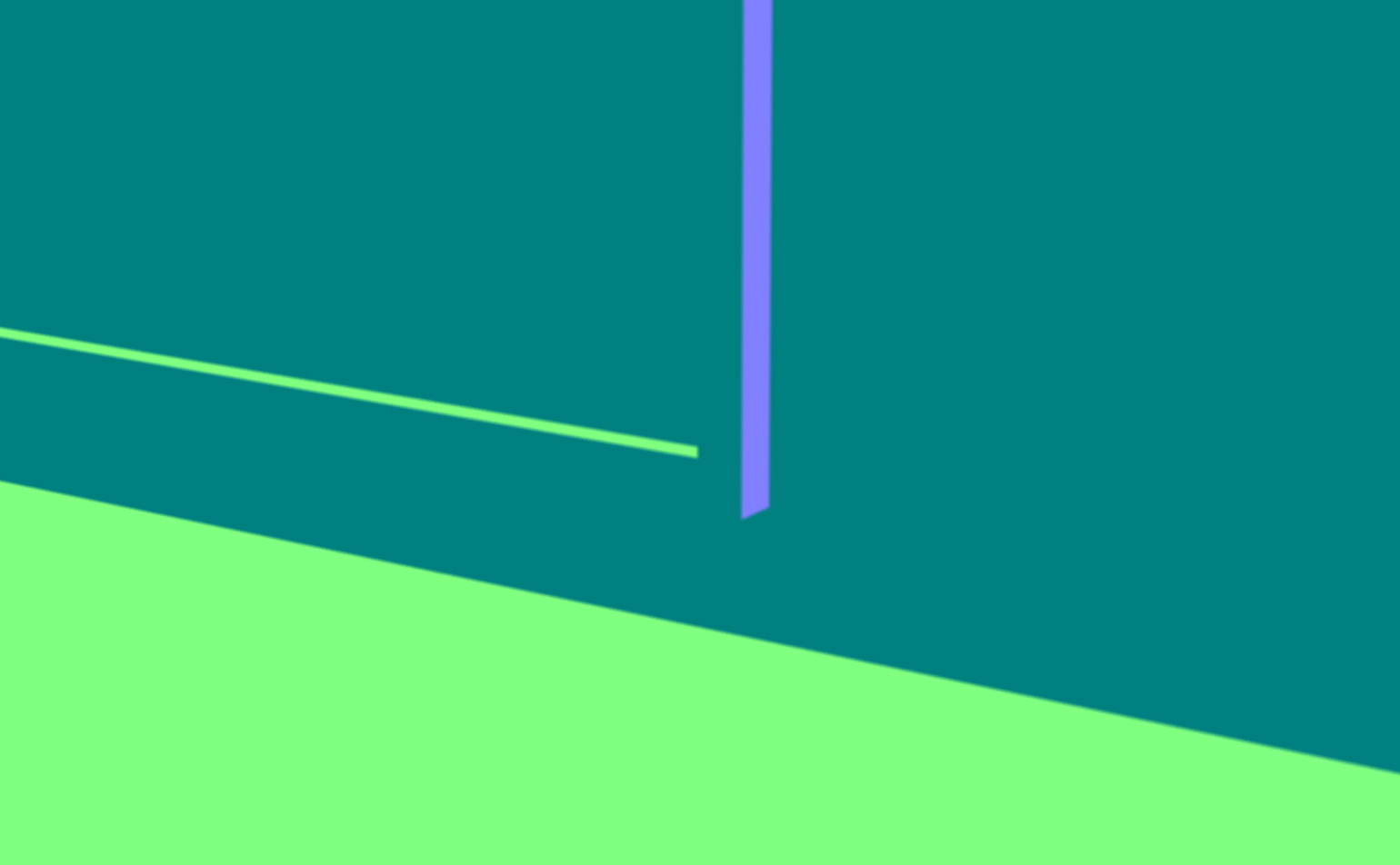

@roeland, here are 2 renders, showing the shading normals (1.17).
1st one is with smoothing enabled, 2nd one with smoothing disabled:
Attachments
Erick
Licensed Customer
Licensed Customer

Posts: 213
