Displacement + bump trick

Sub forum for help and tutorials.

Moderators: ChrisHekman, aoktar

Post Reply
User avatar
aoktar
Octane Plugin Developer
Posts: 16063
Joined: Tue Mar 23, 2010 8:28 pm
Location: Türkiye
Contact:
Contact aoktar

Hi guys,

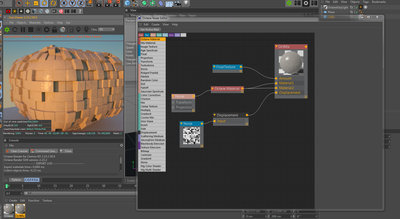

i found a work around for displacement+bump problem. See attached scene and image.
Attachments
disp+bump.zip
(132.27 KiB) Downloaded 1055 times
Octane For Cinema 4D developer / 3d generalist

3930k / 16gb / 780ti + 1070/1080 / psu 1600w / numerous hw
Top
User avatar (Default)
djart
Licensed Customer
Posts: 135
Joined: Thu Oct 10, 2013 2:17 pm

Thank you very much.

Cheers,
djart
Top
User avatar
Yambo
Licensed Customer
Posts: 345
Joined: Tue May 12, 2015 1:37 pm
Location: Tel Aviv, Israel

very nice man!
4x 980ti EVGA | 5930k | Asus X99 E WS 3.1 | corsair 64GB RAM |SSD 500GB system + SSD 2TB working files + 6TB HDD storage WD |
Phanteks Enthoo Primo | 1600W EVGA T2 BLACK | It's the fastest 4x980ti build: http://goo.gl/hYp8e0 :)

https://yambo.me
Top
User avatar (Default)
ten
Licensed Customer
Posts: 218
Joined: Fri Apr 18, 2014 10:43 am
Location: England

What does this fix exactly please? I mean what was the issue people were having?

Ten
( PC ) i7 5960x octal 4.5ghz / 64GB / 2x Titan X 12GB / 1x 780 6GB - ( Laptop ) i7 4790k 4ghz / 32GB / 980M 8GB - Octane CD4 2.x / C4DR16.x / win 8.x
Top
User avatar
Yambo
Licensed Customer
Posts: 345
Joined: Tue May 12, 2015 1:37 pm
Location: Tel Aviv, Israel

Simply displacement cant work with bump or normal maps.
But seems it can :)
4x 980ti EVGA | 5930k | Asus X99 E WS 3.1 | corsair 64GB RAM |SSD 500GB system + SSD 2TB working files + 6TB HDD storage WD |
Phanteks Enthoo Primo | 1600W EVGA T2 BLACK | It's the fastest 4x980ti build: http://goo.gl/hYp8e0 :)

https://yambo.me
Top
User avatar
bepeg4d
Octane Guru
Posts: 10321
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:
Contact bepeg4d

aoktar wrote:Hi guys,
i found a work around for displacement+bump problem. See attached scene and image.
wow, great find ahmed, it works also in standalone ;)
ciao beppe
Top
User avatar (Default)
gordonrobb
Licensed Customer
Posts: 1247
Joined: Sat Mar 16, 2013 9:08 am

Can I ask (as I'm not sure from either of the node trees), which you're putting into what? Is the displacement going into the mix node? and the bump going in to the material? And Is it one material that you are putting into both inputs of the mix node? Also, what are you putting the mix value at?
Windows 8 Pro | i7 3770 OC | 32 GB Ram | Single Titan (plus Black Edition on Order) | Octane Lightwave |
Top
User avatar
bepeg4d
Octane Guru
Posts: 10321
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:
Contact bepeg4d

hi gordon,
yes, exactly! the trick is to get advantage of the extra node for displacement in the mix material and to use the same material with bump in the double slots of the mix node ;)
Since we use the same material twice, the amount node doesn't have any impact ;)
ciao beppe
Top
User avatar
bepeg4d
Octane Guru
Posts: 10321
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:
Contact bepeg4d

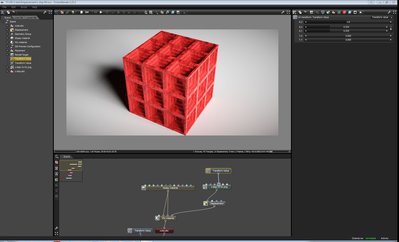

Here is my simple scene for testing:
bumpAndDisp-01.orbx.zip
(5.81 MiB) Downloaded 979 times
ciao beppe
Top
User avatar (Default)
philliplakis
Licensed Customer
Posts: 79
Joined: Wed Nov 19, 2014 2:27 am
Location: Sydney, Australia

thanks man :) :D :D :D
Win10 - 6700k - 32gb Ram - GTX Titan X (Pascal) + GTX 1080
Top
