This is a really basic howto for the new falloff node that is now available in 2.59 beta and upwards.
It's mainly designed for those who perhaps have never met falloff before...

What is it?
The falloff map is a floattexture that is shaded dependent on the viewing angle to the material (or rather geometry that the material is on).

What is it used for?
Anywhere you want to have a material that reacts differently depending on viewing angle. Mainly usefull for fabric and architectural glass. Connect the falloff node to the amount input of a mix material to control the blend of the two.

Where can i find it?

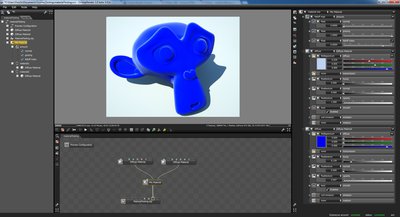

The falloff map is found under textures:


Settings:

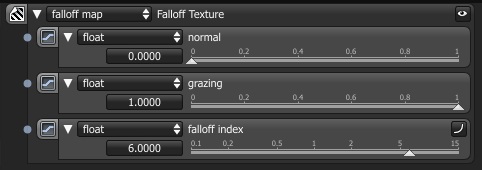

There are 3 parameters for the falloff node.
I will give functional explanations of the 3 parameters rather than technical details...
1) normal – this effects the color of the surface at direct on viewing anges. 0 = black, 1 = white.
2) Grazing – this effects the color of the surface at shallower viewing angles. 1= white, 0 = black
3) falloff index – this effects the blending of the above two values.


Here is an example of cloth with (left) and without (right) the use of falloff:

Here is a test i did somewhat simulating the crazy car paint from the 90's:

And probably the most useful but more subtle usage is architectural glass:
(Glossy material with full reflection and falloff to control the opacity)

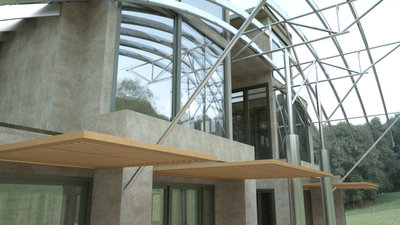

With falloff (notice the reduced reflection on the windows that are pointing more towards the camera)

Without falloff (0.3 opacity regardless of viewing angle):
(Notice the slightly unrealistically high reflection on the lower windows and through the almost face on window on the 2nd floor)

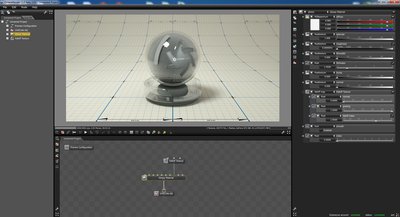

Here are the settings to create this glass.
It is a glossy material with full specular, minimum roughness and a falloff node connected to the opacity input.
Setting the falloff index to around 2.9 is a good starting point but it's a good idea to tweak this depending on your scene.

[nildoe]

Thx alot for this small but VERY useful tutorial Fooze

Nildo

[kavorka]

Simple, basic, but much needed
thanks for the explanation. The only time I have ever used falloff before, was to get that cool look of microbs and really small things viewed under a microscope.

The falloff node definetly helps out that glass, gotta start using this

[merid888]

hi thank you for this tutorial, but you don't say how creat the material and values, is important setting of materials, can you be more especific to help as ? maybe a few pictures step by step to create a realistic glass ?
thank you
regards

[FooZe]

Hi merid888,

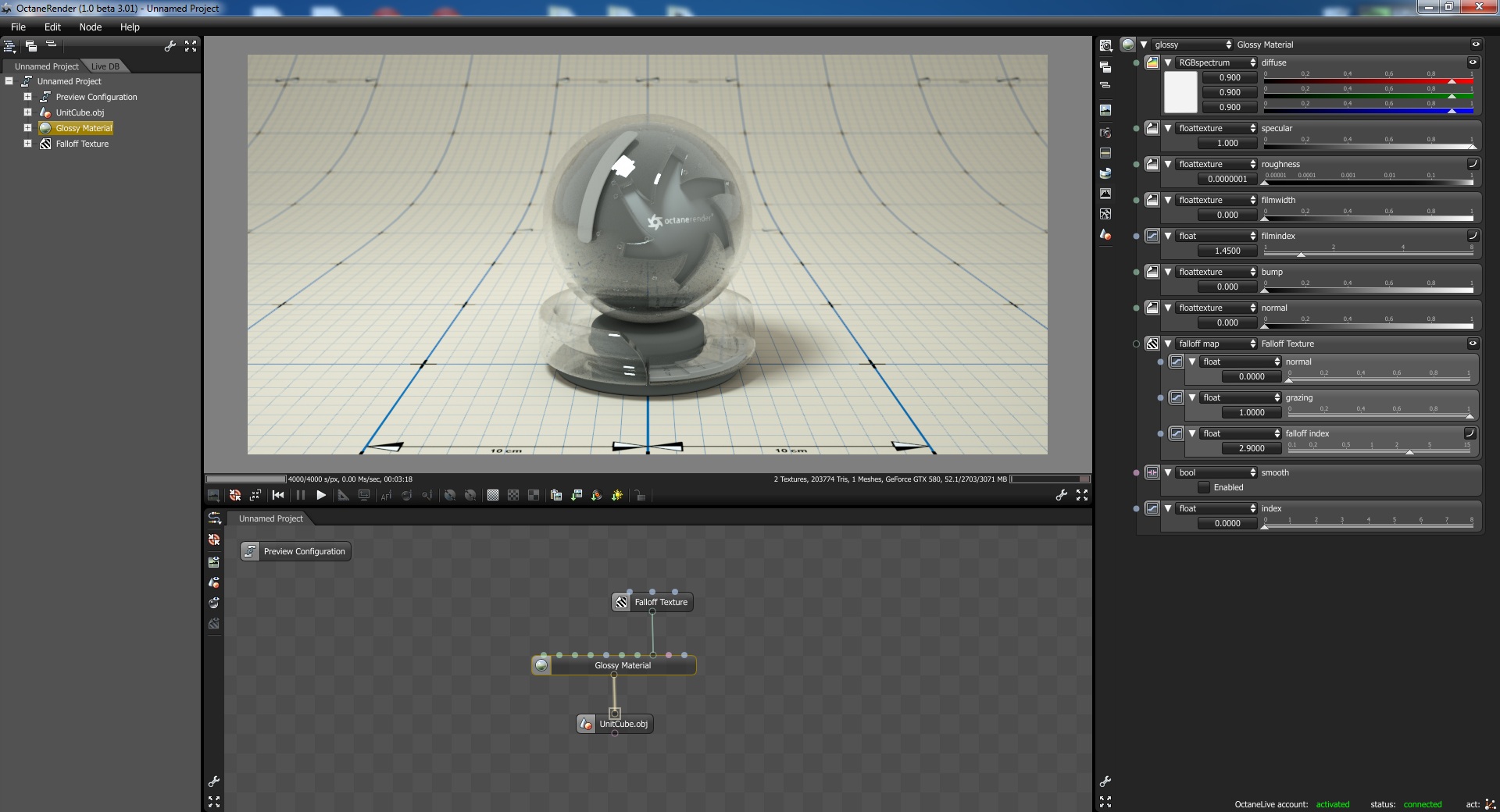

Sorry for the lack of info. I have added a screenshot of the setting needed.
