Construction Cross Section of a Museum

Display your final art here...
Forum rules
Important notice: All artwork submitted on our public gallery forums gallery forums may or may not be used by OTOY for publication on our website gallery.
If you do not want us to publish your art, please mention it in your post clearly. (put a very red small diagonal cross in the top left corner of the image)
Any images already published on the gallery will be removed if the original author asks us to do so.
We recommend placing your credits on the images so you benefit from the exposure too, and use a minimum image width of 1200 pixels, and pathtracing or PMC. Thanks for your attention, The OctaneRender Team.

For new users: this forum is moderated. Your first post will appear only after it has been reviewed by a moderator, so it will not show up immediately.

This is necessary to avoid this forum being flooded by spam.
Post Reply
User avatar
kubo
Posts: 1377
Joined: Wed Apr 21, 2010 4:11 am
Location: Madrizzzz

One of my best friends is about to turn in his final project for architecture, my other best friend did the technical details of the cross sections, and I did the 3D part, so I think that the combine effort is what makes this image great for us, you may not like it, but we do, we think I speaks highly of the project and what our friend wanted his museum to feel like (and of course thanks to octane too which is responsible for the realistic look of it, and kilad and gk's plugin for making it easier).
I had to model it so it could fit in the 2d drawing, but I didn't want any light coming from the slice, so I modeled an extra space on the other side to which I added a white material with almost 0 opacity (if I went down to 0 octane started to stall on me). Since the sun doesn't go thru opacity maps it worked well blocking the sun meanwhile it didn't obstruct the view.
Here is the result plus the wip of the setup.
Since we liked we added an extra camera for that interior shot.
We hope you liked. (And we hope he gets his degree, too :lol: )
Cheers
Attachments

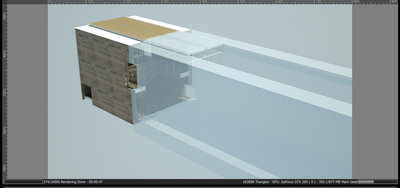

WiP setup, opacity at 0.5 so you can see the extra mesh
WiP setup, opacity at 0.5 so you can see the extra mesh

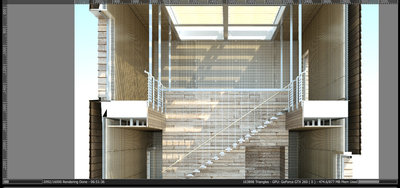

fresh from the oven, I left it overnight, but it sure would look the same with less samples
fresh from the oven, I left it overnight, but it sure would look the same with less samples

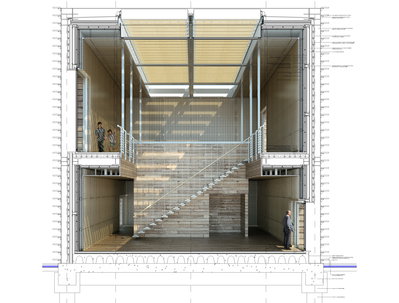

raw image with added people, no extra retouching and downgraded to jpg for forum sakes
raw image with added people, no extra retouching and downgraded to jpg for forum sakes
final result
final result
we just had to do it
we just had to do it
windows 7 x64 | 2xGTX570 (warming up the planet 1ºC at a time) | i7 920 | 12GB
