Fri Feb 11, 2011 2:18 pm

I see, I can code those in PFlow in max, but didn't know that can't be done in ICE..

Thu Feb 17, 2011 1:41 pm

Animation

It´s better to download the video, because the quality is realy poor...
http://www.vimeo.com/download/video:403 ... c23ecd8e51

face

[vimeo]http://www.vimeo.com/20059572[/vimeo]

Fri Feb 18, 2011 2:26 am

A better Video is here...
http://3d-pixel.de/softimage/video/stra ... rands.html

face

Wed Mar 02, 2011 8:47 pm

Some fun...
http://3d-pixel.de/softimage/video/RenderMap/

face

Wed Mar 02, 2011 11:22 pm

thats not fun

... ...thats awesome ... can you put mix material in the every color of the ramp ?? I just imagined the posibilities...

can I see the ice tree?? or how , where, when??

Thu Mar 03, 2011 2:11 am

Thats only a rendermap which will automatic generate per frame inside Softimage.

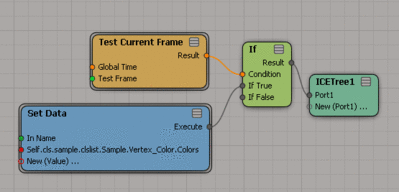

The first ICE-Tree generate a white vertex color map till the first particle is emitted.

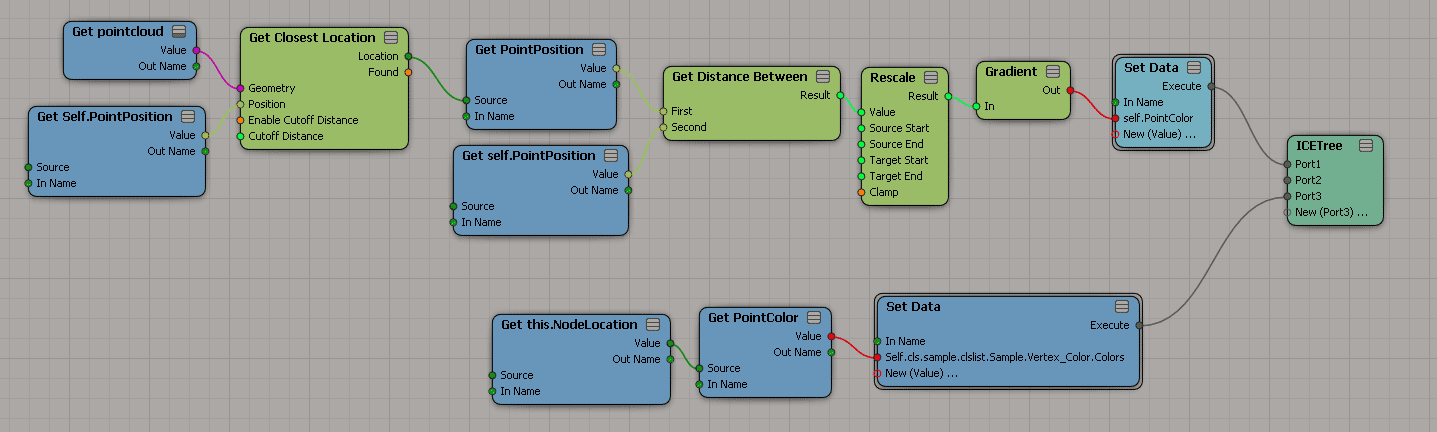

In the second tree, the particles generates the vertex color map per distance to each point from the cube.

The cube self have 2 uv-maps, one cubic and one explicit.

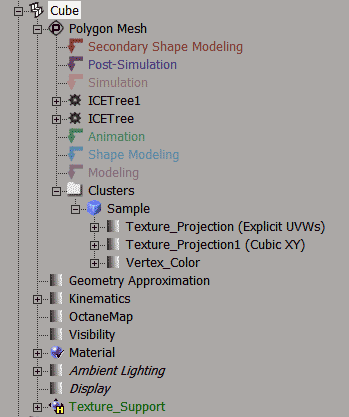

: explorer.gif (9.71 KiB) Viewed 4708 times

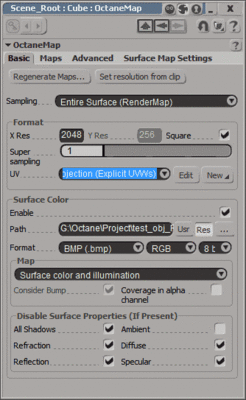

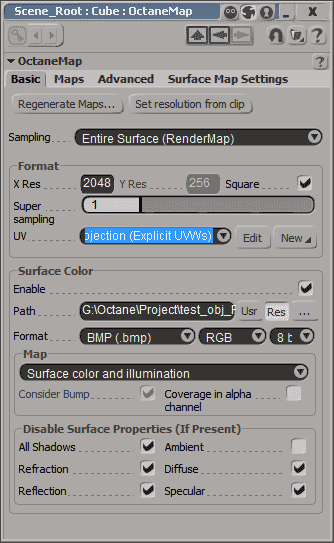

He have also a RenderMap, renamed to OctaneMap, so that the exporter can find it.
The Imagename/path will generated automaticly and lie in the project folder. The only thing you must do is to check what you will bake and to choose the image size/format.

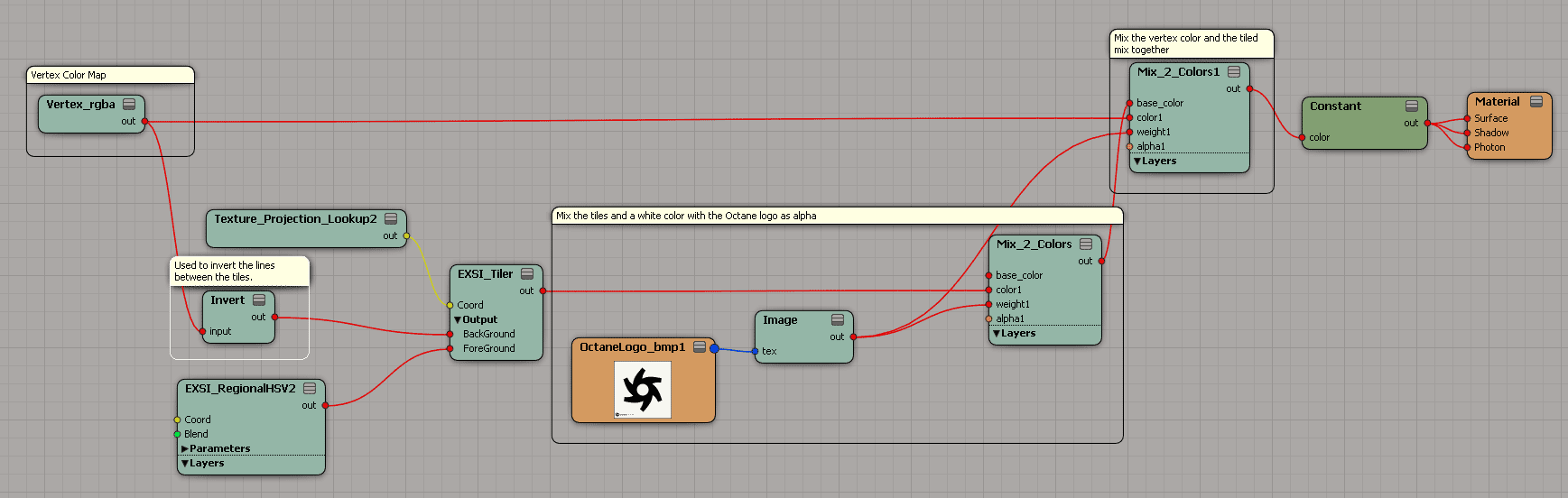

The cubic uv-map is used to mix the Octane logo and the checkboard together.
The other one is used to store the rendermap.

You see, it´s also realy simple

The only think which is a little bit tricky, is to know, that only the first uv-map is exported.
So you must see, that the exported one is on the first place in the explorer.
And there is nothing, what the current plugin can´t do, but i think the most known it

face

Thu Mar 03, 2011 12:07 pm

Thats just awesome... ...Your pushing very hard... ...its a pittty that we cant rate the topics here, becouse I already would give You like 1000 stars/points... ...or maybe we can donate You face

You really dont know how glad Iam that You are using xsi

Thu Mar 03, 2011 12:37 pm

rUSLAN777 wrote:Извиняюсь что не в тему, подскажите где кнопка обратной связи, заранее спасибо.

ke??

Thu Mar 03, 2011 1:07 pm

@face..
this is by far the most interesting and extensive threads - imho..
are yo familiar with rhino-grasshopper?
how good is that- and can we do similar stuff like ice..?
(its a noob question

)

Thu Mar 03, 2011 4:17 pm

mlody47 wrote:... ...or maybe we can donate You face

No problem, send me this car to...

face
