some objects triangulate not work in octane why?

Autodesk Softimage XSI (Developed by Face)
Post Reply
Destrankir
Licensed Customer
Posts: 3
Joined: Mon Feb 27, 2012 11:57 am

Thanks
Attachments

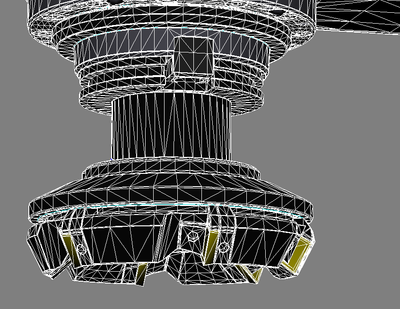

softimage
softimage

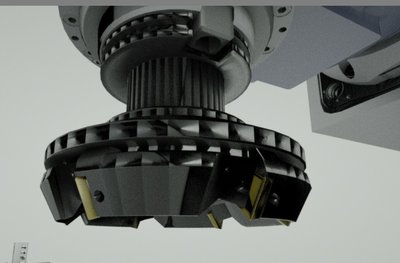

octane render
octane render
User avatar
t_3
Posts: 2871
Joined: Tue Jul 05, 2011 5:37 pm

its a problem with the normals. if you turn smoothing off, you will see plane surfaces, but of course still no round shape (assuming that is what you want). you need to realign the normals. imo in general it is better to not triangulate objects if possible...
The obvious is that which is never seen until someone expresses it simply

1x i7 2600K @5.0 (Asrock Z77), 16GB, 2x Asus GTX Titan 6GB @1200/3100/6200
2x i7 2600K @4.5 (P8Z68 -V P), 12GB, 1x EVGA GTX 580 3GB @0900/2200/4400
User avatar
face
Octane Plugin Developer
Posts: 3204
Joined: Sat Mar 06, 2010 2:10 pm
Location: Germany

The normals looks also incorrect on the wireframe. Have a look at the yellowish part.
You can use the Discontinuity slider under the Polygon Mesh tab in the Geometry Approximation PPG to change the angle to a value which looks good, normal 60°.
60° means, if a angle between two polygon normals are lesser as 60°, the edges are blended together, greater, the edges are hard.
Polygons are in this case triangles...

face
Win10 Pro, Driver 378.78, Softimage 2015SP2 & Octane 3.05 RC1,
64GB Ram, i7-6950X, GTX1080TI 11GB
http://vimeo.com/user2509578
Destrankir
Licensed Customer
Posts: 3
Joined: Mon Feb 27, 2012 11:57 am

Tanks finally i have some normals and some Geometry Approximation bad xD
