noise bumps display different. live view vs final render

Sub forum for bug reports

Moderators: ChrisHekman, aoktar

Forum rules
Before posting a bug report, please check the following:
1. That the issue has not already been disclosed
2. That the issue is specific to this plugin, and not Octane in general (Try reproducing it in Standalone)
Bugs related to the Octane Engine itself should be posted into the Standalone Support sub-forum.

All bug reports should include the information below, along with a detailed description of the issue and steps to reproduce it.
A. Operating System, including version (i.e. Win 7, OSX 10.11.2, Ubuntu 14.04, etc.)
B. Graphics Card(s) model (i.e. GTX 580 - 3GB, TITAN, etc.)
C. RAM Capacity (i.e. 6 GB)
D. Nvidia driver version (i.e. 7.50, 7.5.22)
E. OctaneRender Standalone version, if installed (i.e. 2.24.2, 2.23, etc.)
F. OctaneRender plugin version (i.e. v2.25 - 2.21)
G. Host application version, including build number if available (i.e. 3ds Max 2016 Build 18.0)
H. A detailed description of the issue and steps to reproduce it (Include Screenshots or video capture), as well as an example scene if applicable.
I. Copies of the Octane Log window and Console window outputs (full text attached as a file to your post is recommended).

Please note that reports of issues inside existing threads will be ignored/removed, and reports may be closed if the reporter does not respond to subsequent queries in the thread.
Post Reply
User avatar (Default)
boxfx
Licensed Customer
Posts: 276
Joined: Fri Apr 27, 2012 9:13 am

When I render a plane with a noise shader as a bump, I have the live view looking significantly different from my final renders.

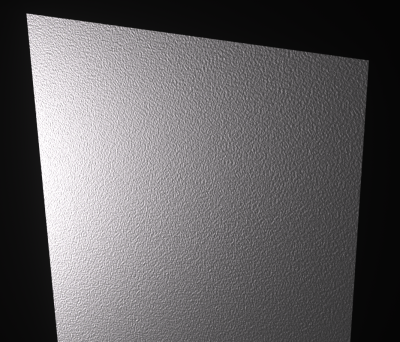

Live view whilst working:

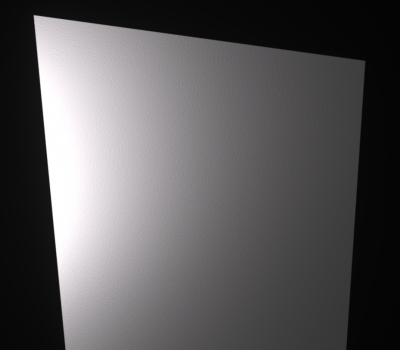

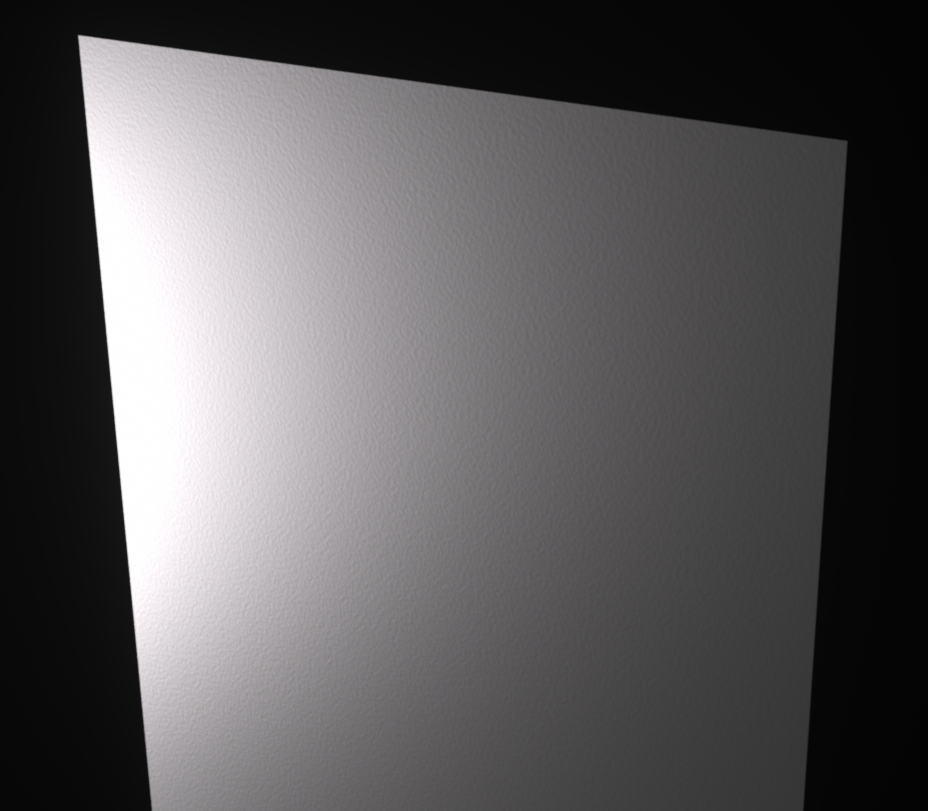

Final renders:
octane 2025.1.0 0104
c4d 2025.2.1
geforce 4090
driver 576.02
win 11

file attached
Attachments
noise.zip
(84.33 KiB) Downloaded 19 times
Top
User avatar (Default)
boxfx
Licensed Customer
Posts: 276
Joined: Fri Apr 27, 2012 9:13 am

Likely related to compatibility mode, this file is a year or so old.
Top
User avatar (Default)
DinoMuhic
OctaneRender Team
Posts: 194
Joined: Wed Mar 25, 2015 10:24 pm

boxfx wrote: Tue May 06, 2025 3:26 pm Likely related to compatibility mode, this file is a year or so old.
Do you by any chance have a different scene scale set up in the C4D Project Settings than the default (cm)?
Top
User avatar (Default)
boxfx
Licensed Customer
Posts: 276
Joined: Fri Apr 27, 2012 9:13 am

Yes, most of our projects are 10x smaller than default with project scale set to 1mm
Top
User avatar (Default)
DinoMuhic
OctaneRender Team
Posts: 194
Joined: Wed Mar 25, 2015 10:24 pm

Hey Mash, I found the issue: In the Octane Render Settings the parameter "Geometry Control" is set to "Auto Detect".
If you revert this to the default "All Objects Movable" it looks correct again. Obviously should not happen.

I marked this to be fixed for the next release, sorry about the inconveniences.
Top
User avatar (Default)
DinoMuhic
OctaneRender Team
Posts: 194
Joined: Wed Mar 25, 2015 10:24 pm

boxfx wrote: Wed May 07, 2025 8:25 am Yes, most of our projects are 10x smaller than default with project scale set to 1mm
Another note while doing more testing: If you create a projection node in the noise, it will render correctly. So that's a work-around, too for now, then you can keep the Geometry control at "Auto Detect" if you want.
Top
