Cracks appearing over models

Maxon Cinema 4D (Export script developed by abstrax, Integrated Plugin developed by aoktar)

Moderators: ChrisHekman, aoktar

Post Reply
User avatar (Default)
oshi
Licensed Customer
Posts: 11
Joined: Sun Oct 04, 2020 8:41 pm

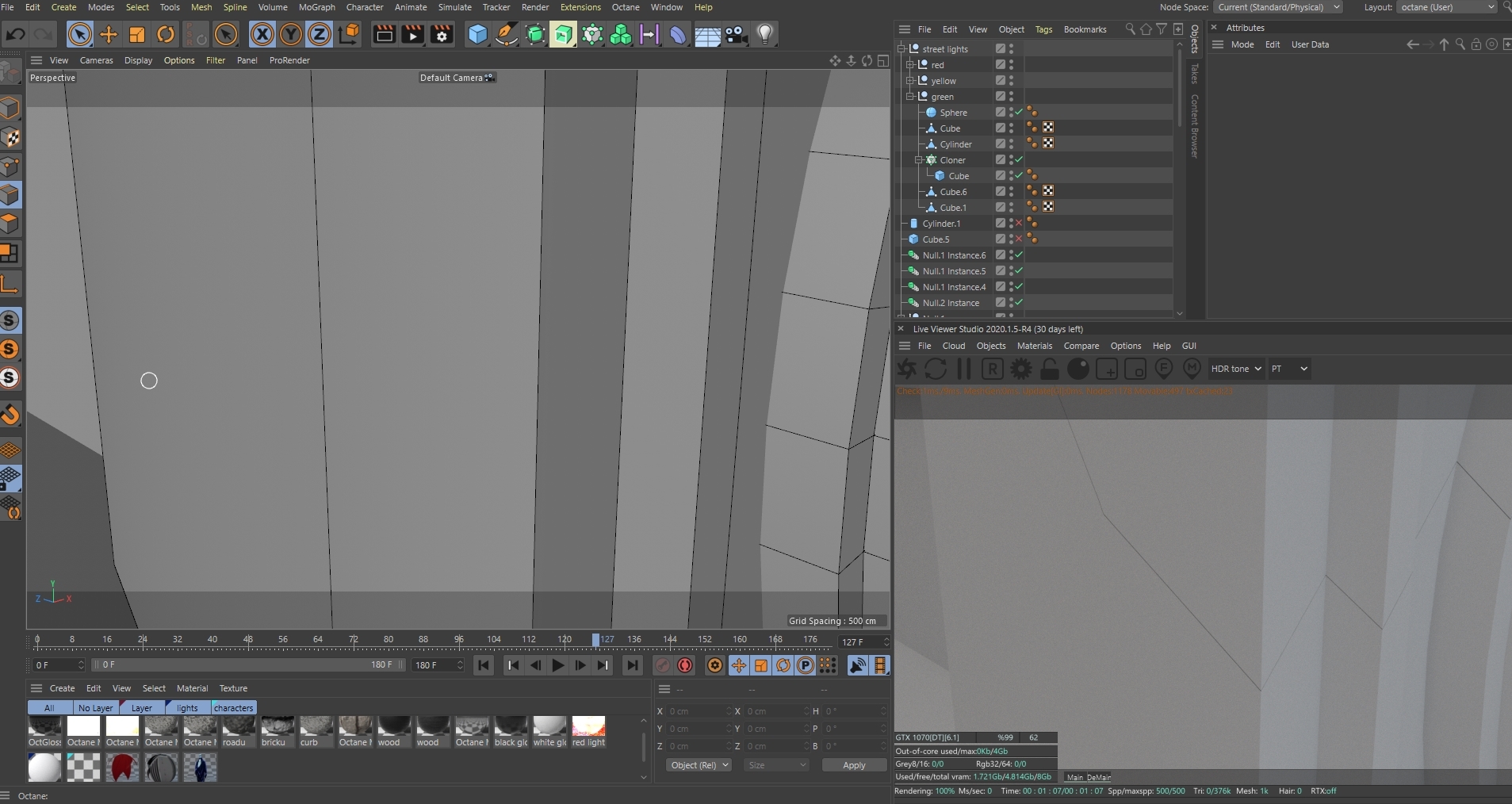

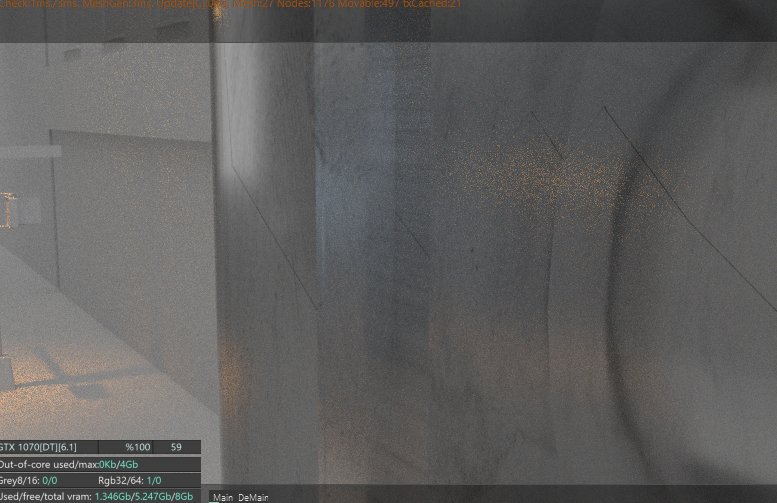

So after modelling a simple object I noticed there's some sort of cracking on the model in the live viewer. Does anyone know the solution for this? Cracks also appear over textures. Image Image
Top
User avatar
bepeg4d
Octane Guru
Posts: 10368
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:
Contact bepeg4d

What is the scale of the object?
Please check the Ray Epsilon value in Kernel panel.

ciao Beppe
Top
User avatar (Default)
oshi
Licensed Customer
Posts: 11
Joined: Sun Oct 04, 2020 8:41 pm

bepeg4d wrote:What is the scale of the object?
Please check the Ray Epsilon value in Kernel panel.

ciao Beppe
yes, thank you! The ray epsilon value seemed to be what was causing the issues. Answering your question; object is a regular size about 100cm tall and 30 wide.
Top
User avatar
lanklaf
Licensed Customer
Posts: 79
Joined: Sat Dec 23, 2017 4:22 pm

oshi wrote: yes, thank you! The ray epsilon value seemed to be what was causing the issues. Answering your question; object is a regular size about 100cm tall and 30 wide.
I think you mean 100 meters by 30 meters :D
Standard Grid spacing in 50 cm,
you have - 500 cm.

Check your scale here:

System:
i7 8700K / RTX 2020 / 16GB RAM
