Octane render revit plugin not showing any Materials

[azims]

Hi Paul, Otoy team,

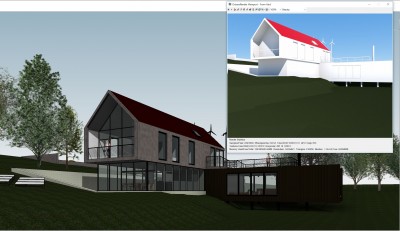

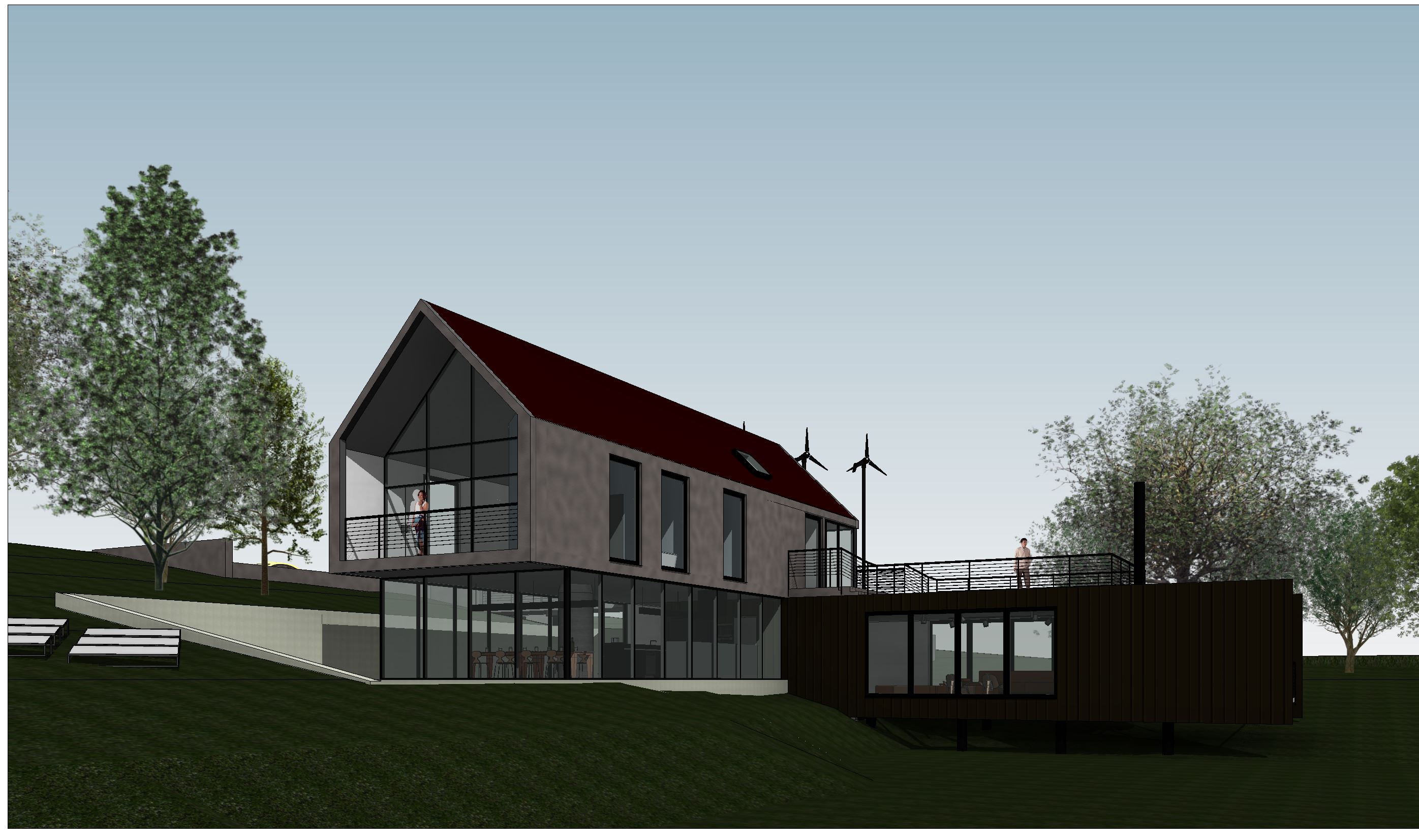

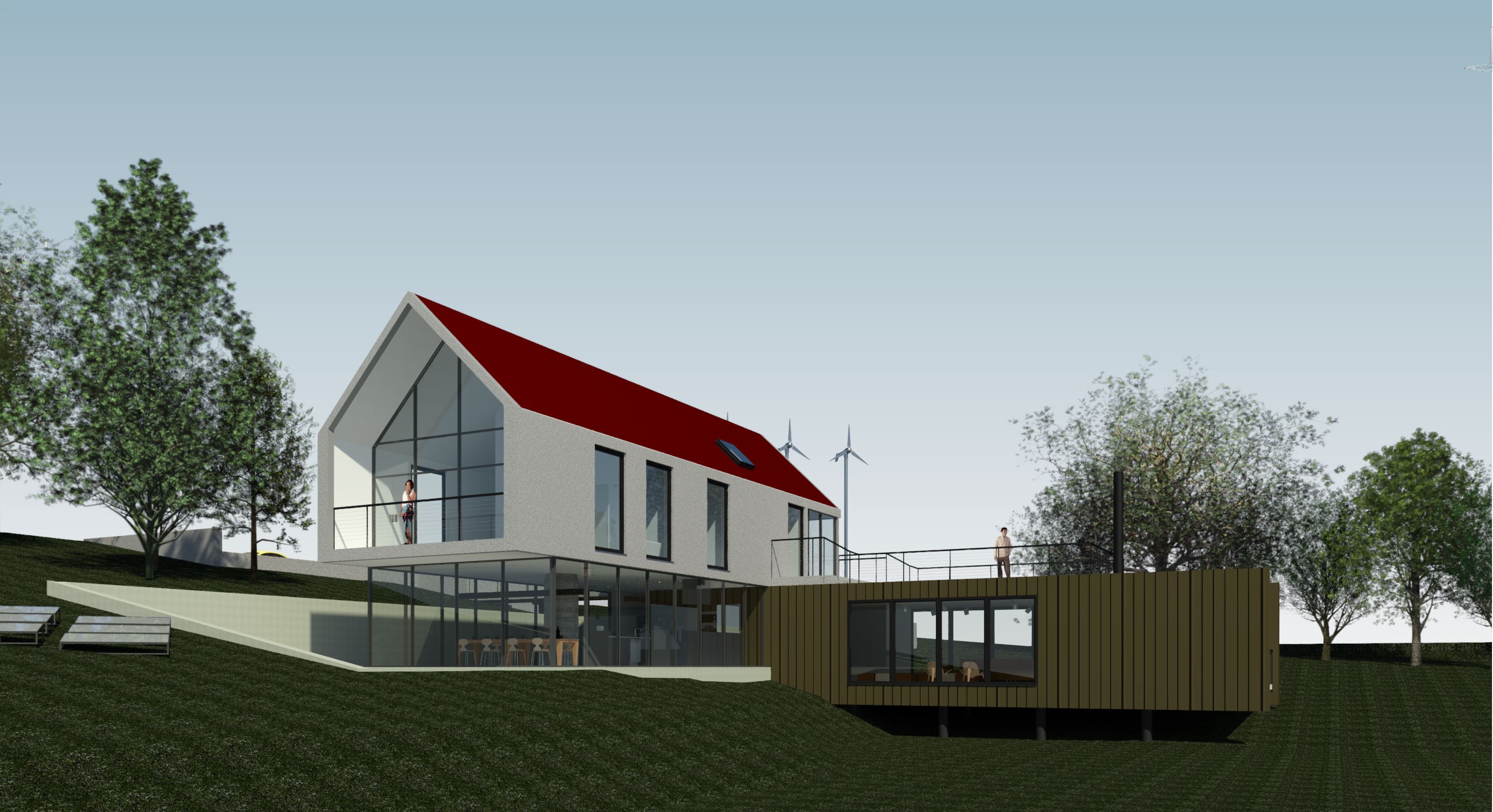

I am trying to use Octane studio revit plugin (2018.4.02.1.58) with revit 2018.3 and the materials are not showing up in the render. I can see materials in revit 'realistic' and 'raytracing' views but not in the octane viewport. Please see attached screen captures and advise.

Thank you,

Azims

[face_off]

Hi. Can you please try the latest version of the plugin from viewtopic.php?f=61&t=71092

You may need to right-click the Material tree and Reconvert All Materials From Debit.

Paul

[azims]

Hi Paul,

I tried downloading and installing the latest 2020.1.2.61 Studio/ Enterprise. However I got an error (see screen capture 5). As I only have revit 2018.3, I pointed it to the 'C:\Program Files\Autodesk\Revit 2018' folder. However when I open revit, there is no Octane button on the 'Add-in' tab. I tried moving the octane.dll and other files etc, into the Revit 2018>Addins folder but no luck.

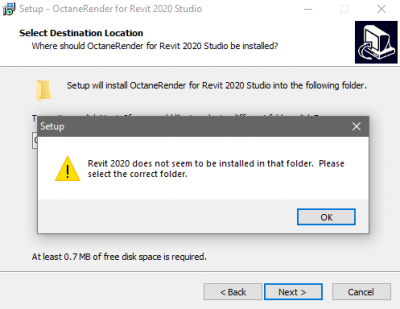

Error installing octane for revit 2020.1.2.61 Studio/ Enterprise

I also tried installing the Revit2018.1.0.60 Studio/ Enterprise (stable release) on a different computer to see if the materials would work. I got an error message (see screen capture4).

Error when loading Revit2018.1.0.60 Studio/ Enterprise (stable release) on a different computer


Please help. Note that octane standalone and octane for unity load and run flawlessly on both computers, only the revit plugin is having issues.

Thanks,

[face_off]

Hi. You cannot install the Revit 2020 version of the plugin for Revit 2018. The plugin version needs to match you Revit version.

Paul

[azims]

Hi Paul,

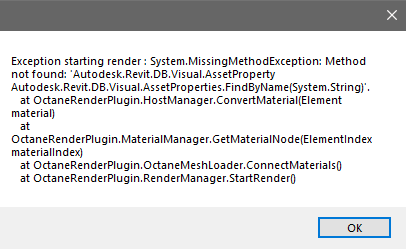

When I try to install the OctaneRenderForRevit_2018.1.0.60, I am getting the attached error message 'System missing methord exception....' (see attached screen capture). Please help.

Thanks,
Azims


[face_off]

Hi. That error usually means that you do not have Revit 2018 SP3 installed. Can you please double check you have that service pack installed?

Thanks

Paul

[azims]

Thank you.
