Displacement geometry problem

Sub forum for bug reports
Forum rules
Before posting a bug report, please check the following:
1. That the issue has not already been disclosed
2. That the issue is specific to this plugin, and not Octane in general (Try reproducing it in Standalone)
Bugs related to the Octane Engine itself should be posted into the Standalone Support sub-forum.

All bug reports should include the information below, along with a detailed description of the issue and steps to reproduce it.
A. Operating System, including version (i.e. Win 7, OSX 10.11.2, Ubuntu 14.04, etc.)
B. Graphics Card(s) model (i.e. GTX 580 - 3GB, TITAN, etc.)
C. RAM Capacity (i.e. 6 GB)
D. Nvidia driver version (i.e. 7.50, 7.5.22)
E. OctaneRender Standalone version, if installed (i.e. 2.24.2, 2.23, etc.)
F. OctaneRender plugin version (i.e. v2.25 - 2.21)
G. Host application version, including build number if available (i.e. 3ds Max 2016 Build 18.0)
Post Reply
User avatar (Default)
vitgaus
Licensed Customer
Posts: 54
Joined: Mon Aug 05, 2013 5:08 am

Hi,

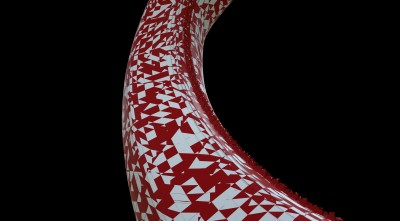

I made two identical objects and applied a displacement map to one of them. The most of displacement texture is black, meaning no displacement. The result is unexpected. See pics below. How to fix?

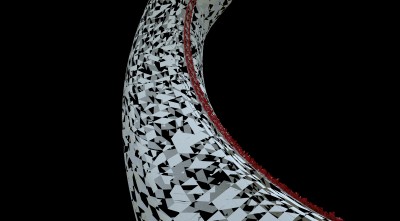

Second picture is same but with opacity map (same texture as for displacement).

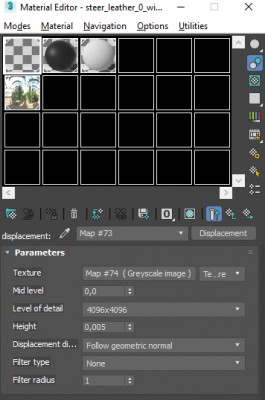

The displacement setting are also attached.
Top
User avatar
paride4331
Octane Guru
Posts: 3808
Joined: Fri Sep 18, 2015 7:19 am

Hi vitgaus,
you can not work with coplanar surfaces; moreover maybe you have problems with smooth objects, normal and probably some issues with Unwrapping.
you should set mid level to 0.5 best using 32bit texture.
Regards
Paride
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
Top
User avatar (Default)
vitgaus
Licensed Customer
Posts: 54
Joined: Mon Aug 05, 2013 5:08 am

Well, those are two independent surfaces, although identical, meaning I can do Unwrapping with no problems. But trick with mid level works fine, THX!

Actually this is the car steer wheel model and I tryed to make stitches with displacement, as shown here:

https://www.behance.net/gallery/7219448 ... riment-CGI
Top
