Creating seamless material

[franchais]

Hi,

I've been trying to create seamless/non tiling grass material. I've tried using turbulence and the new uvw mapping but I can still see the tiles.

Any texture gurus out there that can help me out?

Thanks

[HHbomb]

you need to combine multiple turbulence textures with different scales and orientations, there will still make tiles but at very far pov

[Renart]

You can use an OSL Texture node:

Code: Select all

// Shader      : Texture Tiling OSL shader
// Author      : Hayssam Keilany
//
// Description :
//
// Meant to "break" the repeating patterns on textures
// Very simple version, could be improved by anyone if they feel like it :)

// REMINDER : YOU NEED TO USE "OSL UV" IN THE PROJECTION NODE

#include <octane-oslintrin.h>

color dissolve(color tex1, color tex2, float mix, float noisescale)
{
    float rnd = noise("noise", P * noisescale);
    color c;

    if(rnd < mix)
        c = tex2;
    else
        c = tex1;

    return c;
}

shader Texture_Tiling
(
  color texinput = color(1,1,1)
  [[string label = "Input (Texture)"]],

  float scale=4.0
  [[string label = "Tiling Scale", float min=0.0, float sliderexponent=4,float max=10]],

  int pixelate = 1
  [[string label = "Enable Pixelation",string widget = "boolean"]],

  int blurmode = 0
  [[string label = "Enable Blur Mode",string widget = "boolean"]],

  float blursize = 0.5
  [[string label = "Blur Size",float min = 0.0, float sliderexponent=4, float max=1]],

  float noisescale = 6
  [[string label = "Noise Size",float min = 0.0, float sliderexponent=4, float max=100]],

  output color c=0
)
{
  float u_tile; float v_tile;

  // "pixelize" the texture
  if (pixelate)
  {
      u_tile = floor(u * scale);
      v_tile = floor(v * scale);
  }
  else
  {
      u_tile = u;
      v_tile = v;
  }
  // offset it
  // can be changed to "cell" but voronoi looks more natural
  float u_jit = noise("voronoi", u, v_tile * scale + v_tile);
  float v_jit = noise("voronoi", v, u_tile * scale + u_tile);

  // add with untouched UV
  float xoffset = u + u_jit;
  float yoffset = v + v_jit;

  // declare the textures to blur
  color tex1 = _evaluateDelayed(texinput, xoffset           , yoffset           );
  color tex2 = _evaluateDelayed(texinput, xoffset+blursize  , yoffset           );
  color tex3 = _evaluateDelayed(texinput, xoffset           , yoffset + blursize);
  color tex4 = _evaluateDelayed(texinput, xoffset - blursize, yoffset - blursize);

  // choose between dissolve or blur
  if (blurmode) c = (tex1 + tex2 + tex3 + tex4) / 4;
  else
  {
      color c1 = dissolve(tex1, tex2, 0.5, noisescale);
      color c2 = dissolve(c1  , tex3, 0.5, noisescale);
      c        = dissolve(c2  , tex4, 0.5, noisescale);
  }
}

Just plug your map in the Input and don't forget to change the projection to OSL

[franchais]

thanks guys. How do I use the OSL text you have shown below? sorry abit new to this. I tried looking for the OSL node on standalone but I couldn't find it?

[bepeg4d]

Hi franchais,
you need 3.08test 6, to try out OSL nodes.

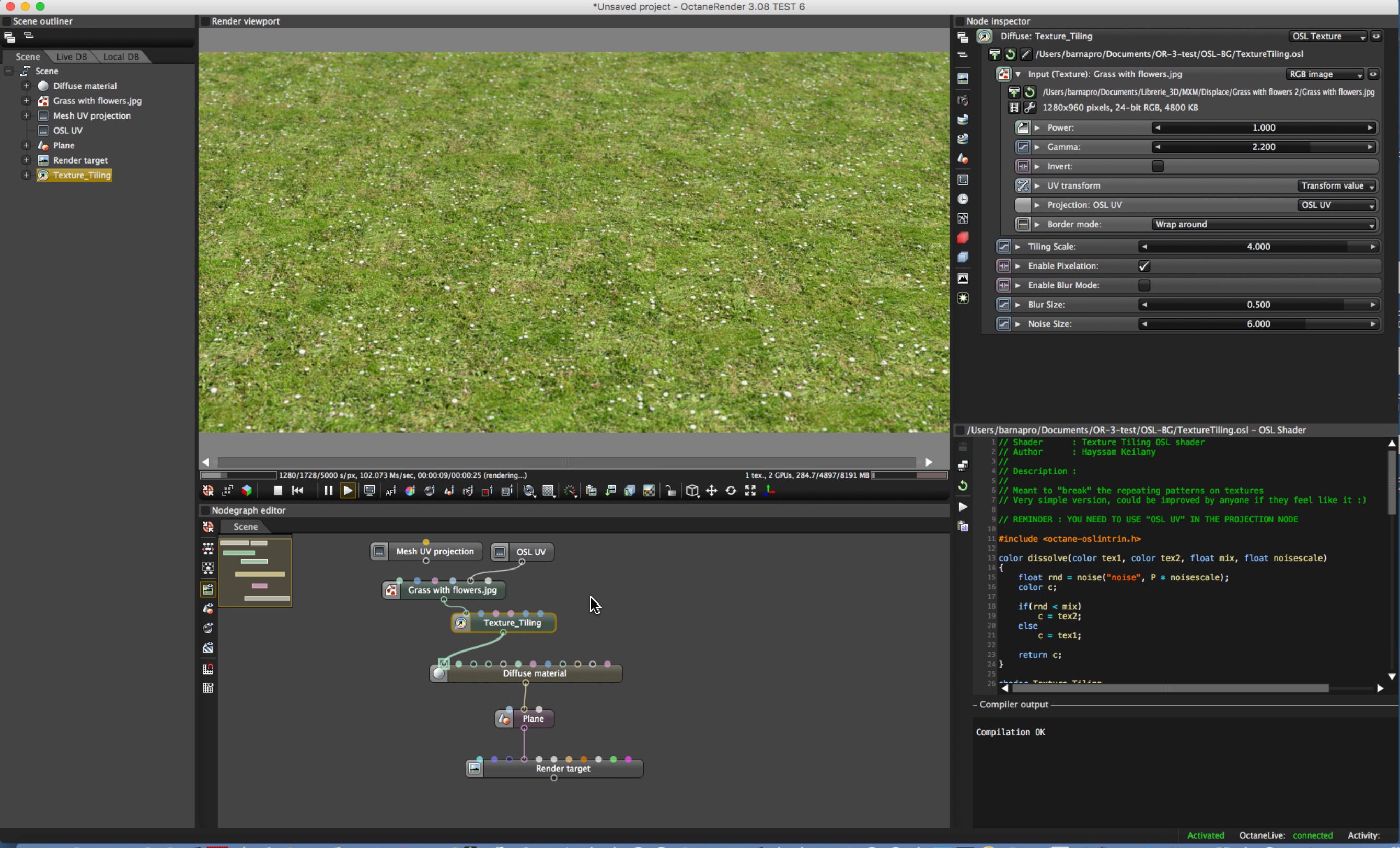

before

after

texturetiling.orbx.zip

(2.5 MiB) Downloaded 404 times

ciao beppe

[franchais]

Thanks Bepe, that worked. Just one thing, where did you gett the osl editor on the bottom right of your image?

[bepeg4d]

Hi franchais,
you need to enable the Script development option in Preferences/Application:

ciao beppe

[v-cube]

Hi bepeg4d,

I just tried this out and I have to say that this is totally A W E S O M E

That is for me like a real new feature of Octane! I tried this aproach with very bad tiling textures and got acceptable outcome!

I think this is a game changer for texturing with with bitmaps... and I could imagine it is just the beginning...

I really hope It will work within the Rhino plugin soon ...

thank you so much for posting!

best

Andreas

[bepeg4d]

Hi Andreas,
happy to hear that you are having fun with OSL nodes
Thanks to Hayssam Keilany for sharing this great script
Happy GPU-OSL Rendering,
ciao beppe
