Hi everyone,

Currently exporting VDB's I have created in Houdini for rendering in Octane for C4D.

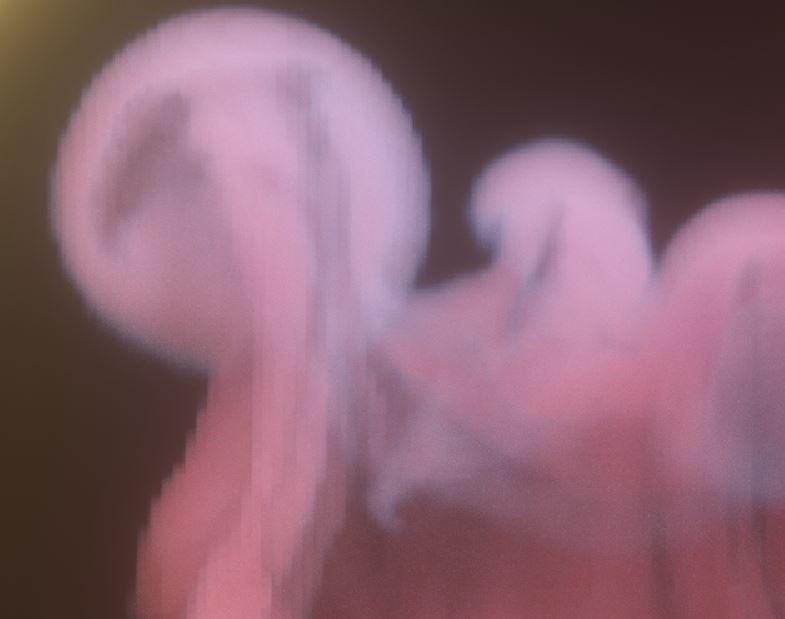

Does anyone have any recommendations on best render settings to get maximum quality. Currently getting a lot of artifacts when rendering, trying to establish if thats from the VDB files or my poor choice in render settings etc. I have attached some pictures of what I mean. Any advice is welcome, cheers :)


Andrew
Attachments
Top
User avatar (Default)
coilbook
Licensed Customer
Posts: 3032
Joined: Mon Mar 24, 2014 2:27 pm

The vdb pixelation is due to low resolution grid cells
Top
User avatar (Default)
AJM0123
Licensed Customer
Posts: 22
Joined: Mon Feb 01, 2016 10:16 pm

coilbook wrote:The vdb pixelation is due to low resolution grid cells
Hi there,

Is this something I need to amend in Houdini or Octane? Thanks,

Andrew
Top
User avatar (Default)
coilbook
Licensed Customer
Posts: 3032
Joined: Mon Mar 24, 2014 2:27 pm

AJM0123 wrote:
coilbook wrote:The vdb pixelation is due to low resolution grid cells
Hi there,

Is this something I need to amend in Houdini or Octane? Thanks,

Andrew

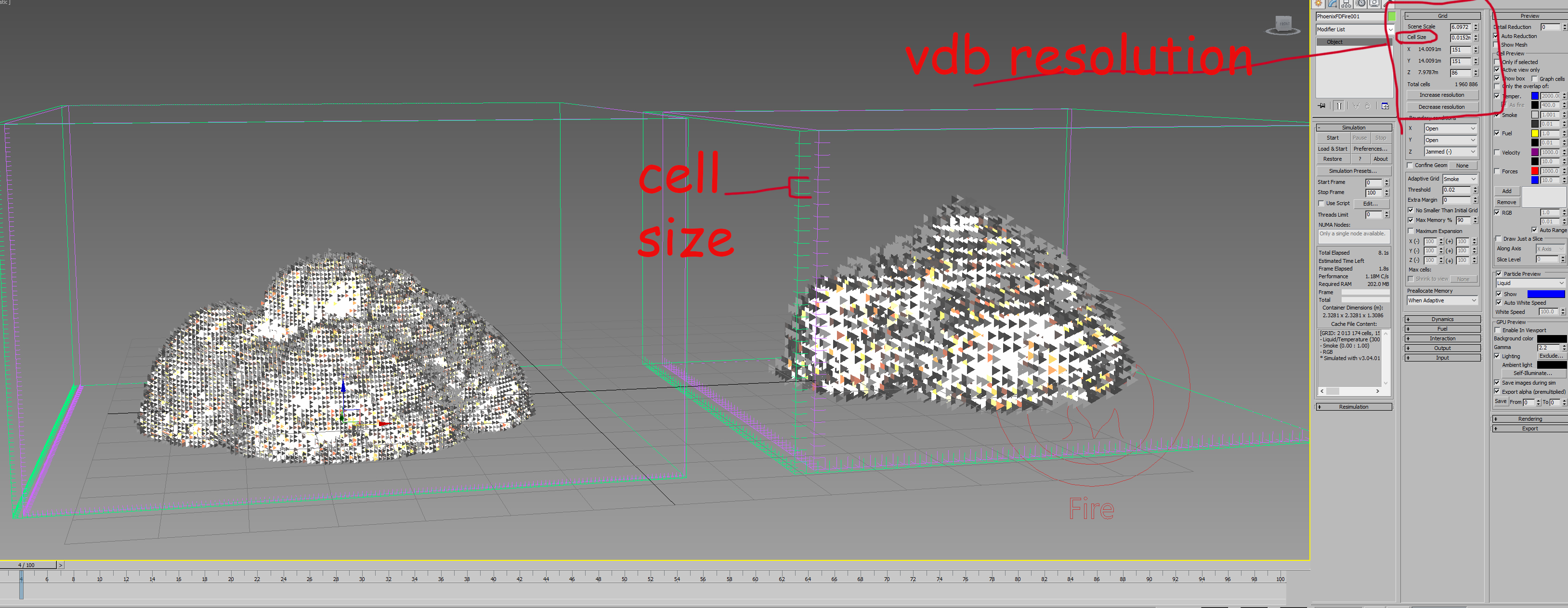

Hi I never used Houdini we are singing 3ds max with Phoenix FD In the picture you can see grid cell size for better resolution. If you are planning to do upclose fire rendering you should increase resolution. Also in octane material (Volume Medium) where it says volume step length make it 0.3 - 0.5 for more detailed fire/explosion
Attachments
vdb res.jpg
