triplanar and bump

Postby WhyGee » Sat Apr 22, 2017 12:11 pm

WhyGee Sat Apr 22, 2017 12:11 pm
Hi,
I was wondering if triplanar projection is supported with bump? It seems that it does something with very high values but the projection seems incorrect through the bump. (diffuse works fine)
(latest build 3.06.0.4)
Thanks
Yaniv
WhyGee
Licensed Customer
Licensed Customer

Posts: 171
Joined: Sun Jun 22, 2014 9:10 am

Re: triplanar and bump

Postby calus » Mon Apr 24, 2017 6:11 am

calus Mon Apr 24, 2017 6:11 am
WhyGee wrote:Hi,
I was wondering if triplanar projection is supported with bump? It seems that it does something with very high values but the projection seems incorrect through the bump. (diffuse works fine)
(latest build 3.06.0.4)
Thanks
Yaniv

I can't say for the Houdini plugin,
but in Octane Core 3.06, bump texture with triplanar projection is supported and works perfectly .
Pascal ANDRE
--------------------
Maya 2019, Windows 7, 128 GB RAM
4x GTX 1070, driver 430.39
--------------------

--------------------
Join MAYA OCTANE USERS Skype discussion here :
https://join.skype.com/LXEQaqqfN15w
--------------------
calus
Licensed Customer
Licensed Customer

Posts: 1306
Joined: Sat May 22, 2010 9:31 am
Location: Paris

Re: triplanar and bump

Postby juanjgon » Mon Apr 24, 2017 7:53 am

juanjgon Mon Apr 24, 2017 7:53 am
It can be a problem already fixed in the final Octane 3.06 core. I want to release a new plugin build with this core this week, but if you want to share a sample scene with this problem, I could test it here with it to be sure.

Thanks,
-Juanjo
Computer Graphics Software Developer
Octane plugin development and support: LightWave and Houdini
User avatar
juanjgon
Octane Plugin Developer
Octane Plugin Developer

Posts: 7795
Joined: Tue Jan 19, 2010 12:01 pm
Location: Spain

Re: triplanar and bump

Postby WhyGee » Tue Apr 25, 2017 11:35 am

WhyGee Tue Apr 25, 2017 11:35 am
Hi,

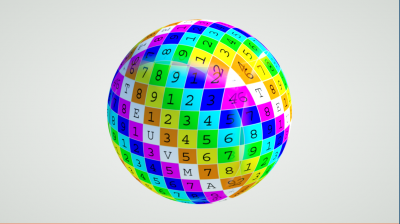

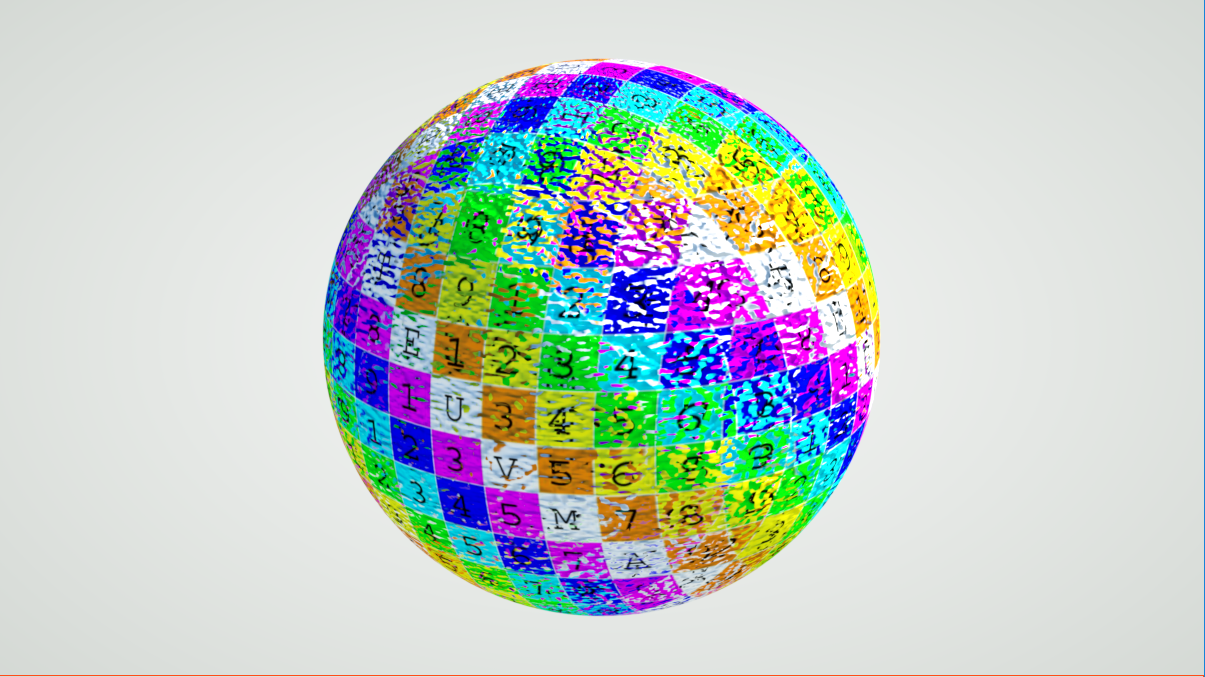

I've attached a sample scene with 2 renders.
It's not that bump doesn't work, it's that it seems like the triplanar projection (connected to diffuse) is sampling the normals after the bump is applied. I could see why this may be useful in some situations but usually I wouldn't expect the texture to change because of the bump. It would be nice if it was an option on the triplanar node and not the default behavior.

Thank you
Yaniv
Attachments
triplanar_bump_test1.rar
HIP + textures
(3.74 MiB) Downloaded 118 times
WhyGee
Licensed Customer
Licensed Customer

Posts: 171
Joined: Sun Jun 22, 2014 9:10 am

Re: triplanar and bump

Postby WhyGee » Tue Apr 25, 2017 5:39 pm

WhyGee Tue Apr 25, 2017 5:39 pm
I've also done another test where I bake out a triplanar projection. comparing the triplanar projection and the resulting baked texture, in the diffuse channel they look the same. When connected to bump, they behave differently, aside from giving a different bump look, the triplanar requires multiplying the intensity by factors of tens.
WhyGee
Licensed Customer
Licensed Customer

Posts: 171
Joined: Sun Jun 22, 2014 9:10 am

Re: triplanar and bump

Postby juanjgon » Tue Apr 25, 2017 9:23 pm

juanjgon Tue Apr 25, 2017 9:23 pm
OK, yes, I can see the problem now. As you say, it seems an Octane limitation, that is computing the triplanar mapping using the shading normal before it has been perturbed by the bump or normal maps. I'll ask the Octane developers about this feature.

Thanks,
-Juanjo
Computer Graphics Software Developer
Octane plugin development and support: LightWave and Houdini
User avatar
juanjgon
Octane Plugin Developer
Octane Plugin Developer

Posts: 7795
Joined: Tue Jan 19, 2010 12:01 pm
Location: Spain

Re: triplanar and bump

Postby abstrax » Tue Apr 25, 2017 10:59 pm

abstrax Tue Apr 25, 2017 10:59 pm
WhyGee wrote:Hi,
I've attached a sample scene with 2 renders.
It's not that bump doesn't work, it's that it seems like the triplanar projection (connected to diffuse) is sampling the normals after the bump is applied. I could see why this may be useful in some situations but usually I wouldn't expect the texture to change because of the bump. It would be nice if it was an option on the triplanar node and not the default behavior.

Thank you
Yaniv

Yes, that seems to be an oversight. The box projection also uses the interpolated geometry normal and not the bump mapped normal. We will change the tri-planar texture node to use the interpolated geometry normal, too, unless there is a very good reason to make it optional, in which case we could make it selectable.
In theory there is no difference between theory and practice. In practice there is. - Yogi Berra
User avatar
abstrax
OctaneRender Team
OctaneRender Team

Posts: 5151
Joined: Tue May 18, 2010 11:01 am
Location: Auckland, New Zealand

Re: triplanar and bump

Postby WhyGee » Thu Apr 27, 2017 11:25 am

WhyGee Thu Apr 27, 2017 11:25 am
the option to have it as is is not something I see a real use for other than just a variation on how the texture is sampled but maybe someone will find it useful. Normally that is definitely not the desired effect.

Thank you!
Yaniv
WhyGee
Licensed Customer
Licensed Customer

Posts: 171
Joined: Sun Jun 22, 2014 9:10 am
