hi,
i'm doing a project of a building interior that has some gold surfaces. Sometimes these are located behind a glass. Here's my problem: i'm rendering in DL ambient occlusion lighting in order to have short rendering times (i'm doing some stills and a 3 minutes animation video), when the gold material is behind a glass it just appear black. Fake shadows in the specular material is checked. I tried some workaround but they were not convincing. The main problem, imho, it's that to get the "gold effect" you have to set up a glossy material with black diffuse and yellow/orange specular so when this thing it's behind a glass it just shows the diffuse color.

that's some pics:

gold with no glass
ni vetro.png

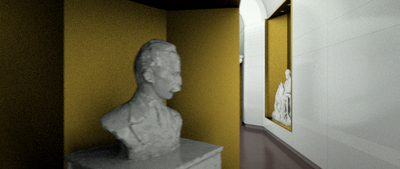

gold with glass
con vetro.png

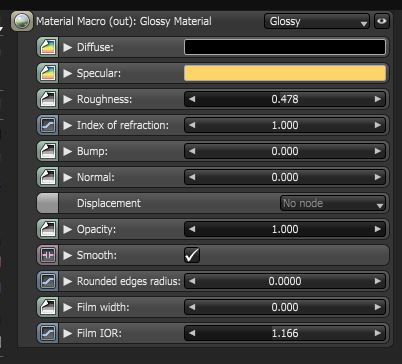

gold material

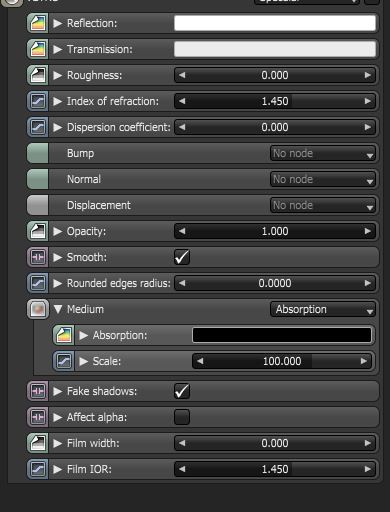

glass
someone knows some tweak to solve this?

thank you
User avatar
bepeg4d
Octane Guru
Posts: 10356
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:

hi,
try to slightly increase the glossy and specular depth in the kernel settings until you find the correct behavior ;)
ciao beppe
