I'm experimenting a bit with displacement.
The results are really interesting - but is displacement rendering supposed to be extremely slow compared to particles rendering, for instance?

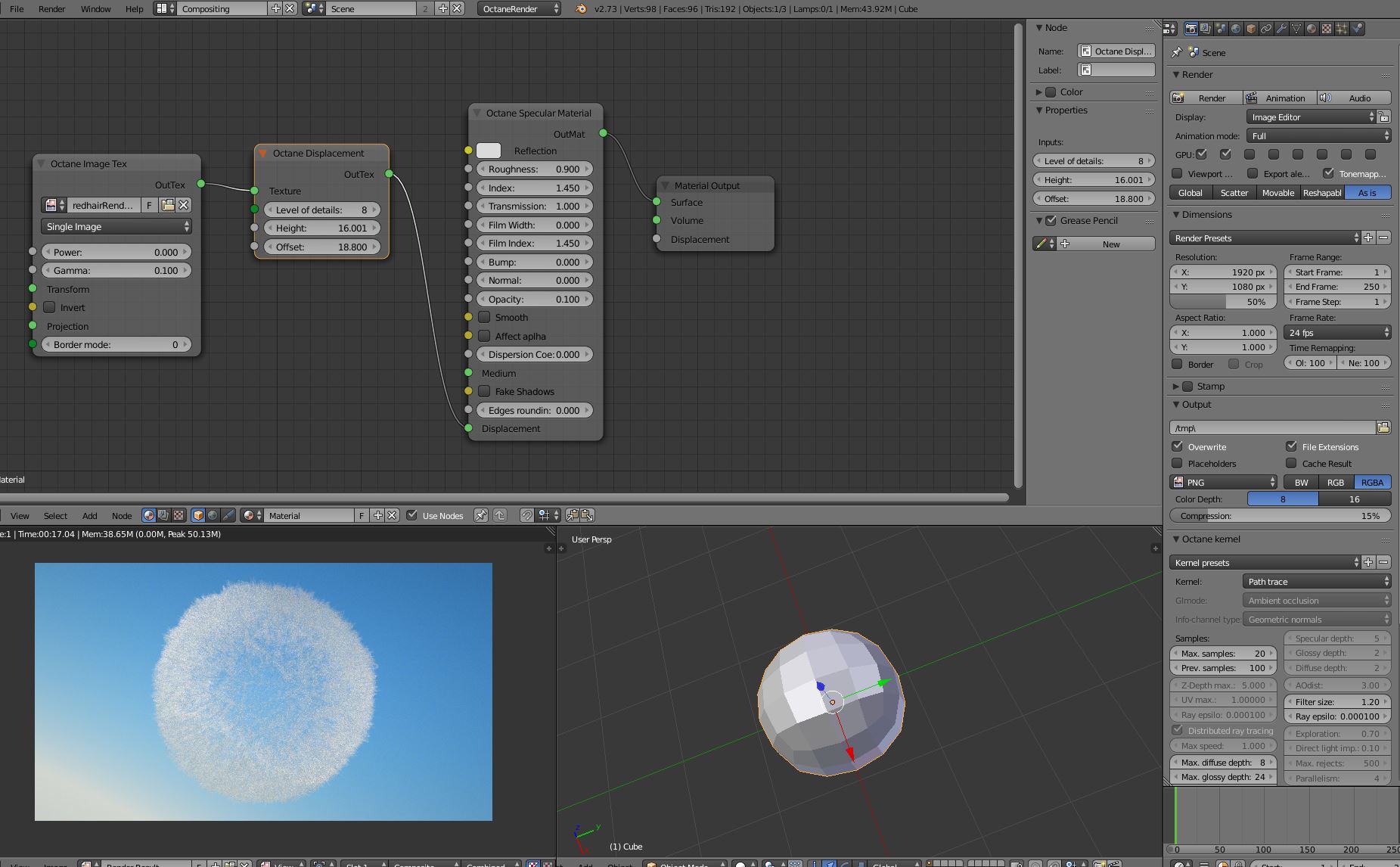

The simple sphere/displacement image in the screenshot takes 4-5 times longer to render than a complex 1GB scene with a lot of hair systems.
Basic displacement question (very slow render)
- justavisitor
- Posts: 242
- Joined: Sat Oct 05, 2013 5:34 pm
- justavisitor
- Posts: 242
- Joined: Sat Oct 05, 2013 5:34 pm
OK, it turns out that Displacement, Path Tracing and Specular Material is an extremely demanding combination (and for some reason much more demanding than in Particles rendering).
Direct Light combined with a Diffuse shader, on the other hand, cuts render times down to a manageable level.
And it still looks really great.
EDIT: Please see my post below for a more correct description of what I did wrong.
Direct Light combined with a Diffuse shader, on the other hand, cuts render times down to a manageable level.
And it still looks really great.
EDIT: Please see my post below for a more correct description of what I did wrong.
Last edited by justavisitor on Wed Apr 08, 2015 8:15 am, edited 1 time in total.
Latest OctaneRender for Blender. Windows 10, i7 quad 3.7GHz, 16GB, 2xTitan.
hello, if you want I can do a test. if you send me the file I tell you how long it takes on my system.
hello, simdal
hello, simdal
Win 10 64, 4xGTX780ti 8xTeslaK80, Octane, Blender, Archicad
- justavisitor
- Posts: 242
- Joined: Sat Oct 05, 2013 5:34 pm
Hi Simdal,
That's very kind of you, but I now know exactly what made the scene so heavy:
Contrary to what I mentioned in my previous post, it was not only the combination of a Specular Material and Path Tracing. What really took time was the fact that Transmission was turned up to 1.
When I turned Transmission down, render times also went dramatically down, to about 1/20.
And the image I used was also particularly demanding when Height was turned up to about 15.000, because it almost made the structure look like hair.
So, all in all, it was a series of beginner mistakes...
And Displacement is really amazing.
That's very kind of you, but I now know exactly what made the scene so heavy:
Contrary to what I mentioned in my previous post, it was not only the combination of a Specular Material and Path Tracing. What really took time was the fact that Transmission was turned up to 1.
When I turned Transmission down, render times also went dramatically down, to about 1/20.
And the image I used was also particularly demanding when Height was turned up to about 15.000, because it almost made the structure look like hair.
So, all in all, it was a series of beginner mistakes...
And Displacement is really amazing.
Latest OctaneRender for Blender. Windows 10, i7 quad 3.7GHz, 16GB, 2xTitan.
Well, then good job. if you need I'm available. hello
Win 10 64, 4xGTX780ti 8xTeslaK80, Octane, Blender, Archicad
- justavisitor
- Posts: 242
- Joined: Sat Oct 05, 2013 5:34 pm
Thank you very much!simdal wrote:Well, then good job. if you need I'm available. hello
Latest OctaneRender for Blender. Windows 10, i7 quad 3.7GHz, 16GB, 2xTitan.
