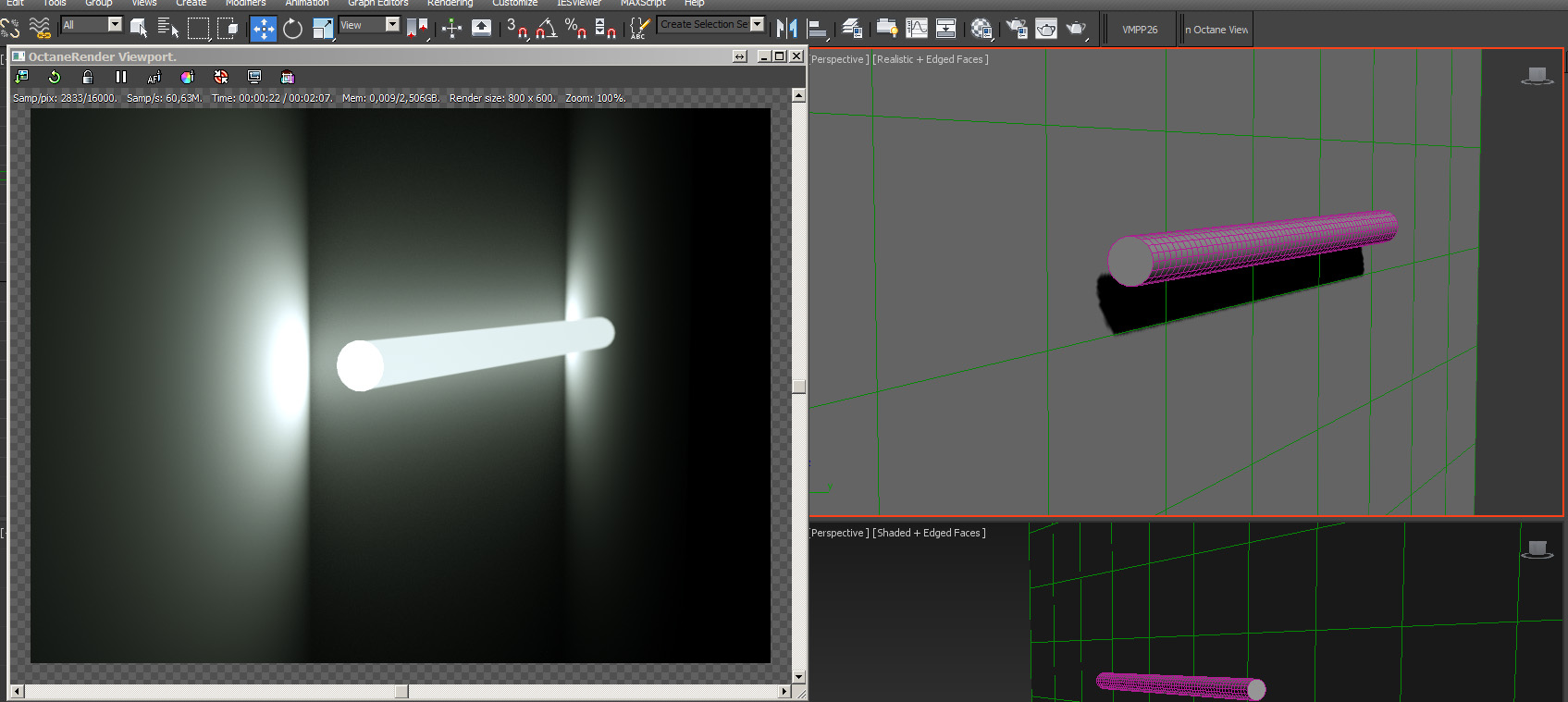

i am simulating a light tube parallel to a wall.
The light tube has a black body emission in the emission slot.
for some reason the emission is hundreds of times stronger at the ends of the tube.
Does any one know why?
Attachments
Intel i7-970 @3,20 GHz / 24 GB RAM / 3 x EVGA GTX 580 - 3GB
User avatar
glimpse
Licensed Customer
Posts: 3740
Joined: Wed Jan 26, 2011 2:17 pm
Contact:

it has something to do with polygon sizes..-I don't use mesh emitters so often (just on single poly planes, to mimic softboxes),
but I've noticed that if I scale them or tweak their size I have to tweak values too =)
User avatar
Goldisart
Licensed Customer
Posts: 780
Joined: Sat Oct 26, 2013 8:47 am

////

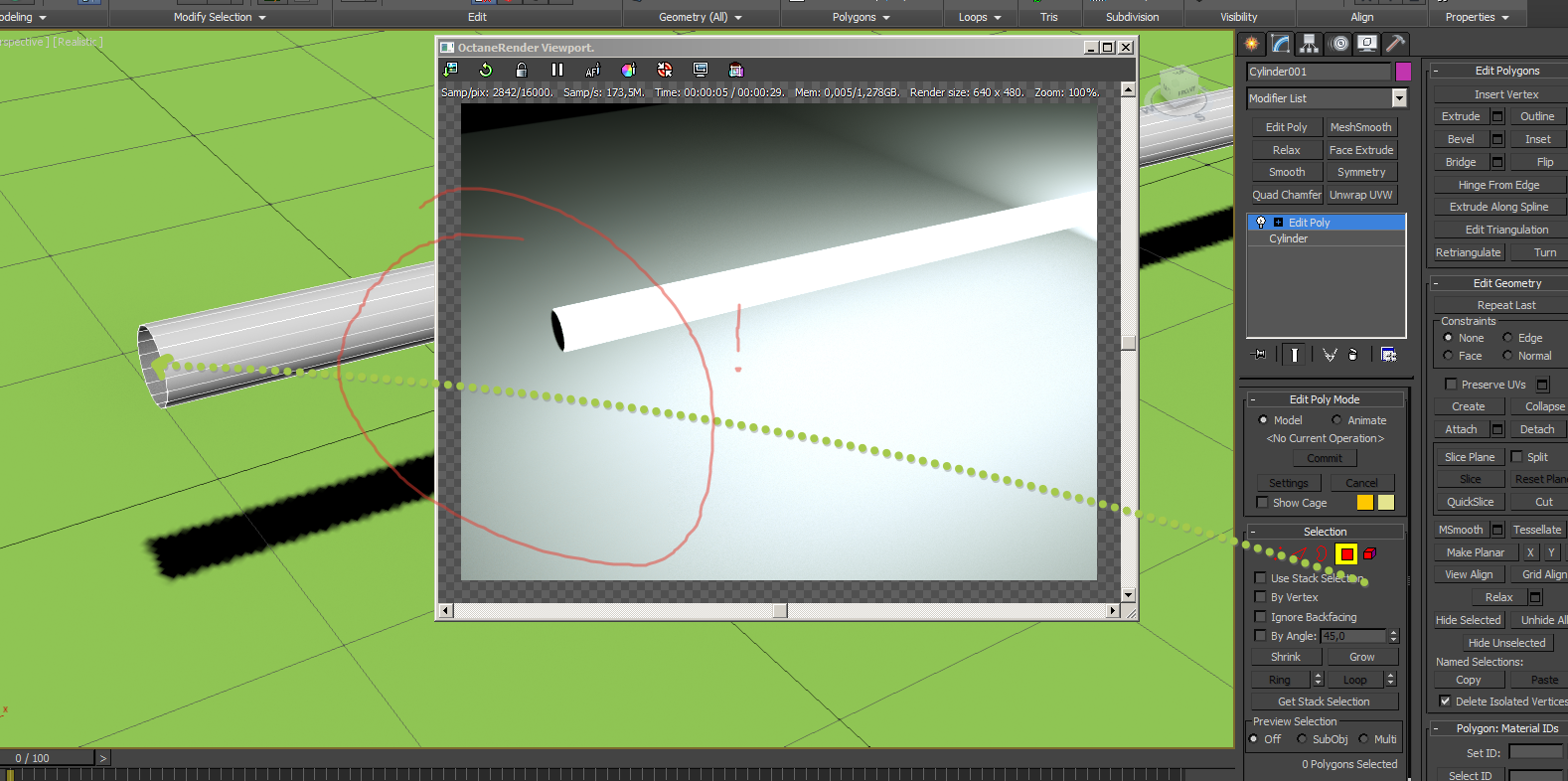

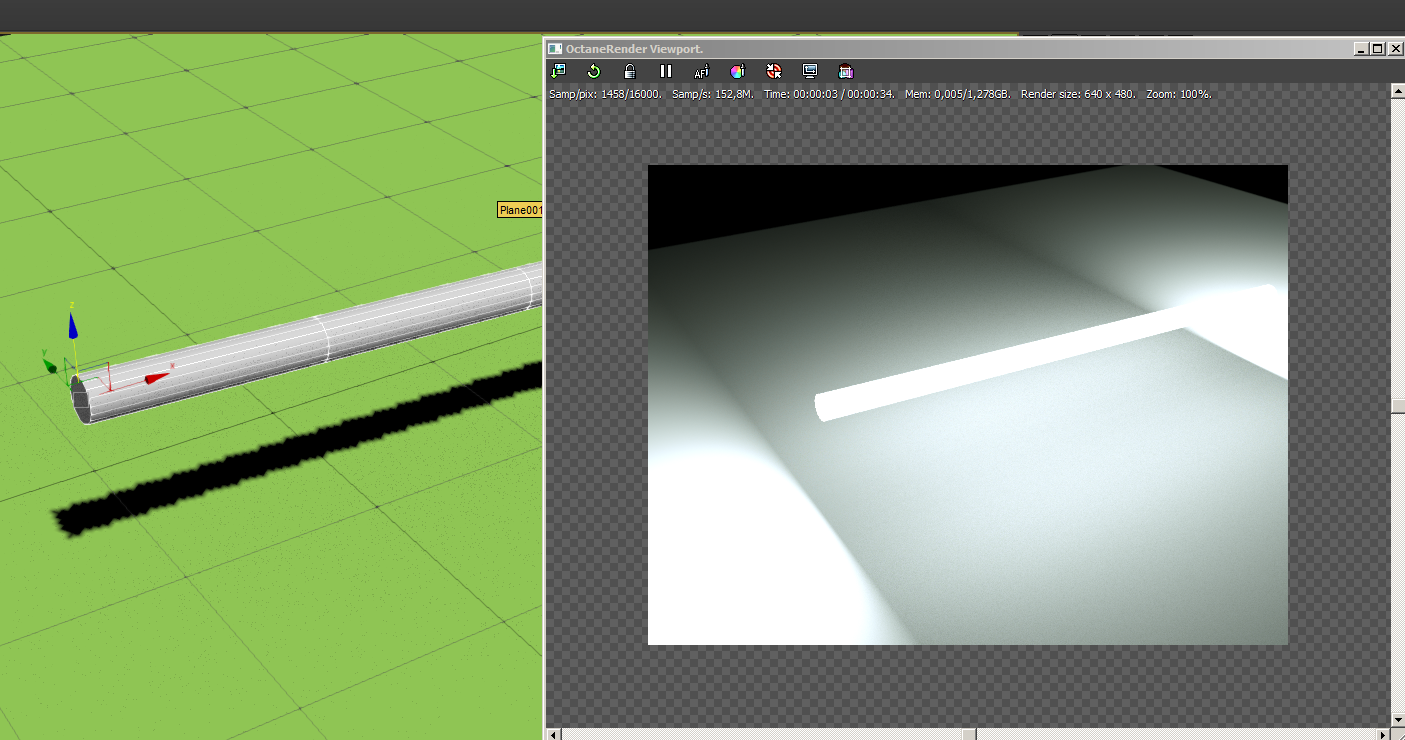

Attachments
2014-10-13 18-22-24 OctaneRender Viewport..png
2014-10-13 18-22-55 OctaneRender Viewport..png
gueoct
Licensed Customer
Posts: 402
Joined: Mon Jul 11, 2011 3:10 pm

glimpse wrote:it has something to do with polygon sizes..-I don't use mesh emitters so often (just on single poly planes, to mimic softboxes),
but I've noticed that if I scale them or tweak their size I have to tweak values too =)

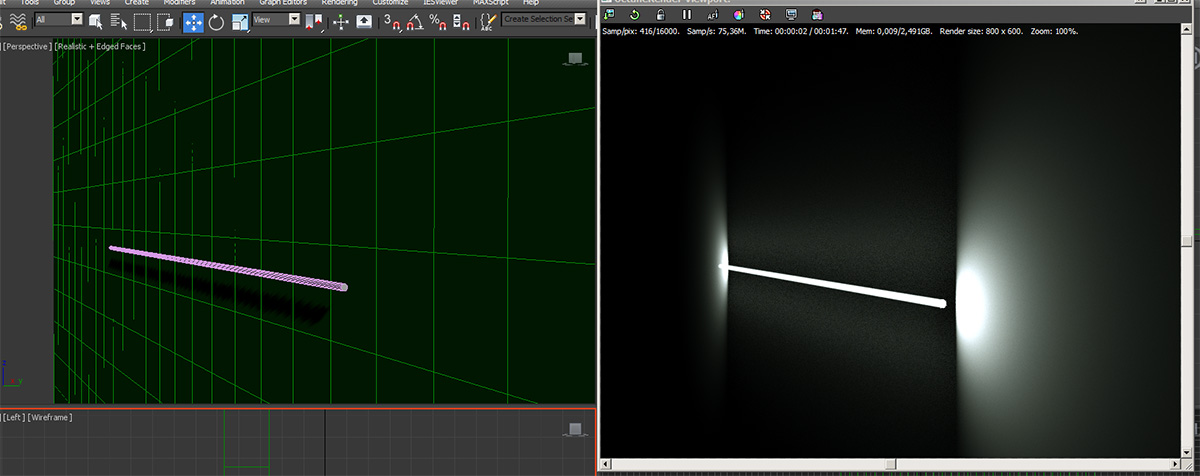

i increased the number of height segments on that cylinder to have equal polygon size - without luck...
Attachments
Intel i7-970 @3,20 GHz / 24 GB RAM / 3 x EVGA GTX 580 - 3GB
User avatar
Karba
OctaneRender Team
Posts: 2300
Joined: Sat Jun 11, 2011 9:05 am

Set the same material id to every cylinder part.
gueoct
Licensed Customer
Posts: 402
Joined: Mon Jul 11, 2011 3:10 pm

Karba wrote:Set the same material id to every cylinder part.
Thanks! it works.
BUT: What does it mean?

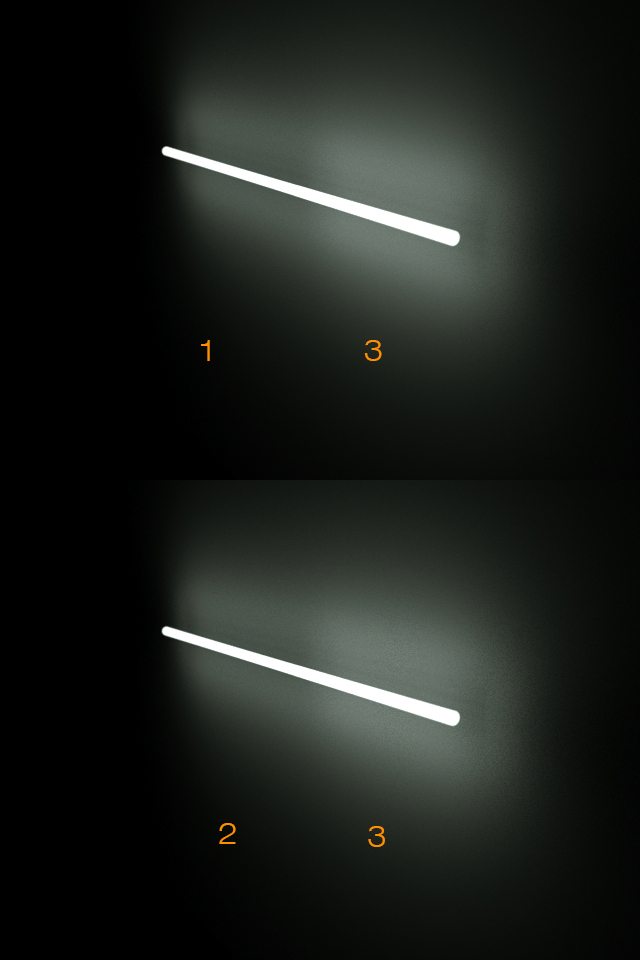

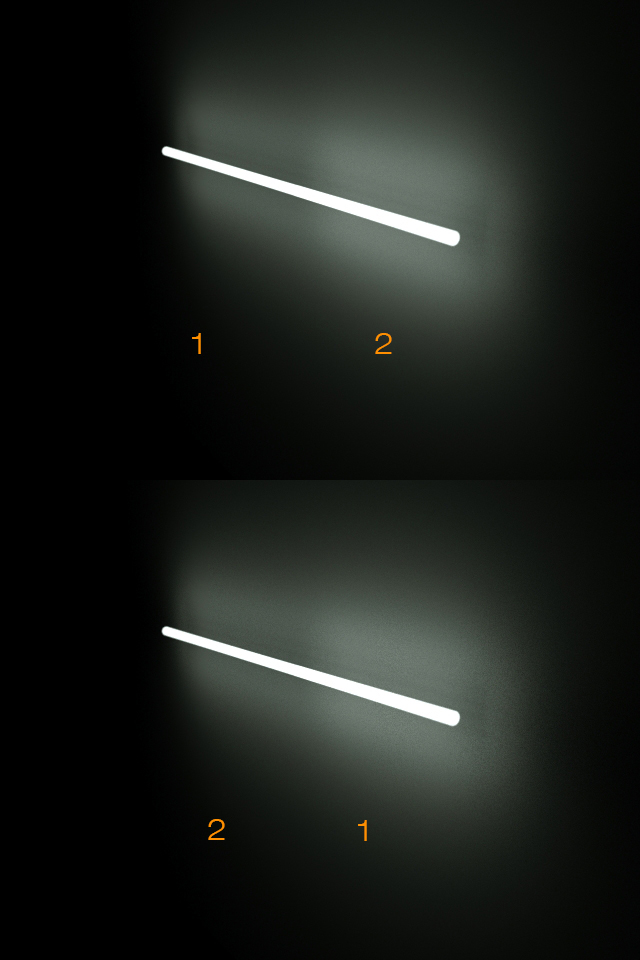

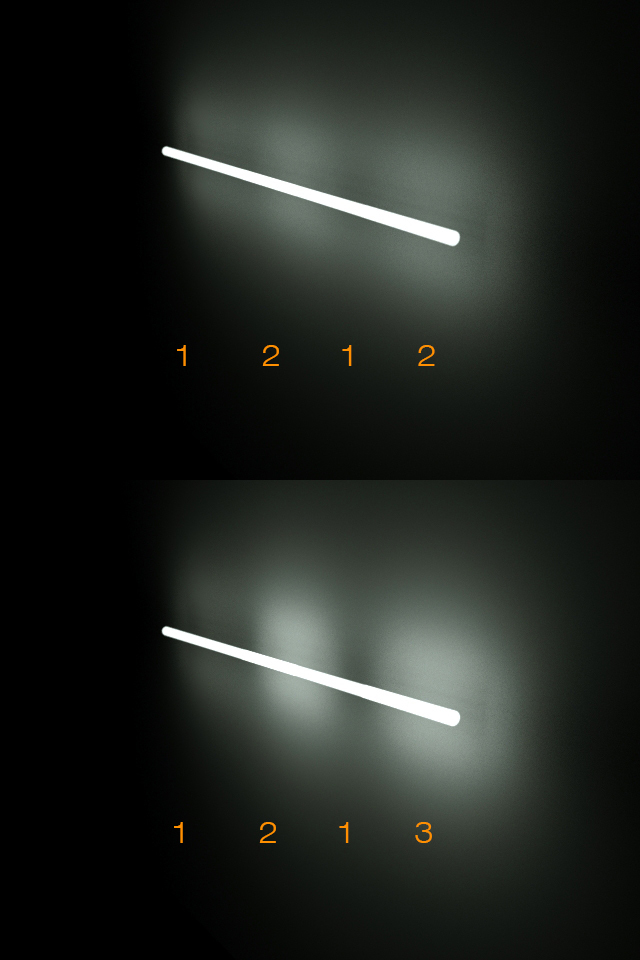

i did a few tests:
?
?
:-/
:-/
??????????????
??????????????
Intel i7-970 @3,20 GHz / 24 GB RAM / 3 x EVGA GTX 580 - 3GB
