Creating tabs in Lua.

[stratified]

Hi All,

From release 1.27, you can have tabs in your lua user interface. Tabs are similar to groups or panel stacks. They take a list of children, one for each tab. The tab component is resized to fit it's largest child component. Here's an example script:

Code: Select all

--
-- Tabbed component creation example
--


local button = octane.gui.create
{
    type   = octane.gui.componentType.BUTTON,
    width  = 100,
    height = 24,
    x      = 20,
    y      = 20,
    text   = "Button",
}

local table = octane.gui.create
{
    type   = octane.gui.componentType.TABLE,
    header = { "animal", "friendly" },
    items  =
    {
        "cat"     , "no" ,
        "dog"     , "yes",
        "dolphin" , "yes",
        "shark"   , "no" ,
        "tiger"   , "no" ,
        "bear"    , "no" ,
        "seal"    , "yes",
        "horse"   , "yes",
        "eagle"   , "no" ,
        "zebra"   , "no" ,
        "elephant", "no" ,
        "hippo"   , "no" ,
    }
    ,
    widths      = { 200, 200},
    height      = 400,
    selectedRow = 2,
}

local tabs = octane.gui.create
{
    type       = octane.gui.componentType.TABS,
    children   = { table, button },         -- components, 1 for each tab
    header     = { "Animals", "Button" },   -- text to appear on each tab
    currentTab = 1,                         -- the initially selected tab
    callback   = function(comp, evt) print("Current tab: ", comp:getProperties().currentTab) end
}


local window = octane.gui.create
{
    type     = octane.gui.componentType.WINDOW,
    width    = tabs:getProperties().width,
    height   = tabs:getProperties().height,
    children = { tabs },
    text     = "Tabs Example",
}

window:showWindow()

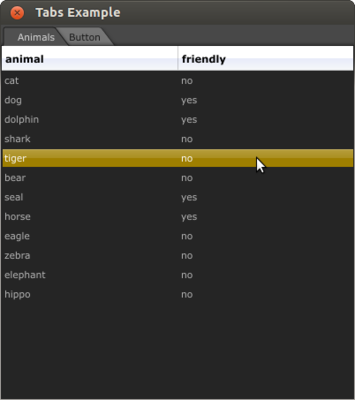

Here's how it looks:

tab component example

cheers,
Thomas

[grimm]

Awesome Thomas! I was going to ask you about these but I didn't want to put too much on you plate, and there you go and beat me to it.

Jason

[stratified]

Awesome Thomas! I was going to ask you about these but I didn't want to put too much on you plate, and there you go and beat me to it.

Jason

They come in very handy when trying to structure more complex UIs. Having a single huge window doesn't scale.

cheers,
Thomas

[Tugpsx]

Sweet, it only gets better.
