Material converter handles opacity maps incorrectly

Postby senorpablo » Tue Sep 25, 2018 1:41 am

senorpablo Tue Sep 25, 2018 1:41 am
If you run the material converter on a standard material with an opacity map, a couple bad choices are made:

1. The gamma is set to 2.2, when it should be 1
2. A tif image which is set to mono channel output=alpha in the standard material is imported as an Octane RGB map, when it should be an Octane alpha map. This should be checked for tga, and png files as well.

The bump maps also get imported with gamma of 2.2, though at least the converter chooses an Octane greyscale image.
senorpablo
Licensed Customer
Licensed Customer

Posts: 157
Joined: Sun Jun 28, 2015 2:52 am

Re: Material converter handles opacity maps incorrectly

Postby paride4331 » Tue Sep 25, 2018 10:47 am

paride4331 Tue Sep 25, 2018 10:47 am
Hi senorpablo,
could you share a standard material before converting to Octane?
Regards
Paride
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
User avatar
paride4331
Octane Guru
Octane Guru

Posts: 2959
Joined: Fri Sep 18, 2015 7:19 am

Re: Material converter handles opacity maps incorrectly

Postby senorpablo » Wed Sep 26, 2018 2:36 am

senorpablo Wed Sep 26, 2018 2:36 am
paride4331 wrote:Hi senorpablo,
could you share a standard material before converting to Octane?
Regards
Paride


See attached.
Attachments
Max Standard Material Sample.rar
(1.88 MiB) Downloaded 28 times
senorpablo
Licensed Customer
Licensed Customer

Posts: 157
Joined: Sun Jun 28, 2015 2:52 am

Re: Material converter handles opacity maps incorrectly

Postby paride4331 » Wed Sep 26, 2018 6:41 am

paride4331 Wed Sep 26, 2018 6:41 am
Hi senorpablo,
a correct conversion replace RGB image node with alpha image node.
Gamma is ok. Developers will fix it in next release.
thanks
Paride
Attachments
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
User avatar
paride4331
Octane Guru
Octane Guru

Posts: 2959
Joined: Fri Sep 18, 2015 7:19 am

Re: Material converter handles opacity maps incorrectly

Postby senorpablo » Wed Sep 26, 2018 6:49 pm

senorpablo Wed Sep 26, 2018 6:49 pm
paride4331 wrote:Hi senorpablo,
a correct conversion replace RGB image node with alpha image node.
Gamma is ok. Developers will fix it in next release.
thanks
Paride


The gamma for any map other than diffuse should not be anything other than 1 by default. This includes: bump, displacement, emission, alpha, etc. If the gamma is 2.2, values which are meant to be half(0.5) get converted to 0.21.

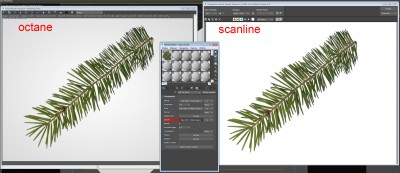

In your comparison, you can see that the alpha map in the Octane version is contracted compared to scanline. The needles are smaller and thinner! This is because the gamma is improperly set to 2.2, rather than 1.0. It's not correct. The material converter should set the gamma to 1.0 for every map except diffuse.

senorpablo
Licensed Customer
Licensed Customer

Posts: 157
Joined: Sun Jun 28, 2015 2:52 am

Re: Material converter handles opacity maps incorrectly

Postby paride4331 » Thu Sep 27, 2018 12:15 pm

paride4331 Thu Sep 27, 2018 12:15 pm
Hi senorpablo,
I do not agree, it makes sense to use gamma 1 with 32bit image, but not using 8bit jpg files.
Regards
Paride
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
User avatar
paride4331
Octane Guru
Octane Guru

Posts: 2959
Joined: Fri Sep 18, 2015 7:19 am

Re: Material converter handles opacity maps incorrectly

Postby paride4331 » Thu Sep 27, 2018 12:16 pm

paride4331 Thu Sep 27, 2018 12:16 pm
Hi senorpablo,
I do not agree, it makes sense to use Gamma 1 with 32bit image, but not using 8bit jpg files.
it could make sense octane automatically sets Gamma 1 by importing 32bit image.
Regards
Paride
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
User avatar
paride4331
Octane Guru
Octane Guru

Posts: 2959
Joined: Fri Sep 18, 2015 7:19 am

Re: Material converter handles opacity maps incorrectly

Postby paride4331 » Thu Sep 27, 2018 12:16 pm

paride4331 Thu Sep 27, 2018 12:16 pm
Hi senorpablo,
I do not agree, it makes sense to use Gamma 1 with 32bit image, but not using 8bit jpg files.
it could make sense Octane automatically sets Gamma 1 by importing 32bit image.
Regards
Paride
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
User avatar
paride4331
Octane Guru
Octane Guru

Posts: 2959
Joined: Fri Sep 18, 2015 7:19 am

Re: Material converter handles opacity maps incorrectly

Postby senorpablo » Thu Sep 27, 2018 9:51 pm

senorpablo Thu Sep 27, 2018 9:51 pm
paride4331 wrote:Hi senorpablo,
I do not agree, it makes sense to use Gamma 1 with 32bit image, but not using 8bit jpg files.
it could make sense Octane automatically sets Gamma 1 by importing 32bit image.
Regards
Paride


I'm not sure what the bit depth of the image has to do with it. While it is generally true that 16 bit and above images are assumed to be in a linear color space, that does not preclude that 8 bit images can also be linear. Think about it: any map other than diffuse, you would generally want to be gamma 1.0 so that .5 = .5, .25 = .25, and so on. Normal maps especially. I can't think of a single case where you would want utility maps to be anything other than 1.0 as a default.

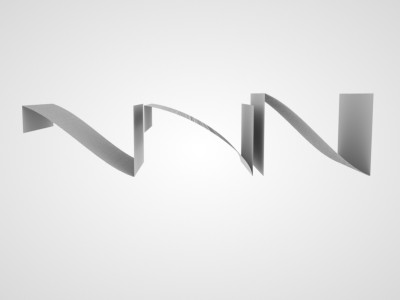

This is another illustration why. A a linear gradient(0..255) as a displacement:
Gamma curves.jpg


On the left is an 8 bit jpg. Middle is a jpg gamma corrected manually to 2.2. On the right is a 32 bit tif.

Gamma is disabled for displacement maps, the parameter has no effect. The middle image is what you get when you set the opacity map to an incorrect gamma of 2.2. It's not a straight line! On the left is gamma 1.0--correct just like the 16 bit image at gamma 1.0 on the right. Bump maps, opacity maps, normal maps and everything else other than diffuse would suffer this same issue.

By the way, you can see here that there is some goofy math going on in Octane with images or displacements as that angled line should be perfectly straight for the two end displacements, but they're not. Instead, there is a slight s-curve.
senorpablo
Licensed Customer
Licensed Customer

Posts: 157
Joined: Sun Jun 28, 2015 2:52 am

Re: Material converter handles opacity maps incorrectly

Postby paride4331 » Fri Sep 28, 2018 11:13 am

paride4331 Fri Sep 28, 2018 11:13 am
Hi senorpablo,
put my two cents in, Octane is spectral not rgb, but unless you only work with 16bit and 32bit files and have HRD monitors, set everything to gamma 1 there's not much sense to.
I personally consider gamma editing in a more creative way, adjusting it in the textures according to the needs; except for hdri files.
normal as displacement works indifferently with gamma 1 or 2.2
Regards
Paride
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
User avatar
paride4331
Octane Guru
Octane Guru

Posts: 2959
Joined: Fri Sep 18, 2015 7:19 am
