Generating a Mandelbrot texture in Lua

Postby stratified » Mon Dec 30, 2013 8:13 am

stratified Mon Dec 30, 2013 8:13 am
Hi everybody,

Here's a example of how to create a procedural texture. It generates the Mandelbrot set in Lua. This script is just me goofing off, the script won't cure cancer or create world peace. For the one interested in Mandelbrot set, you can read all about them here:

http://en.wikipedia.org/wiki/Mandelbrot_set

All it does is colour the pixels that are in the Mandelbrot set orange and the others black:

Code: Select all
--
-- @description Creates a Mandelbrot set texture node.
-- @author      Stratified
-- @version     0.1
--
-- The code to generate the Mandelbrot set is a modified version of this code:
-- http://www.timestretch.com/article/mandelbrot_fractal_benchmark#aba942b3e0f9e50dd67b83d89ec88139
--

local BAILOUT        = 4
local MAX_ITERATIONS = 1000

-- Checks if a pixel in the image plane is in the mandelbrot set.
-- Returns 0 if the pixel is not. The modulus of the last generated
-- complex number is returned when the thing is in the set
--
-- Boring theory:
-- A point c (complex number really) is in the Mandelbrot set if the series
-- generated by z(n+1) = z(n)^2 + c (with z(0) = 0 + j*0) is not going to infinity.
local function inMandelbrotSet(x, y)

   local cr = x
   local ci = y
   local zi = 0.0
   local zr = 0.0
   local k  = 0

   while 1 do
      k = k+1
        -- calculate z(n+1) from z(n)
      local zrzi2 = zr * zi * 2
      local zr2   = zr * zr
      local zi2   = zi * zi
      zr = zr2 - zi2 + cr
      zi = ci + zrzi2
        -- check if we're still bound, bail out if not
      if (zi2 + zr2 > 4) then
         return false
      end

        -- if we reached the maximum number of iterations and the last value
        -- of the generated series is still bounded, we assume the pixel is
        -- in the Mandelbrot set.
      if (k > MAX_ITERATIONS) then
            return true
      end
   end
end

-- Generates a Mandelbrot set centered around the centre of the image.
function genMandelbrotTex(w, h)

    -- create a data structure for the image
    local image  = {}
    image.size   = { w, h }
    image.type   = octane.image.type.LDR_RGBA
    image.buffer = {}

    -- see which pixels are in the Mandelbrot set
   for y = 0, h-1 do
      for x = 0, w-1 do
            -- transform x so it's in the range [-2, 1]
            local sx = 3 * (x / w) - 2
            -- transform y so it's in the range [-1, 1]
            local sy = 2 * (y / h) - 1

            local colour = inMandelbrotSet(sx, sy)
            -- colour pixels in the set
         if colour then
                table.insert(image.buffer, 255)
                table.insert(image.buffer, 127)
                table.insert(image.buffer, 0)
                table.insert(image.buffer, 0)
            -- pixels not in the set are black
         else
                table.insert(image.buffer, 0)
                table.insert(image.buffer, 0)
                table.insert(image.buffer, 0)
                table.insert(image.buffer, 0)
         end
      end
   end

    return image
end

-- dimensions of the generated texture
local WIDTH, HEIGHT = 400, 400

-- actually create the Mandelbrot texture
local tex = genMandelbrotTex(WIDTH, HEIGHT)
assert(#tex.buffer == 4 * WIDTH * HEIGHT, "invalid buffer length")

-- create an image texture node
texNode = octane.node.create{ type=octane.NT_TEX_IMAGE, name="Mandelbrot Texture" }
-- set up the gradient in the attributes
texNode:setAttribute(octane.A_BUFFER , tex.buffer , false)
texNode:setAttribute(octane.A_SIZE   , tex.size   , false)
texNode:setAttribute(octane.A_TYPE   , tex.type   , false)
-- evaluate the texture node
texNode:evaluate()

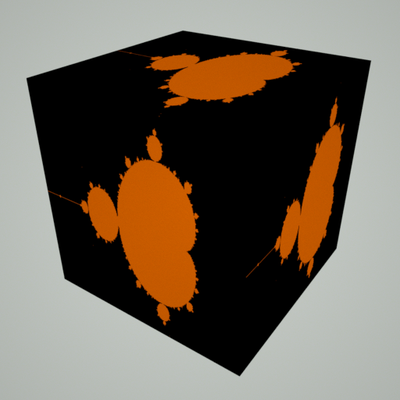

Here's the texture mapped on a cube:

Mandelbrot set mapped on a cube


The colours are still a bit lacking, a gradient would be nicer...

cheers,
Thomas
User avatar
stratified
OctaneRender Team
OctaneRender Team

Posts: 945
Joined: Wed Aug 15, 2012 6:32 am
Location: Auckland, New Zealand

Re: Generating a Mandelbrot texture in Lua

Postby bepeg4d » Sat Jan 04, 2014 5:27 pm

bepeg4d Sat Jan 04, 2014 5:27 pm
thanks thomas, i really don't know how and when it will come in handy... but i'm having a big fun with your lua scripts :D
i have changed the fourth color to 255 for solid alpha and it works great ;)

ciao beppe
User avatar
bepeg4d
Octane Guru
Octane Guru

Posts: 6510
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy

Re: Generating a Mandelbrot texture in Lua

Postby stratified » Sat Jan 04, 2014 8:28 pm

stratified Sat Jan 04, 2014 8:28 pm
Hi Beppe,

Don't think this one is that useful, I just did it for the fun ;)

But fractals can be really beautiful:

http://www.smashingmagazine.com/2008/10/17/50-phenomenal-fractal-art-pictures/

cheers,
Thomas
User avatar
stratified
OctaneRender Team
OctaneRender Team

Posts: 945
Joined: Wed Aug 15, 2012 6:32 am
Location: Auckland, New Zealand

Re: Generating a Mandelbrot texture in Lua

Postby bepeg4d » Sun Jan 05, 2014 2:02 pm

bepeg4d Sun Jan 05, 2014 2:02 pm
thanks for the link, it was a lot of time without seeing some fractal images... cubik olympic is my prefered one ;)
ciao beppe
User avatar
bepeg4d
Octane Guru
Octane Guru

Posts: 6510
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy

Re: Generating a Mandelbrot texture in Lua

Postby Proupin » Sun Jan 05, 2014 6:00 pm

Proupin Sun Jan 05, 2014 6:00 pm
It would be cool if there were some sliders and stuff, and see the changes, but I don't know if that's possible...
Win 7 64bits / Intel i5 750 @ 2.67Ghz / Geforce GTX 470 / 8GB Ram / 3DS Max 2012 64bits
http://proupinworks.blogspot.com/
User avatar
Proupin
Licensed Customer
Licensed Customer

Posts: 735
Joined: Wed Mar 03, 2010 12:01 am
Location: Barcelona

Re: Generating a Mandelbrot texture in Lua

Postby stratified » Sun Jan 05, 2014 7:12 pm

stratified Sun Jan 05, 2014 7:12 pm
sure, that's possible. You could do real time zooming in on the set. But I don't have the time to do that so if you're keen...

cheers,
Thomas
User avatar
stratified
OctaneRender Team
OctaneRender Team

Posts: 945
Joined: Wed Aug 15, 2012 6:32 am
Location: Auckland, New Zealand

Return to Lua Scripting
