Shrink label material development HELP

Post, discuss and share handy resources like textures, models and HDRI maps in this forum.
Forum rules
Please do not post any material that is copyrighted or restricted from public use in any way. OTOY NZ LTD and it's forum members are not liable for any copyright infringements on material in this forum. Please contact us if this is the case and we will remove the material in question.
Post Reply
reberts2
Licensed Customer
Posts: 105
Joined: Tue Feb 23, 2010 2:48 pm

I am struggling to use mix materials (in Rhino Plugin) to develop a clear, colored shrink wrap label for a bottle.
This would be the atypical glossy PVC/PLA sleeve material, with color graphics printed on it.
Clear in most areas, but with packaging graphics in others, glossy all over.

Any assistance would be greatly appreciated.
Sincerely,
Rick
Win 7 64 | GTX260 x 2 | Core i7 860 | 4GB & OSX 10.6 | 8600M GT | Core 2 Duo | 4GB
User avatar
paride4331
Octane Guru
Posts: 3809
Joined: Fri Sep 18, 2015 7:19 am

Hi reberts2,

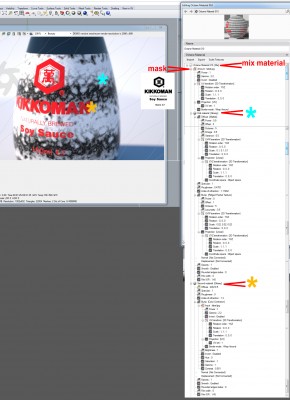

a little sample in screenshot
Regards
Paride
Attachments
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
reberts2
Licensed Customer
Posts: 105
Joined: Tue Feb 23, 2010 2:48 pm

Thanks so much!
I am still struggling with this in respect to the 'clear film' channel, which has a marble texture in the example above.
Whenever I used a combination of glossy and glossy or specular and glossy, I cannot get the clear area of the label to have reflection, or in the case of specular, to not distort the contents behind due to IOR influence. So the container has opaque fluid contents and the label is clear and glossy, except where color is applied, where the ink is glossy.
-Rick
Attachments

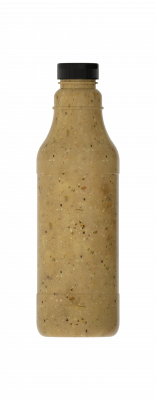

container with contents.png
Win 7 64 | GTX260 x 2 | Core i7 860 | 4GB & OSX 10.6 | 8600M GT | Core 2 Duo | 4GB
User avatar
paride4331
Octane Guru
Posts: 3809
Joined: Fri Sep 18, 2015 7:19 am

Hi reberts2,

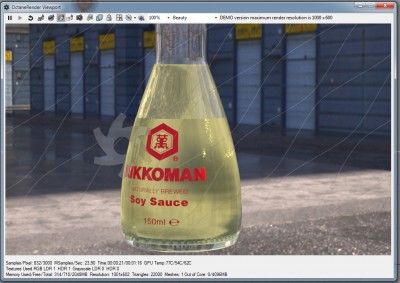

.3dm file for you.
Regards
Paride
Attachments
bottle.rar
(522.98 KiB) Downloaded 236 times
2 x Evga Titan X Hybrid / 3 x Evga RTX 2070 super Hybrid
reberts2
Licensed Customer
Posts: 105
Joined: Tue Feb 23, 2010 2:48 pm

Ahh, I see now.
Thanks so much for your assistance!
Sincerely,
Rick
Win 7 64 | GTX260 x 2 | Core i7 860 | 4GB & OSX 10.6 | 8600M GT | Core 2 Duo | 4GB
