Guide: Hide Shadows - Matte Materials - Camera visibility

Postby linvanchene » Sat Nov 28, 2015 4:39 am

linvanchene Sat Nov 28, 2015 4:39 am
Those features are not mentioned much on the forum.
I also had to try around to remember how this works so maybe a refreshment helps others as well...


Hiding the shadows of an object

There is a Shadow Visibilty option in the parameters tab.

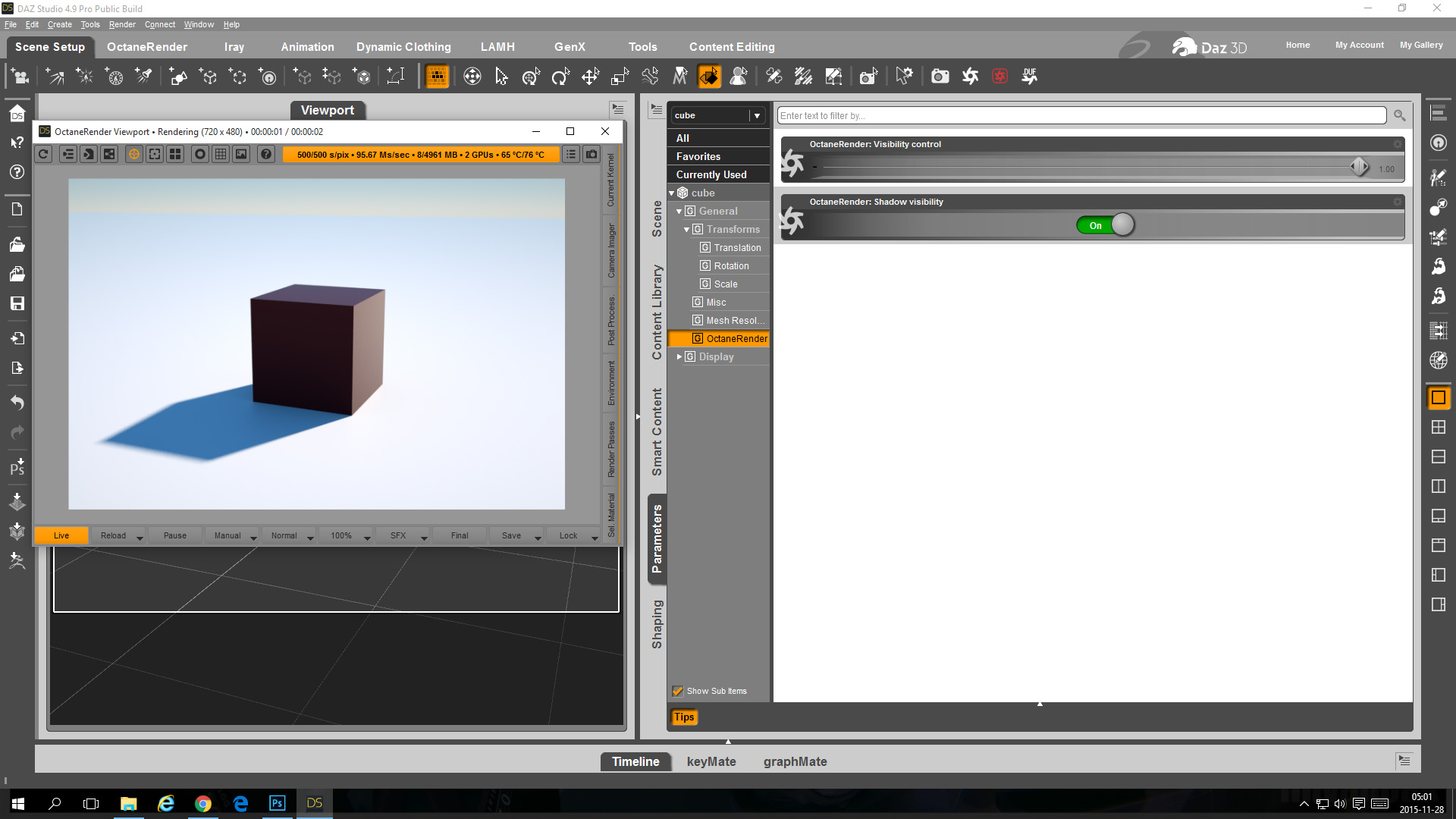

Shadow Visibility in the parameters tab.jpg


With that option you can select if the selected object is casting shadows or not.

In this example the Shadow Visibility on the cube is switched off.

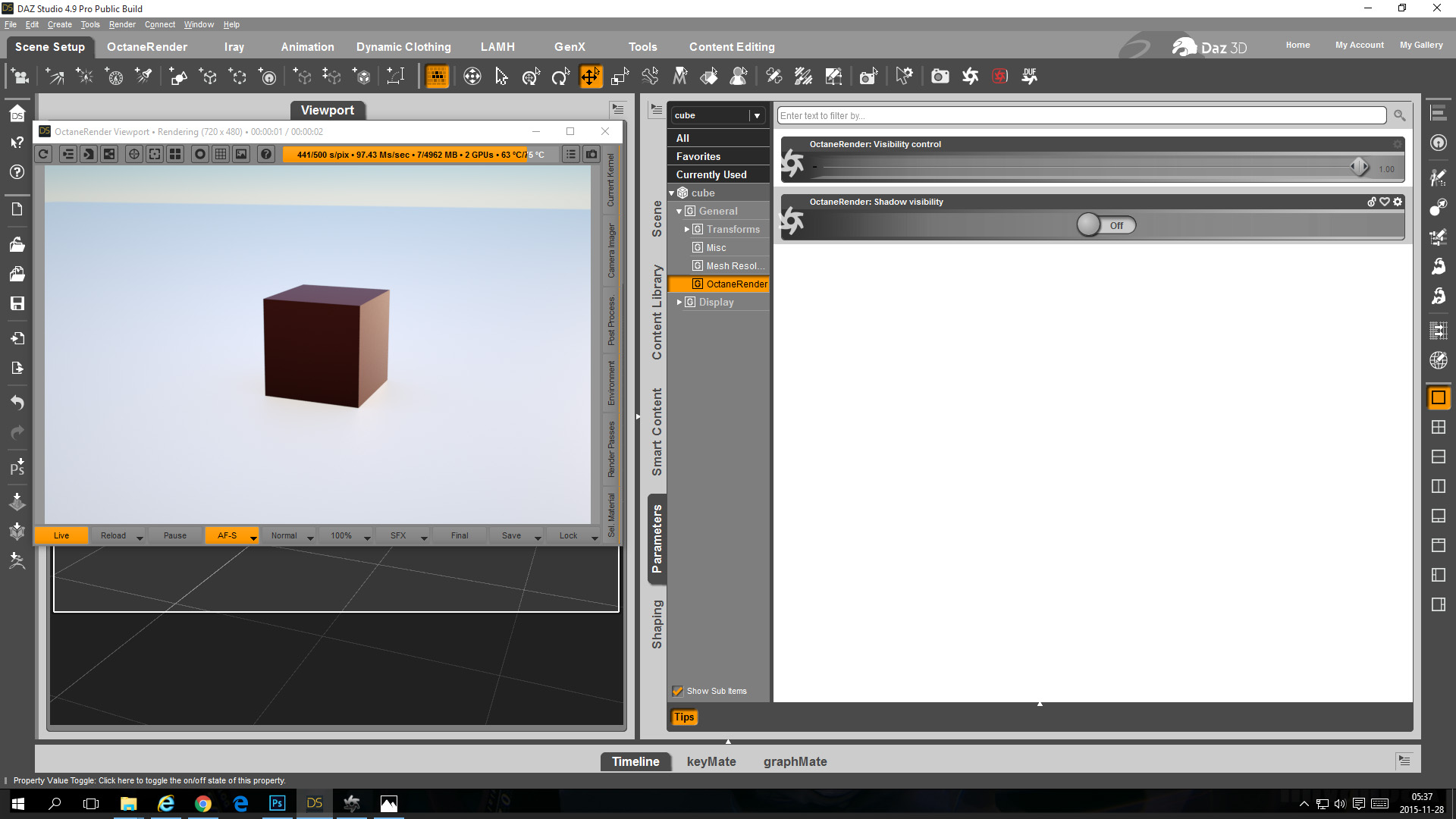

Shadow Visibilty OFF on cube - this time it is working.jpg


- - -

Matte Materials

If you just want to view the shadow of an object but not the rest of the object that receives the shadow you have to use the "Diffuse" material option and select "Matte - On"

In this example a cube is casting a shadow on a plane in the daylight environment.
Because on the plane diffuse material Matte is ON the rest of the plane is actually hidden.
What you can still see in the scene is the cube and its shadow with the daylight environment background.

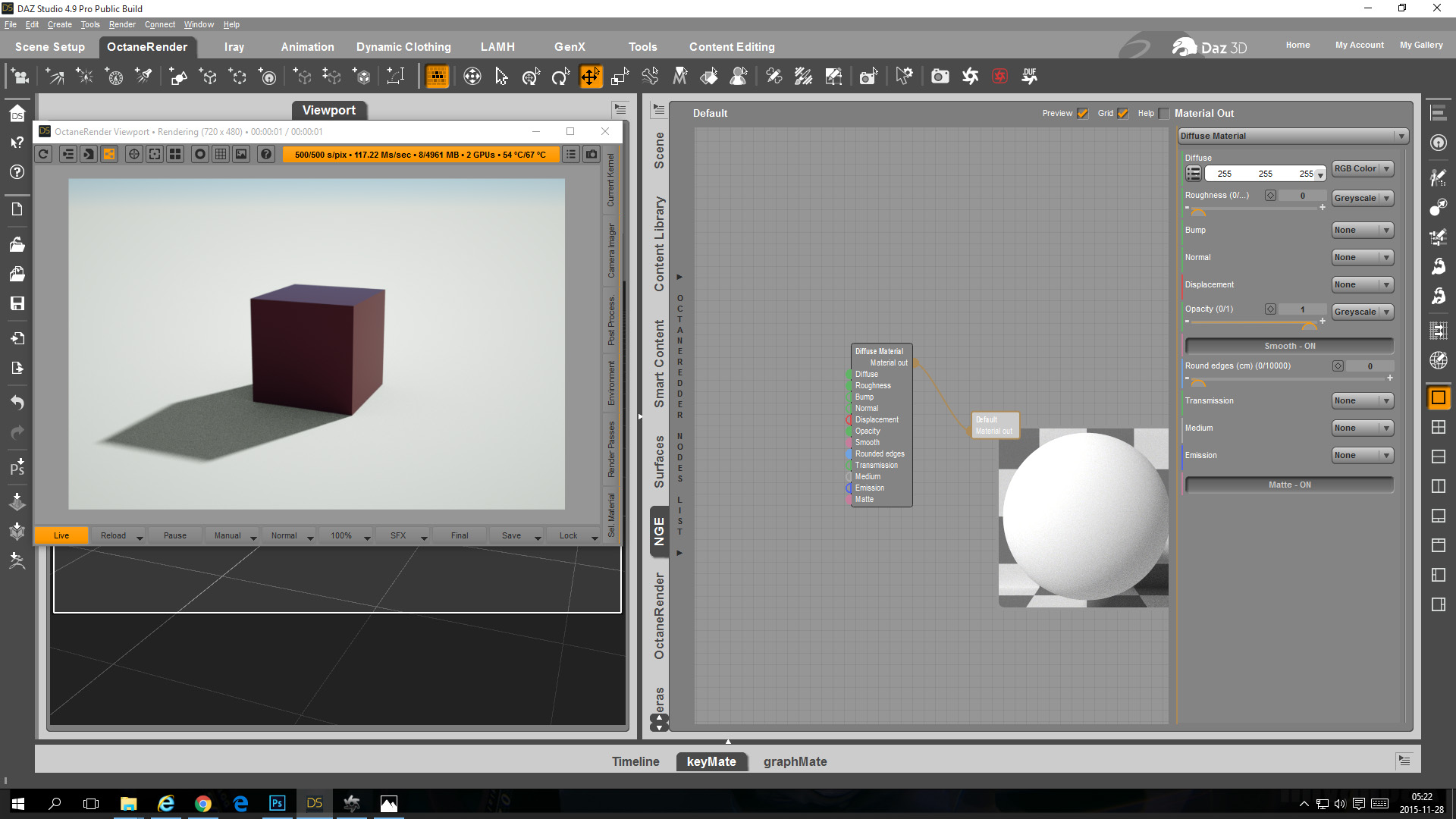

Matte On - selected on plane makes the plane hidden and the shadow visible.jpg


In the Environment tab switch Alpha Channel ON to hide the environment.

In this example the daylight environment background is now also hidden.

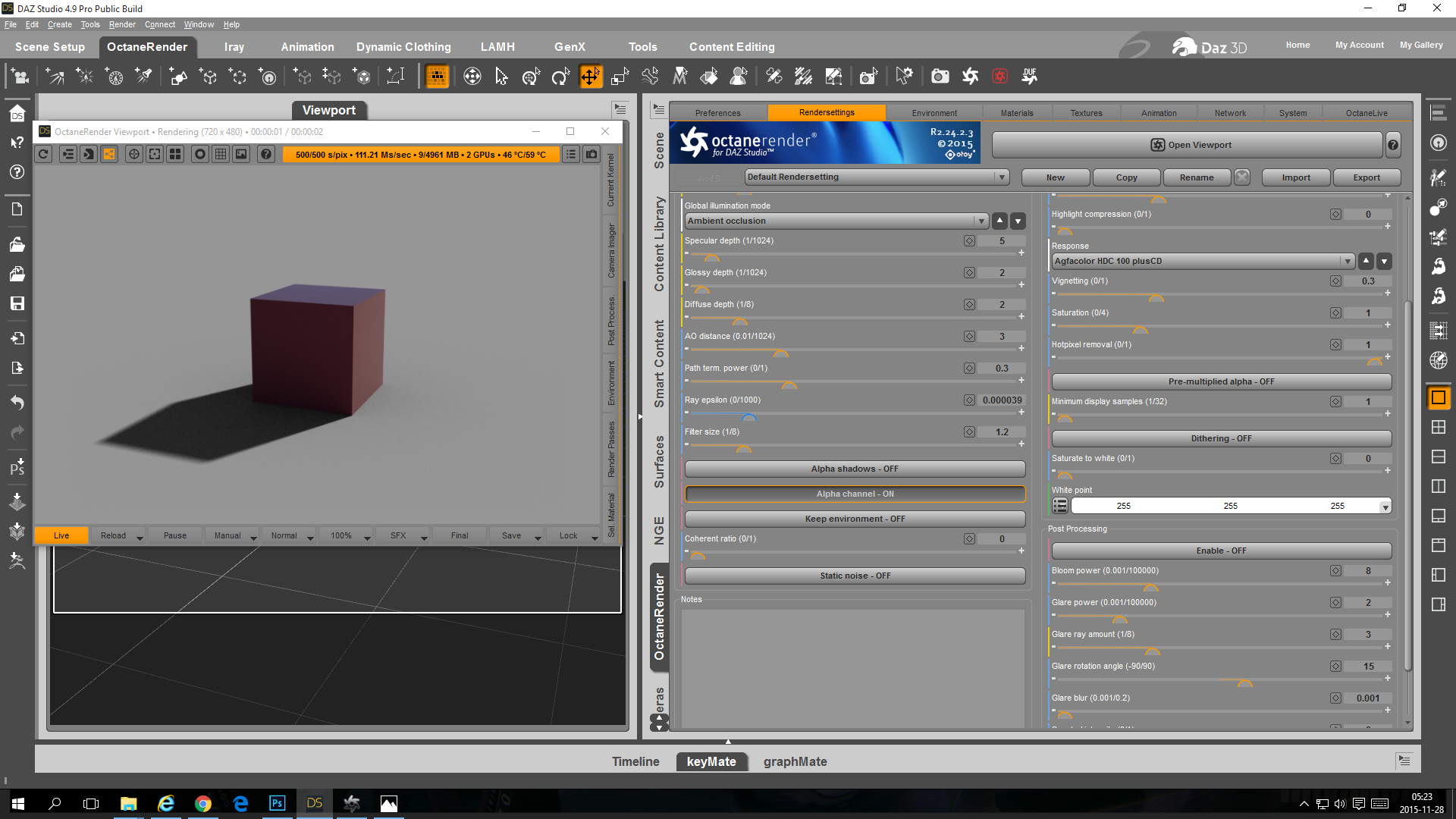

Switch Alpha Channel ON to hide the environment.jpg


This way you can have an object cast a shadow and have the rest of the scene hidden.
Last edited by linvanchene on Mon Jun 12, 2017 11:59 am, edited 2 times in total.
Win 10 Pro 64bit | Rendering: 2 x Asus GTX 1080 Ti FE | Display: Asus GTX 1080 STRIX A8G | Intel Core i7 5820K | ASUS X99-E WS| 64 GB RAM
FAQ: OctaneRender for DAZ Studio - FAQ link collection
User avatar
linvanchene
Licensed Customer
Licensed Customer

Posts: 759
Joined: Mon Mar 25, 2013 10:58 pm
Location: Switzerland

Re: Tutorial: Hide Shadows & Matte Materials

Postby sixb0nes » Tue Dec 01, 2015 3:25 pm

sixb0nes Tue Dec 01, 2015 3:25 pm
Good summary. I'm going to mention "shadow catcher" so it will show up for the next person who searches for it :D
sixb0nes
Licensed Customer
Licensed Customer

Posts: 42
Joined: Sun Nov 17, 2013 8:19 pm
Location: Canada

Re: Tutorial: Hide Shadows & Matte Materials

Postby DrHemulen » Tue Dec 15, 2015 8:33 pm

DrHemulen Tue Dec 15, 2015 8:33 pm
Thanks, I never realized how nice the shadow thing is for lighting interiors. Now you can just put all of your meshlights outside the room :D
GTX 780, 6 gigs of VRAM - Win 7 Home Premium 64 bits
User avatar
DrHemulen
Licensed Customer
Licensed Customer

Posts: 317
Joined: Thu Dec 26, 2013 7:09 pm

Camera visibility & Visibility Control

Postby linvanchene » Mon Jun 12, 2017 11:58 am

linvanchene Mon Jun 12, 2017 11:58 am
Camera visibility

You want to see the shadow of an object cast in the scene but not see the object itself?

-> The Camera visibility will do just that.

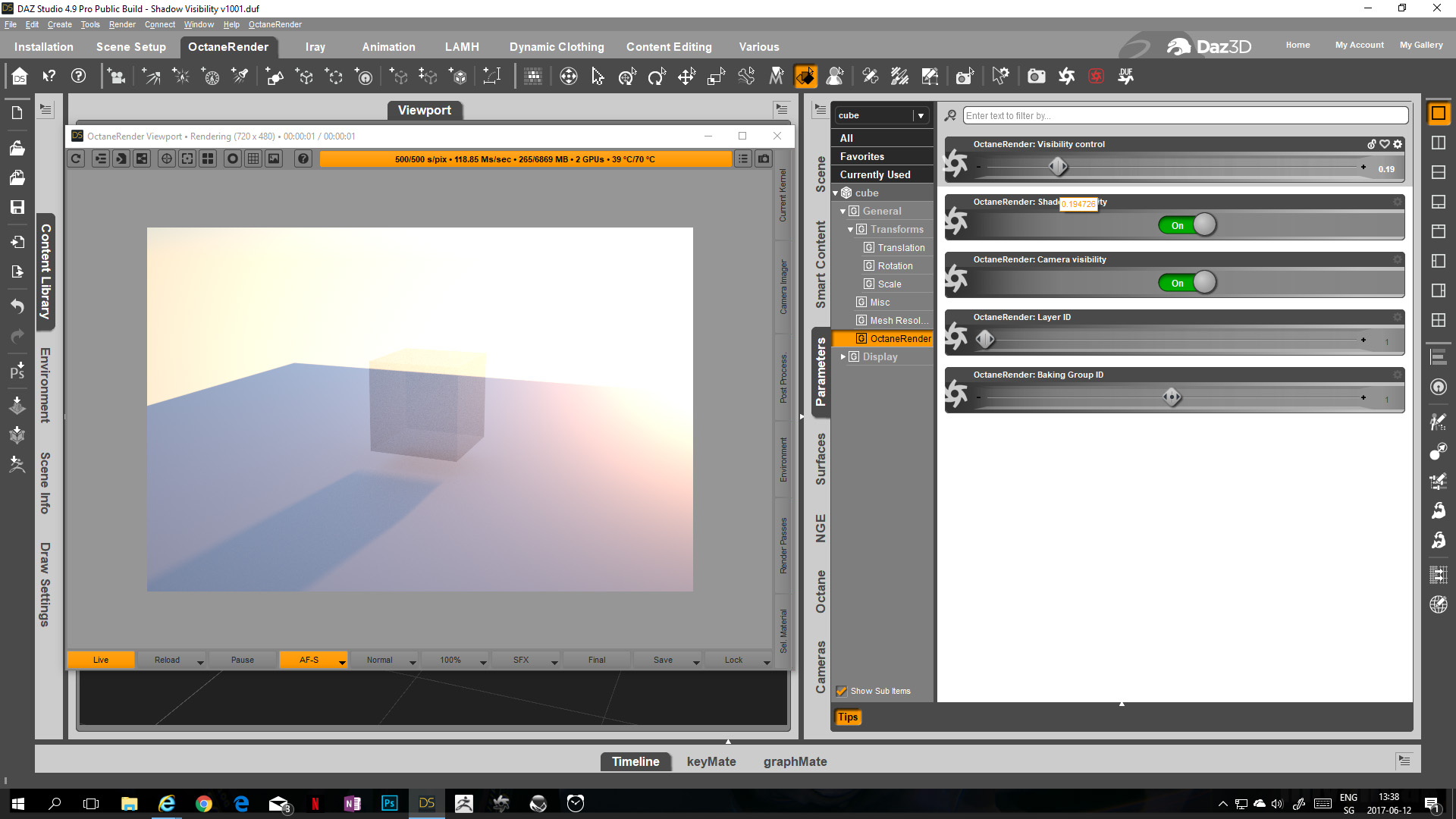

Cube - Camera visibility On.jpg
