Dear all,

We are excited to bring you a new release of Sculptron!

As with all experimental builds, please do not use this for production purposes. We can't guarantee that scenes saved with this version will be compatible in future releases, and we anticipate there being several maintenance releases. Workflow and available tools will be improved, so expect small and big changes in future releases.


What is Sculptron?

Sculptron is a GPU based sculpt-animate application.
Sculptron primary target is to provide artists with a powerful sculpting tool conceived to work with 3D animation. It's not a replacement for ZBrush or any similar specialized sculpting applications you can use to edit static models. Sculptron Alpha 3 introduces sculpting into your animation workflow, along with a set of new deformers and animation capabilities.

Sculptron Alpha 3

Sculptron has been deeply re-engineered to enhance the possibility of implementing a wide range of important features, with the scope of making it a powerful and very specialized cache editing and 3D animation system.

Performances.
When we come to animated deformations, Sculptron shows some incredible performances hardly matched by any other currently available 3D animation software.
By the way, despite its name, Sculptron is not just a sculpting software and should not be compared to specialized Sculpting applications like ZBrush or Mudbox: it’s definitely focused on Animated Sculpting and deformation. Being able to animate a huge amount of polygons (like a character composed by 500k pure - not subpatched - polygons can be) has been our target since the start. We’re always looking for new ways to optimize performances and we’ll never stop doing it, but I’m sure any 3D artist will find in this version some unprecedented deformation speed, especially when combining animated Sculpt Layers and Effects.

New Outliner and New Scene Graph.
A new Outliner (in Alpha 2 we only had a very simple Item List) has been introduced and it’s the core of scene management in Sculptron.
It’s now possible to select (and multi-select) item(s), parent them and change their order in the list.
Clicking with the Right mouse button on any item will bring up additional options (Delete, Hierarchy selection, Collapse/Expand Hierarchy).

The Outliner is also the place where the Modifier Stack lives and can be managed.
You can “parent” effects and Sculpt Layers to it, change order and see the resulting mesh deformation in real time.

Object Transforms and Attributes (animable).
It’s now possible to animate Item Transformations and any Attribute in the scene (Alpha 2 only allowed for animated sculpting).
It is possible to animate any properties showing the curve icon. Activating it will create an editable animation track.

In this case clicking on the curve icon relative to the Morph attribute enables animation for the Sculpt Layer:

The relative animation track becomes available in the Animation Editor:

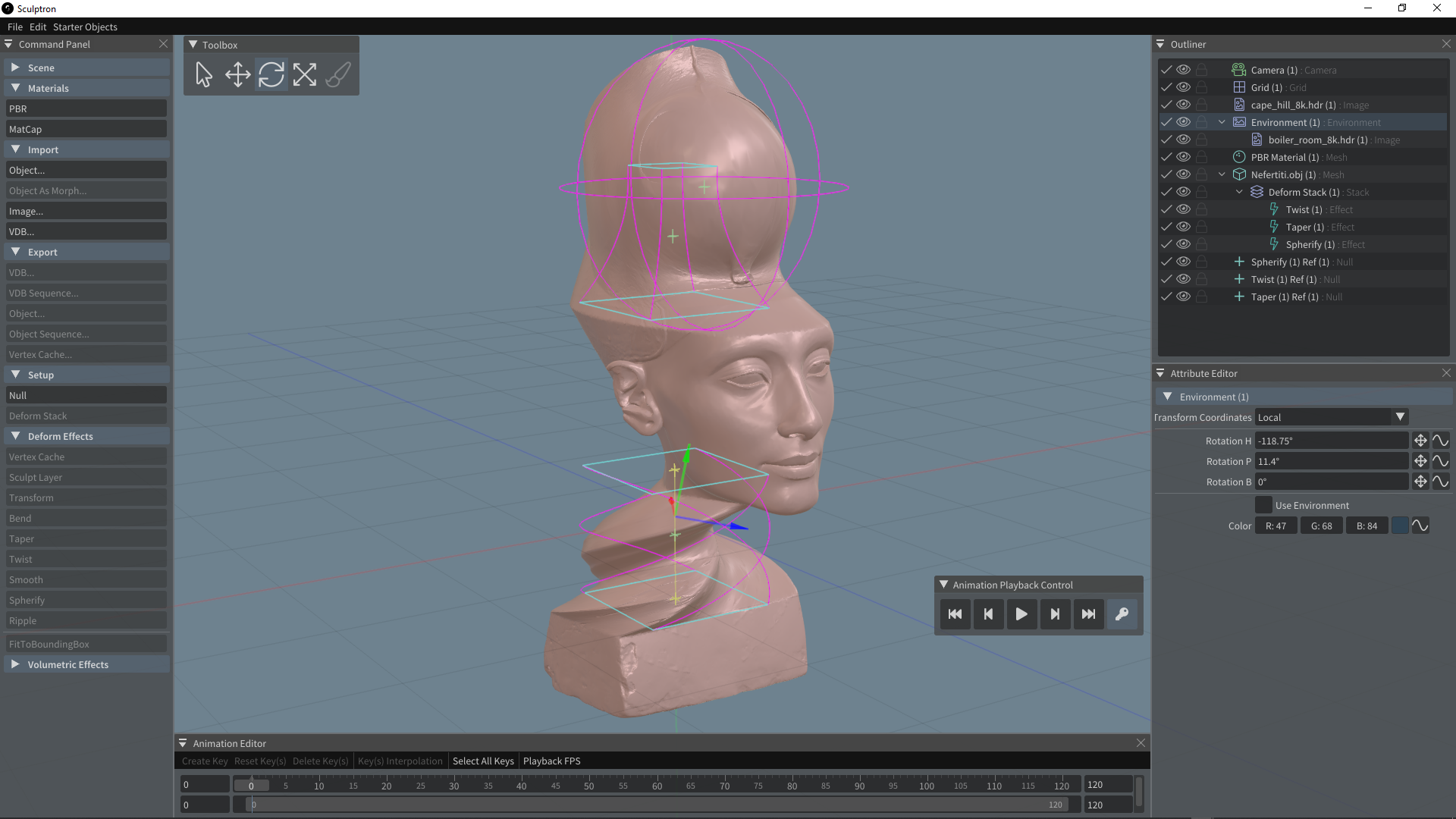

Fully functional Modifier Stack and Deformers.
In this new version we introduced a very powerful Modifier Stack with full Order of Operation support.
The new modifier stack allows artists to combine multiple deformers in sequence and see the final result in real time on the deformed mesh. It’s now possible to combine MDD caches (even multiple ones), Sculpt Layers and Linear Deformers, plus a number of very powerful modifiers like the Transform Effect. The number of available deformers is going to get bigger and bigger moving forward.

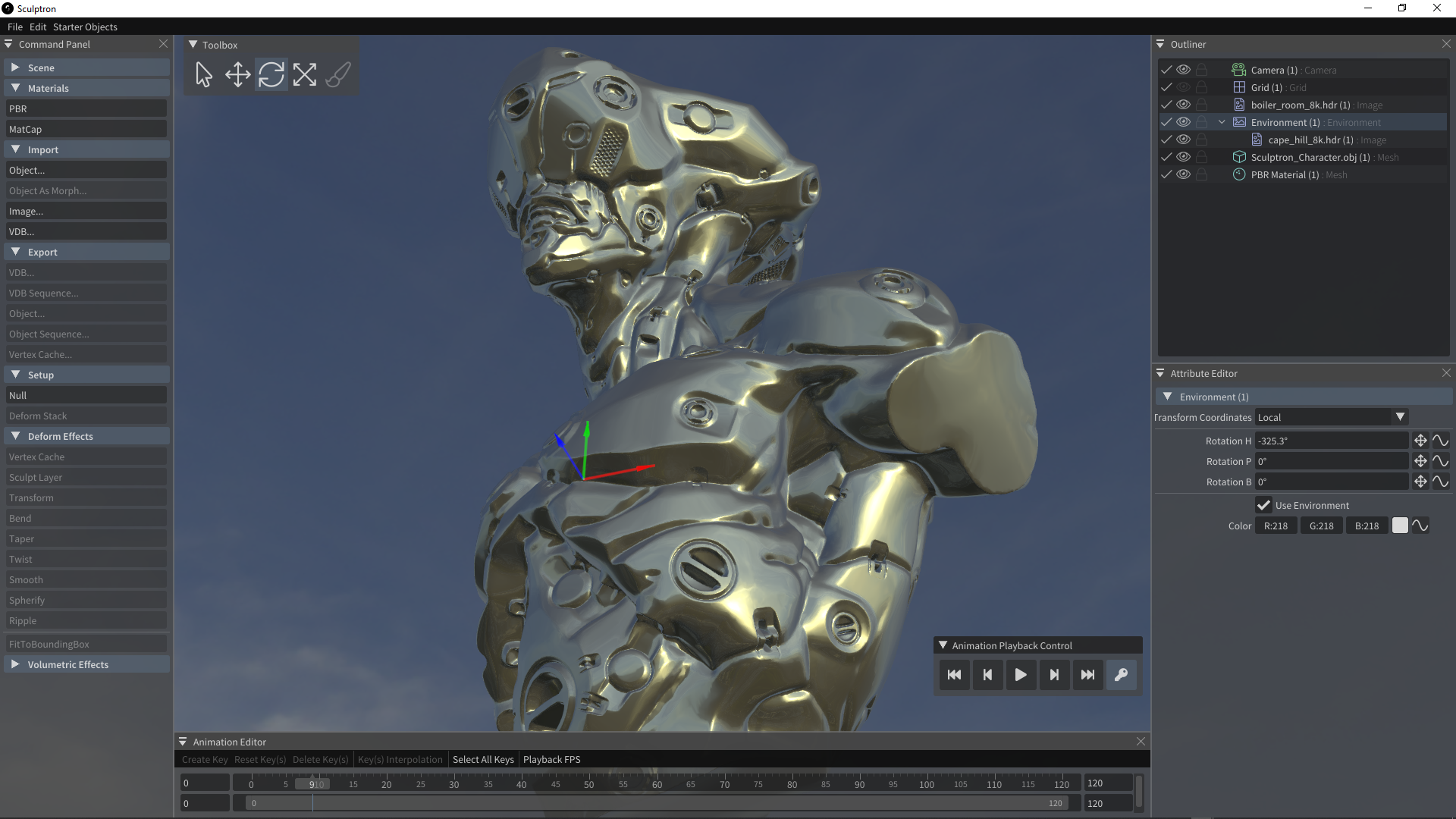

New Environment Item and PBR Environment Shading.
The new Environment Item allows an HDRI image to be used for OpenGL PBR lighting and reflections.
The Environment Item also offers several options to customize the background image.

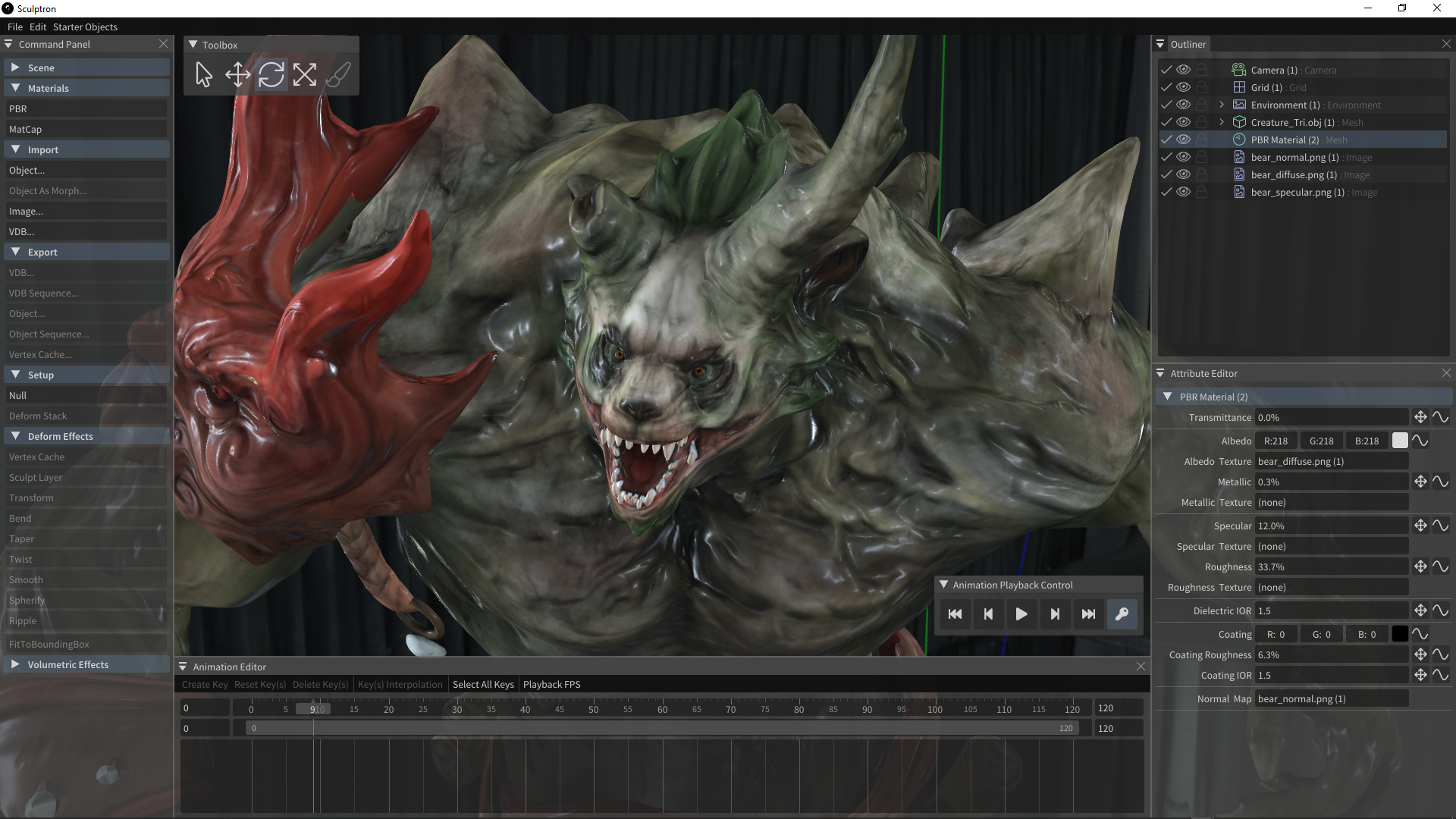

New PBR Material
In addition to the already available Matcaps, we introduced a new PBR Material with UV texturing support, supporting PBR environment lighting and reflections

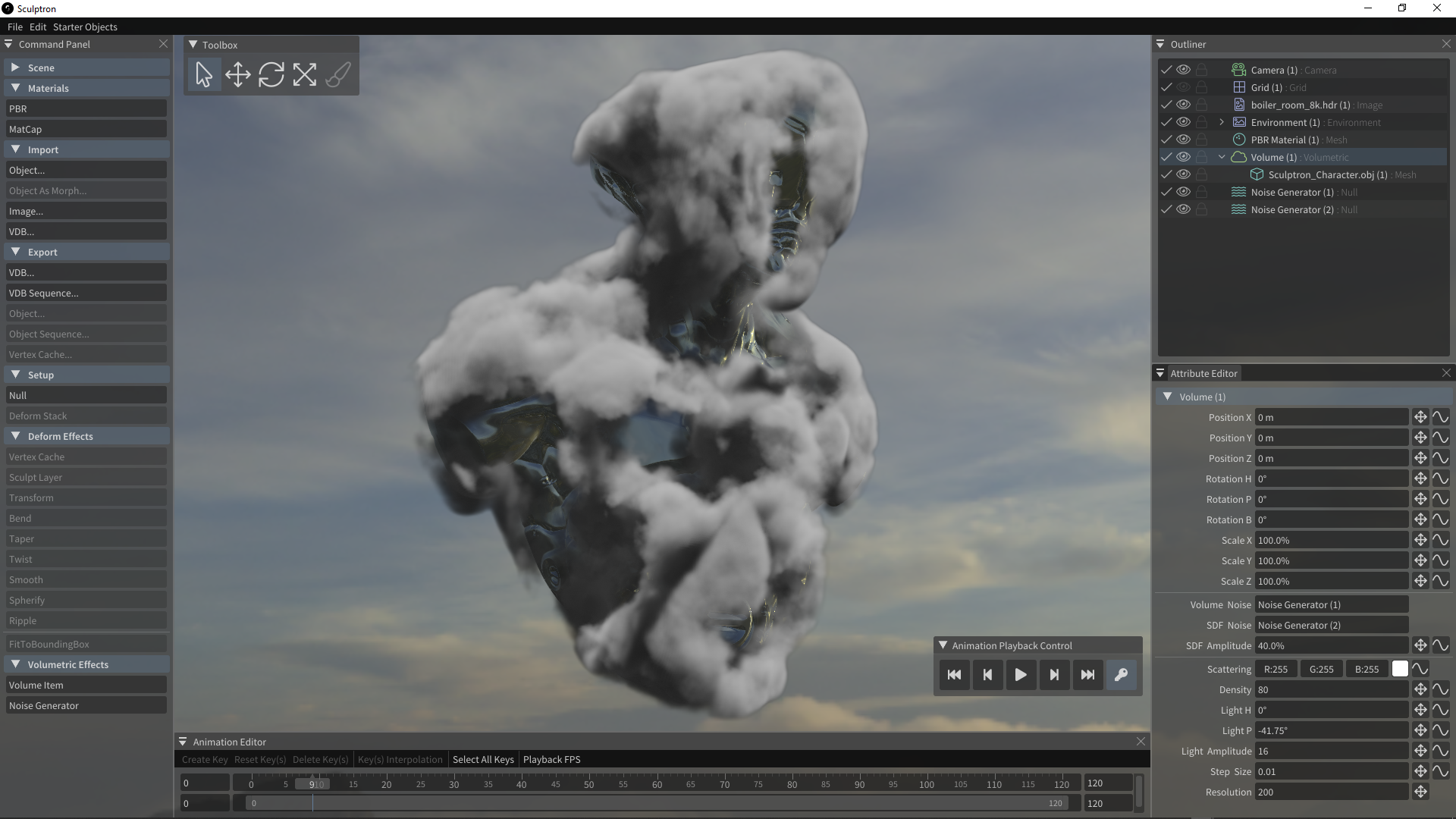

New Volume Item and Improved Volume visualization/workflow.
The new Volume Item can convert any static or animated mesh into a VDB volume, which can then be exported as a frame or a sequence.

A Noise Generator can be used to apply SDF Noise and Volumetric Noise to the volume.
Volumetric Noise:

Volumetric Noise+SDF Noise:

The result can be exported in VDB format and used in Octane:

Camera.
We’ve introduced the concept of Camera. As everything in this new version of Sculptron, it can be animated.

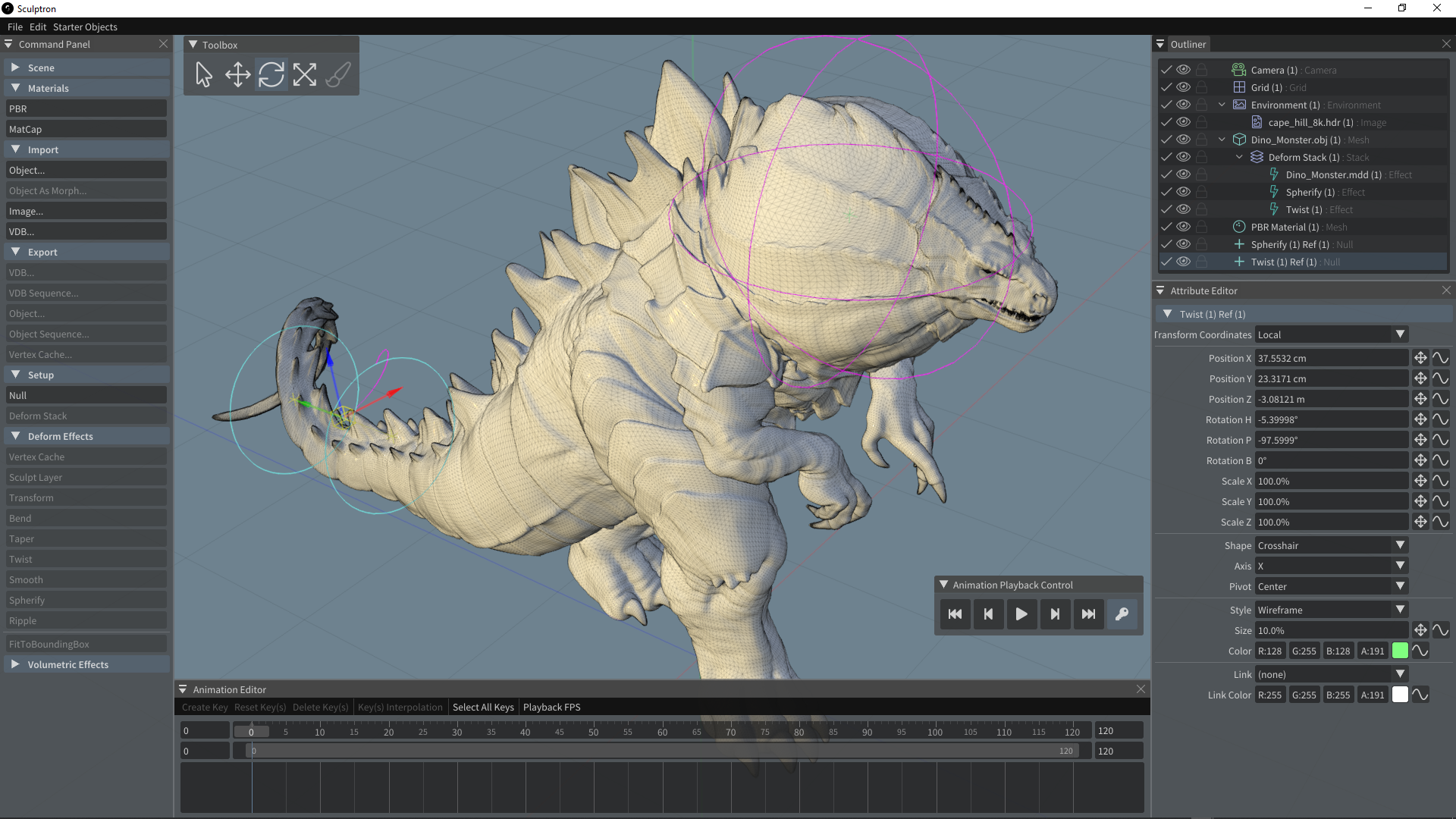

Customizable Null Objects
We added Null Objects that can be used for the Scene setup (grouping items, as reference for deformers and so on). We added several shapes and options for full customization.


High Density Primitives
We added some high poly primitives that can be added to the scene from the Starter Objects menu.


Shortcuts list:

Navigation

    Alt+ Left Mouse button drag = Rotate View
    ALT + Middle Mouse button drag = Pan View
    ALT + Right Mouse button drag = Zoom View
    CTRL = invert brush function when available
    SHIFT = Smooth Brush
    CTRL when using Grab = Constraint along normal
    f = Fit World
    SHIFT+f = Fit Selected

It's also possible to navigate using the mouse only (or the pen) without using any keyboard key:

    Left Mouse/Pen button drag in an empty area = Rotate View
    Middle Mouse/Pen button drag in an empty area = Pan View
    Right Mouse/Pen button drag in an empty area = Zoom View

Item Selection/Editing:

    q = Selection Mode
    w = Translate
    e = Rotate
    r = Scale
    s = Sculpt
    CTRL+z = Undo
    CTRL+y = Redo

WIP:

Known Issues

    - Please be sure to have a material assigned to the object or it will not be visible in the viewport
    - Undo is performed on a per attribute basis right now, which means that moving/rotating/resizing the object in the viewport will require 3 undo actions, one per Transform channel
    - Textured Sculpting has not been implemented yet in this new build
    - Create Frame option on the Right Mouse button doesn't work when used in the timeline
    - The Transform Gizmo is only available for translation right now, but it's still possible to rotate and scale items in the viewport
    - Deformers are not yet "unified"; some offers better visualization and mode options than others
    - After getting back to Sculptron from another app, it may happen to be stuck in navigation mode; pressing Alt solves the issue

    It's alpha software, expect some crashes and please report any bug you may find!


Watch the Sculptron Alpha 3 Presentation Video:

Sculptron Alpha 3 Presentation Video

Watch the Sculptron Alpha 3 Intro Video:

Sculptron Alpha 3 Intro Video

Download Sculptron Alpha 3:

Sculptron Alpha 3
linograndiotoy
OctaneRender Team
OctaneRender Team

Posts: 726
Joined: Thu Feb 01, 2018 7:10 pm

Re: Sculptron 1.0 - Alpha 3 is out!

Postby MyRho » Sun Jan 31, 2021 8:31 am

MyRho Sun Jan 31, 2021 8:31 am
It just won't start on my computer, crashes immediately. :(
Intel Core i7 3960X, X79A-GD65 (8D) (MS-7760), 32 GB DDR3-SDRAM G.Skill,
Gainward GeForce GTX 1080 Phoenix GLH 8GB, Windows 10 Pro 64-Bit.

Nihil sum sine sole.
User avatar
MyRho
Licensed Customer
Licensed Customer

Posts: 62
Joined: Tue Jul 23, 2013 6:49 am
Location: Hamburg

Re: Sculptron 1.0 - Alpha 3 is out!

Postby promity » Mon Feb 01, 2021 8:52 am

promity Mon Feb 01, 2021 8:52 am
MyRho wrote:It just won't start on my computer, crashes immediately. :(

I fully confirm.
Asus z9ped8ws/2x Intel Xeon E5-2692 v2/64gb ram/GTX1080+GTX 1070+GTX 980Ti/Samsung SSD 850 EVO 250 gb/
Octaneplugin+Lightwave 3d)
User avatar
promity
Licensed Customer
Licensed Customer

Posts: 255
Joined: Sun Dec 19, 2010 7:59 am
Location: Russia

Re: Sculptron 1.0 - Alpha 3 is out!

Postby ramone163 » Tue Feb 02, 2021 11:42 pm

ramone163 Tue Feb 02, 2021 11:42 pm
Same for me
GPU: 980+1080+1080Ti; 3ds max;
Behance portfolio; Handmadefont.com;
ramone163
Licensed Customer
Licensed Customer

Posts: 209
Joined: Tue Aug 28, 2012 5:12 pm

Re: Sculptron 1.0 - Alpha 3 is out!

Postby linograndiotoy » Wed Feb 03, 2021 12:43 pm

linograndiotoy Wed Feb 03, 2021 12:43 pm
A very first question to try to understand what the issue may be.
Are you drivers updated?
linograndiotoy
OctaneRender Team
OctaneRender Team

Posts: 726
Joined: Thu Feb 01, 2018 7:10 pm

Re: Sculptron 1.0 - Alpha 3 is out!

Postby promity » Wed Feb 03, 2021 1:05 pm

promity Wed Feb 03, 2021 1:05 pm
Yes, latest drivers but not Studio drivers - win7 here.
Asus z9ped8ws/2x Intel Xeon E5-2692 v2/64gb ram/GTX1080+GTX 1070+GTX 980Ti/Samsung SSD 850 EVO 250 gb/
Octaneplugin+Lightwave 3d)
User avatar
promity
Licensed Customer
Licensed Customer

Posts: 255
Joined: Sun Dec 19, 2010 7:59 am
Location: Russia

Re: Sculptron 1.0 - Alpha 3 is out!

Postby linograndiotoy » Wed Feb 03, 2021 1:47 pm

linograndiotoy Wed Feb 03, 2021 1:47 pm
promity wrote:Yes, latest drivers but not Studio drivers - win7 here.


Sculptron requires Win10 to work properly.
linograndiotoy
OctaneRender Team
OctaneRender Team

Posts: 726
Joined: Thu Feb 01, 2018 7:10 pm

Re: Sculptron 1.0 - Alpha 3 is out!

Postby promity » Wed Feb 03, 2021 2:05 pm

promity Wed Feb 03, 2021 2:05 pm
But Octane works on both Windows 7 and 10. Why not make a version of Sculptron for Windows 7?
Asus z9ped8ws/2x Intel Xeon E5-2692 v2/64gb ram/GTX1080+GTX 1070+GTX 980Ti/Samsung SSD 850 EVO 250 gb/
Octaneplugin+Lightwave 3d)
User avatar
promity
Licensed Customer
Licensed Customer

Posts: 255
Joined: Sun Dec 19, 2010 7:59 am
Location: Russia

Re: Sculptron 1.0 - Alpha 3 is out!

Postby linograndiotoy » Wed Feb 03, 2021 2:34 pm

linograndiotoy Wed Feb 03, 2021 2:34 pm
promity wrote:But Octane works on both Windows 7 and 10. Why not make a version of Sculptron for Windows 7?

We're talking about 2 very different kind of software. Win 7 is not supported anymore by Microsoft, and it's too old for the API used in Sculptron.
linograndiotoy
OctaneRender Team
OctaneRender Team

Posts: 726
Joined: Thu Feb 01, 2018 7:10 pm

Re: Sculptron 1.0 - Alpha 3 is out!

Postby promity » Wed Feb 03, 2021 3:05 pm

promity Wed Feb 03, 2021 3:05 pm
You missed the main point - Octane still supports win7.
OK. then your super-duper program is not for all Octane users.
Asus z9ped8ws/2x Intel Xeon E5-2692 v2/64gb ram/GTX1080+GTX 1070+GTX 980Ti/Samsung SSD 850 EVO 250 gb/
Octaneplugin+Lightwave 3d)
User avatar
promity
Licensed Customer
Licensed Customer

Posts: 255
Joined: Sun Dec 19, 2010 7:59 am
Location: Russia
