Google Cardboard VR and OctaneRender™ 2.0

Postby bepeg4d » Sat Sep 13, 2014 3:54 pm

bepeg4d Sat Sep 13, 2014 3:54 pm

A few days ago, waiting for the Oculus Rift finally arrive at the office, I came across this video on Macity (an italian mac news site) that explains how the VR viewer Google Cardboard can be safely used with smartphones from Apple , as well as with any Android smartphone. Of course I immediately thought of doing some testing with OctaneRender ™ 2.0 to see if this brilliant, simple and disarming cardboard box could really provide the magic of stereoscopic vision that promises. You can find online a tutorial for self-realize it, but out of laziness, I thought it best to order the kit directly from Amazon for just a few euros.
With great surprise, the VR viewer cardboard works fine, as well as to use the proper apps, as well as an excellent display of stereoscopic images and animations made ​​with new options offered by OctaneRender ™ v2 which is no longer limited to anaglyph mode, but provides full support for 3D stereoscopic vision.

Unpacking and Assembly
You can order the Google Cardboard in two different sizes depending on the size of the screen of your smartphone you own, in 4/4.7 inch or 5/5.7 inch version. The viewer comes in a plastic bag and looks like a folded cardboard box packaging. Unlocked the packaging following the tear, the box is explained in all its parts, revealing the lenses and the various sectors that comprise it. On one side of the case, the instructions are printed with the assembly sequence and must be separated from the rest of the board that will make the viewer. Following the instructions and numbering printed directly on the cardboard, the VR viewer Cardbord takes shape in seconds.

Rendering a stereoscopic image or animation with OctaneRender ™ 2.0
From the earliest versions, OctaneRender ™ has always had the ability to create and display real-time stereoscopic images, but unfortunately only in anaglyph mode that, while offering a good feeling of perspective and depth, because of the false color, fails to return a full and engaging visual experience.
OctaneRender finally ™ 2.0 offers full support for stereoscopic 3D, in addition to Anaglyphic vision, offers the option Parallel and Off-axis plus the ability to toggle the image for the right eye, left eye, or both at the same time side by side. All of course in real-time as in the style of OctaneRender ™ ;)

Setting the Camera
To make a picture or animation to be viewed on the Google Cardboard is necessary to set the node Thin Lens Camera in the appropriate manner. First you need to set the Deformation to the maximum value of 1 to correct the opposite deformation given by the lenses of the viewer. Afterwards set the Stereo mode on parallel and Stereo output on Side-by-Side, so the images in the viewport are displayed side by side horizontally. The last setting is for the Eye distance, which should be adjusted to 0.065 corresponding to 6.5 cm.
As a final step before launch of the final calculation, you must set the Resolution to match with the size of your smartphone that will be used as a viewer inside the Google Cardboard, in the case of an iPhone 5 corresponds to 1136x640 pixels.

Visual experience
Once you download the stereoscopic content to the smartphone, and having placed it in the space provided, it is sufficient to close the viewer through the velcro, closer to the face and immerse themselves immediately into stereoscopic vision.
Considering that we are talking about a product of cardboard assembled in seconds, the visual experience is definitely more engaging and defined in comparison with the anaglyphic vision. I have not seen any strange feeling or visual fatigue when viewing stereo 3D images and animations. On the contrary, a slight feeling of nausea occurred after a few minutes using the free apps virtual navigation available on Appstore or GooglePlay. Probably because the first instinct was to get up and walk, the involvement is quite remarkable!

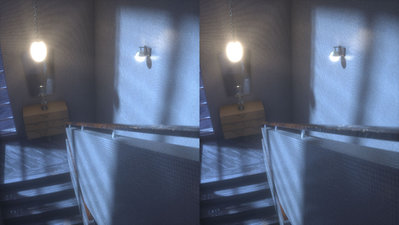

Below are some pictures and a sample animation created with OctaneRender ™ V2.0 to test the viewer



[ Play Quicktime file ] a-sCap-06-3D-02.mp4 [ 4.51 MiB | Viewed 7738 times ]


In conclusion, the Google Cardboard is an interesting and fun gadget that anticipates roughly the experience that we will soon have with Oculus Rift and OctaneRender™ interfaced together in the near future.

Happy rendered by the team of Octane.it :D
User avatar
bepeg4d
Octane Guru
Octane Guru

Posts: 7532
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby whersmy » Sat Sep 13, 2014 4:27 pm

whersmy Sat Sep 13, 2014 4:27 pm
yes please. Bookmarked.
Awesome summary!
mac pro g5| pentium g2030 iGPU| maximus extreme V| 2x gtx590 - 8gb - SSD - win7-x64- 1500W Silverstone|
x201t - gtx580 - egpu ec
Dell G5 - 8GB - dgpu GTX1060 - TB3 egpu @ GTX1060
Octane Render experiments
User avatar
whersmy
Licensed Customer
Licensed Customer

Posts: 608
Joined: Thu Aug 30, 2012 7:40 am

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby glimpse » Sat Sep 13, 2014 5:08 pm

glimpse Sat Sep 13, 2014 5:08 pm
Thanks for sharing, Bepe! Nice to see such experiments =) looking forward for hands-on with other devices like Oculus!
tomGlimps | [email protected] | 32GB | TitanBlack
Available for Freelance, Coaching & Mentoring
User avatar
glimpse
Licensed Customer
Licensed Customer

Posts: 3634
Joined: Wed Jan 26, 2011 2:17 pm

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby bepeg4d » Sat Sep 13, 2014 5:17 pm

bepeg4d Sat Sep 13, 2014 5:17 pm
thanks whersmy and tom :)
i always wanted to work with stereoscopic images but without hardware is a bit difficult :D
now with only 25€ i can do it, fantastic ;)
i'll keep you informed with other experiments ;)
User avatar
bepeg4d
Octane Guru
Octane Guru

Posts: 7532
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby glimpse » Sat Sep 13, 2014 5:37 pm

glimpse Sat Sep 13, 2014 5:37 pm
hehe, I'm a bit curious how these are going to perform.

Don't like this technology very much as if I sit in theatre my head start spinin' - I get dizzy in about 15min..- read some articles where some doctors tried to explain what's happening & it seems there's a portion of people who react the same..

now the question how would I feel using those =) maybe something is different & that weird feeling will be gone?
tomGlimps | [email protected] | 32GB | TitanBlack
Available for Freelance, Coaching & Mentoring
User avatar
glimpse
Licensed Customer
Licensed Customer

Posts: 3634
Joined: Wed Jan 26, 2011 2:17 pm

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby Jorgensen » Tue Jun 16, 2015 8:22 am

Jorgensen Tue Jun 16, 2015 8:22 am
is this possible with the plugin for max?

it seems that some settings are missing (using version 2.15).

thanks
HOME octane standalone v3.07 | octane plugin for sketchup 3.07.0.14 | sketchup pro 2017 17.2.2555 64 bit | windows 10 pro 10.015063 build 15063 | i7-6700k @4.0 GHz | 32gb ram | 2x gtx 1070 | nvidia driver 382.33
Jorgensen
Licensed Customer
Licensed Customer

Posts: 872
Joined: Sun Jun 30, 2013 10:53 am

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby bepeg4d » Tue Jun 16, 2015 12:59 pm

bepeg4d Tue Jun 16, 2015 12:59 pm
hi,
sure, it should be works also with the 3Ds Max integrated plugin, maybe some naming is different or in different place. By the way, the latest 3Ds Max plugin is v 2.23.2 just like the Standalone ;)
viewtopic.php?f=80&t=47094
ciao beppe
User avatar
bepeg4d
Octane Guru
Octane Guru

Posts: 7532
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby Jorgensen » Tue Jun 16, 2015 3:34 pm

Jorgensen Tue Jun 16, 2015 3:34 pm
Ah ok. I've just not had the courage to try the new version, as I have read a about a lot of troubles. But I will try it :-)

I have some questions regarding iPhone / cardboard / octane

CARDBOARD
can anyone suggest a good model that fits the iPhone

APP
How can one see images created with octane via iPhone? I guess it could be done with google cardboard, but it seems us only

Thanks :)
HOME octane standalone v3.07 | octane plugin for sketchup 3.07.0.14 | sketchup pro 2017 17.2.2555 64 bit | windows 10 pro 10.015063 build 15063 | i7-6700k @4.0 GHz | 32gb ram | 2x gtx 1070 | nvidia driver 382.33
Jorgensen
Licensed Customer
Licensed Customer

Posts: 872
Joined: Sun Jun 30, 2013 10:53 am

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby bepeg4d » Tue Jun 16, 2015 4:14 pm

bepeg4d Tue Jun 16, 2015 4:14 pm
hi,
for the cardboard model, I think that the crucial part are the dimensions of your iPhone. There should be roughly two types, for 4" or 5" display.
I use KolorEye and Homido for ios for watching the results. maybe someone else has other options :roll:
ciao beppe
User avatar
bepeg4d
Octane Guru
Octane Guru

Posts: 7532
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy

Re: Google Cardboard VR and OctaneRender™ 2.0

Postby Jorgensen » Tue Jun 16, 2015 7:25 pm

Jorgensen Tue Jun 16, 2015 7:25 pm
hi beppe

thanks for your input - i have just orded a headset from homido, as it seem to be in good quality.

and i just updated both standalone and plugin - and wow some new features :-)

i will look at koloreye :-)

once again thanks.
jorgensen
HOME octane standalone v3.07 | octane plugin for sketchup 3.07.0.14 | sketchup pro 2017 17.2.2555 64 bit | windows 10 pro 10.015063 build 15063 | i7-6700k @4.0 GHz | 32gb ram | 2x gtx 1070 | nvidia driver 382.33
Jorgensen
Licensed Customer
Licensed Customer

Posts: 872
Joined: Sun Jun 30, 2013 10:53 am
