Displacement issue 3.07 skewed steps on smooth gradients

Generic forum to discuss Octane Render, post ideas and suggest improvements.
Forum rules
Please add your OS and Hardware Configuration in your signature, it makes it easier for us to help you analyze problems. Example: Win 7 64 | Geforce GTX680 | i7 3770 | 16GB
Post Reply
Chromfell
Licensed Customer
Posts: 13
Joined: Wed May 04, 2016 7:01 pm
Location: Austria
Contact:

Hi.
I make building displacement maps.
Yeah, might be unconventional - but listen, I feel like 3.07 has a problem with displacement. Let me show you.

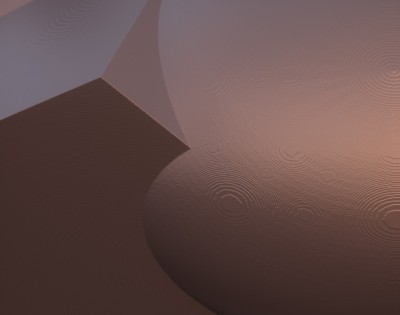

What are those steps? My first thought was not enough bit depth (had that before), but they also don't make any sense visually...

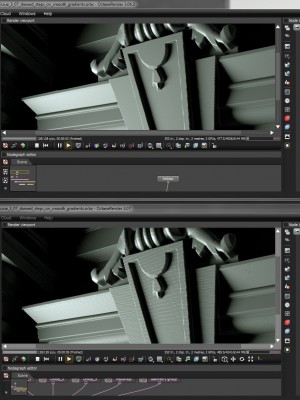

To me at least. You're looking at a pure, lossless linear 16-bit PNG gradient being displaced, but with weird skewed lines throughout.
I've had other octane users replicate the issue on their end (presumably also on 3.07) and they experienced the same.

I reproduced the effect with other displacement examples aswell:
You're looking at a 32-bit tiff baked sphere and a cube. And those ridges are NOT supposed to be there.

Just hope it's fixed by the time stable 3.08 rolls out cuz I really wanna get my hands on that sweet OSL in OctaneC4D... but my building maps are my everything, ya feel?

Anyway, what the hecc happen otoy??? :o :o :o

.ORBX PROJECT FILE:
Windows 10 Pro -- RTX 2070 x 3 -- Ryzen 1920X, 32GB -- Blender, Standalone, Cinema4D
User avatar
bepeg4d
Octane Guru
Posts: 10345
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:

Hi Chromfell,
wow, congrats, great displacement work :)

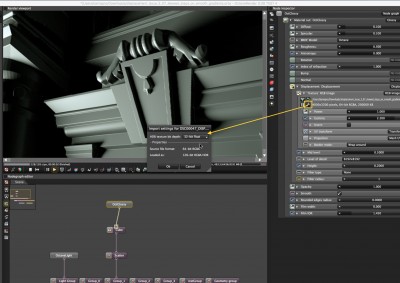

About 3.07/3.08, now you need to click the tool icon of the Displacement texture and change the depth from default 16bit to 32bit:
ciao beppe
Chromfell
Licensed Customer
Posts: 13
Joined: Wed May 04, 2016 7:01 pm
Location: Austria
Contact:

hi beppe,

Thanks, but I have to ask, why the change? How does this affect the workflow?
Did it previously always interpret as 32bit and this is the new default to save VRAM?
Seems like a bad idea to have the "worse" option as a default :/

I also have no option to enable this in cinema4d plugin which is what I mainly work with...
so I can't use smooth displacement there at the moment?
Interesting choices.

ciao chromfell
Windows 10 Pro -- RTX 2070 x 3 -- Ryzen 1920X, 32GB -- Blender, Standalone, Cinema4D
User avatar
aoktar
Octane Plugin Developer
Posts: 16065
Joined: Tue Mar 23, 2010 8:28 pm
Location: Türkiye
Contact:

Chromfell wrote: I also have no option to enable this in cinema4d plugin which is what I mainly work with...
so I can't use smooth displacement there at the moment?
Interesting choices.
It's for saving memory and good for most of situations i suppose. Also I don't know how to change this parameter from sdk but i'll talk to team.
Octane For Cinema 4D developer / 3d generalist

3930k / 16gb / 780ti + 1070/1080 / psu 1600w / numerous hw
User avatar
bepeg4d
Octane Guru
Posts: 10345
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:

Hi Chromfell,

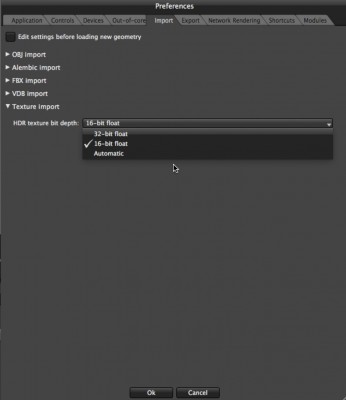

in Standalone you can specify in Preferences/Import what to do with HDR texture bit depth while importing :
ciao beppe
User avatar
abstrax
OctaneRender Team
Posts: 5508
Joined: Tue May 18, 2010 11:01 am
Location: Auckland, New Zealand

Chromfell wrote:hi beppe,

Thanks, but I have to ask, why the change? How does this affect the workflow?
Did it previously always interpret as 32bit and this is the new default to save VRAM?
Seems like a bad idea to have the "worse" option as a default :/

I also have no option to enable this in cinema4d plugin which is what I mainly work with...
so I can't use smooth displacement there at the moment?
Interesting choices.

ciao chromfell
HDR images that are used as textures are converted to half float anyway, which is why we made it the default. Displacement mapping is actually the exception here, but of course you can change the defaults in the preferences to what you think makes most sense for you. And of course you can also change it for a particular node, too (using the wrench icon).
In theory there is no difference between theory and practice. In practice there is. - Yogi Berra
julienplastic
Licensed Customer
Posts: 3
Joined: Mon Dec 01, 2014 4:54 pm

Hello,
I have a similar problem with Octane Render for C4d 3.06.2.
How I can resolve this problem?

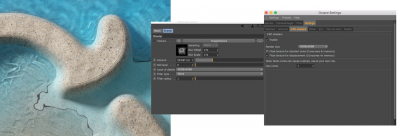

(The displacment use a 32bit ImageTexture, levels of details in displacment channel is 4096x4096.)
All the best
Attachments
Capture d’écran 2018-02-06 à 12.53.35.png
julienplastic
Licensed Customer
Posts: 3
Joined: Mon Dec 01, 2014 4:54 pm

Hello,
No solutions for this?
User avatar
bepeg4d
Octane Guru
Posts: 10345
Joined: Wed Jun 02, 2010 6:02 am
Location: Italy
Contact:

Hi julienplastic,
sorry, difficult to say without the scene.
Please, try with 3.08test 6, the displacement feature has been revisited.
ciao beppe
Post Reply
