Re: Z-Depth pass problem (Anti-Aliasing/jagged edges)

Postby oguzbir » Fri Oct 21, 2016 1:31 am

oguzbir Fri Oct 21, 2016 1:31 am
Hey abstrax,
While you start dealing with the info/render passes or Render Elements as we call them in 3dsmax.

Could you please implement Material or Object ID passes with colours only with R G B colours..
you can read more about this need here:
viewtopic.php?f=82&t=56981
My Portfolio
windows 10 Pro. |1070 + 1070 + 1070 + 1070 | i7 @4.5Ghz
User avatar
oguzbir
Licensed Customer
Licensed Customer

Posts: 715
Joined: Fri Jun 25, 2010 12:30 am

Re: Z-Depth pass problem (Anti-Aliasing/jagged edges)

Postby Terryvfx » Fri Oct 21, 2016 2:10 am

Terryvfx Fri Oct 21, 2016 2:10 am
I think the only useful piece of information I can add to this is that yes, the new mode to disable pixel filtering in the info passes will definitely will be useful to get correct results in things like post DOF but about the coverage/cryptomatte workflow I'm not to confident in pointing a specific solution, one thing for sure is that a coverage map is easier to use and I think every application for compositing is able to work with this at least After Effects is.

Thanks for asking abstrax!
User avatar
Terryvfx
Licensed Customer
Licensed Customer

Posts: 299
Joined: Tue Dec 30, 2014 12:43 am

Re: Z-Depth pass problem (Anti-Aliasing/jagged edges)

Postby abstrax » Fri Oct 21, 2016 2:33 am

abstrax Fri Oct 21, 2016 2:33 am
oguzbir wrote:Hey abstrax,
While you start dealing with the info/render passes or Render Elements as we call them in 3dsmax.

Could you please implement Material or Object ID passes with colours only with R G B colours..
you can read more about this need here:
viewtopic.php?f=82&t=56981

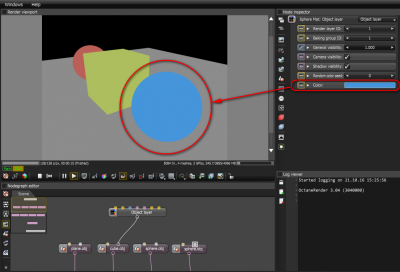

You can do this already using the object layer node, where you can specify a colour, which is rendered in the object layer colour pass:
In theory there is no difference between theory and practice. In practice there is. - Yogi Berra
User avatar
abstrax
OctaneRender Team
OctaneRender Team

Posts: 5143
Joined: Tue May 18, 2010 11:01 am
Location: Auckland, New Zealand

Re: Z-Depth pass problem (Anti-Aliasing/jagged edges)

Postby FxDesign » Fri Oct 21, 2016 11:28 am

FxDesign Fri Oct 21, 2016 11:28 am
abstrax wrote:We will look into this issue in the next couple of weeks. Just to make sure that I got this right: We will add a new mode that disables pixel filtering on all info passes, except:

- layer mask
- wire frame
- AO
- all material passes (opacity, roughness, ...)

I have been thinking about the coverage passes and I don't think the original concept (storing the pixel coverage of the object ID with the largest coverage) can be implemented reasonably in Octane, we could do something that works similarly (storing the pixel coverage of the object ID that is at the center of the pixel), but I don't think it will be good enough to extract useful anti-aliased mattes from it. There is also the "cryptomatte" system (viewtopic.php?f=33&t=55253) which might be more useful since it allows the separation of multiple objects/mattes per pixel. So the questions I have are:

Which post-processing tools could use coverage passes and which tools can use "cryptomattes" or OpenDCX?
You would render those coverage/cryptomatte passes for only for one of the ID passes (material ID / object ID / object layer colour / render layer ID) or for multiple of these?
Is there any other approach that should be considered instead?



Great Abstrax :)
Can you tell us when it will be released ?

Thank you
FxDesign
Licensed Customer
Licensed Customer

Posts: 80
Joined: Wed Apr 24, 2013 10:47 am

Re: Z-Depth pass problem (Anti-Aliasing/jagged edges)

Postby abstrax » Fri Oct 21, 2016 11:38 am

abstrax Fri Oct 21, 2016 11:38 am
FxDesign wrote:Great Abstrax :)
Can you tell us when it will be released ?

Thank you

When it's implemented ;) (don't know when exactly we will get to work on it).
In theory there is no difference between theory and practice. In practice there is. - Yogi Berra
User avatar
abstrax
OctaneRender Team
OctaneRender Team

Posts: 5143
Joined: Tue May 18, 2010 11:01 am
Location: Auckland, New Zealand

Re: Z-Depth pass problem (Anti-Aliasing/jagged edges)

Postby calus » Fri Oct 21, 2016 12:01 pm

calus Fri Oct 21, 2016 12:01 pm
abstrax wrote:We will look into this issue in the next couple of weeks. Just to make sure that I got this right: We will add a new mode that disables pixel filtering on all info passes, except:
- layer mask
- wire frame
- AO
- all material passes (opacity, roughness, ...)

It seems corrects to me.

Also do you intend to finally have a different switch for distributed raytracing and for filtering ?
because I don't think it's needed, unfiltered passes are useful only when motion-blur and dof are post-effects anyway.

abstrax wrote:Which post-processing tools could use coverage passes and which tools can use "cryptomattes" or OpenDCX?


- Nuke, Fusion and AfterFX can use coverage passes.

- A cryptomatte python tool is available for Nuke and one for Fusion is on its way:
http://www.steakunderwater.com/wesuckle ... php?t=1027
Cryptomatte only needs a scripting solution on the post-processing part so will be easily/widely supported.

- OpenDCX is the future obviously, but still very young,
as far as I know you have to compile yourself the preliminary Nuke toolkit.

note : I seem to remember cryptomatte needs coverage pass internally.

abstrax wrote:You would render those coverage/cryptomatte passes for only for one of the ID passes (material ID / object ID / object layer colour / render layer ID) or for multiple of these?

for multiple of these.
Pascal ANDRE
--------------------
Maya 2019, Windows 7, 128 GB RAM
4x GTX 1070, driver 430.39
--------------------

--------------------
Join MAYA OCTANE USERS Skype discussion here :
https://join.skype.com/LXEQaqqfN15w
--------------------
calus
Licensed Customer
Licensed Customer

Posts: 1306
Joined: Sat May 22, 2010 9:31 am
Location: Paris
