Volumetrics

Postby simsen » Fri Oct 17, 2014 10:53 am

simsen Fri Oct 17, 2014 10:53 am
hello,

is there a way to add volumetric to a light or to the global scene (fog) when using IBL?

thanks
simsen
Licensed Customer
Licensed Customer

Posts: 24
Joined: Sat Aug 30, 2014 9:37 am

Re: Volumetrics

Postby face_off » Fri Oct 17, 2014 11:35 am

face_off Fri Oct 17, 2014 11:35 am
Yes. It's been a while since I've done this - but from memory you add a cube around the render area and set it up with a specular material with a scatter. The camera must be outside the cube. Check the Tutorials forums, or search for fog. It works really nicely, but takes some time to learn the setup.

Paul
Win7/Win10/Mavericks/Mint 17 - GTX550Ti/GT640M
Octane Plugin Support : Poser, ArchiCAD, Revit, Inventor, AutoCAD, Rhino, Modo, Nuke
Pls read before submitting a support question
User avatar
face_off
Octane Plugin Developer
Octane Plugin Developer

Posts: 15471
Joined: Fri May 25, 2012 10:52 am
Location: Adelaide, Australia

Re: Volumetrics

Postby simsen » Fri Oct 17, 2014 11:38 am

simsen Fri Oct 17, 2014 11:38 am
Ok, thanks Paul
simsen
Licensed Customer
Licensed Customer

Posts: 24
Joined: Sat Aug 30, 2014 9:37 am

Re: Volumetrics

Postby LFedit » Wed Feb 18, 2015 5:37 pm

LFedit Wed Feb 18, 2015 5:37 pm
I tried searching but can not for the life of me figure out how to set up volumetrics. Simsen, did you get this to work at all? I will keep searching..
Win 7 64bit/ Nvidia Maximus k5000 and k20
LFedit
Licensed Customer
Licensed Customer

Posts: 408
Joined: Tue Jan 22, 2013 12:00 am

Re: Volumetrics

Postby face_off » Wed Feb 18, 2015 10:17 pm

face_off Wed Feb 18, 2015 10:17 pm
I have attached a Modo sample scene.

Camera must be out of the "fog box" ("Cube 2" in this case). The emitter is inside (but probably not mandatory).

Set hotpixel to 0 and caustic blur to 1. Use Path Tracing.

The fog material probably needs Scatter < Absorption. Set Reflection as 0 (black), Transmission as 1 (white), Index 0.

Paul
Attachments
modo fog sample scene.zip
(10.61 KiB) Downloaded 213 times

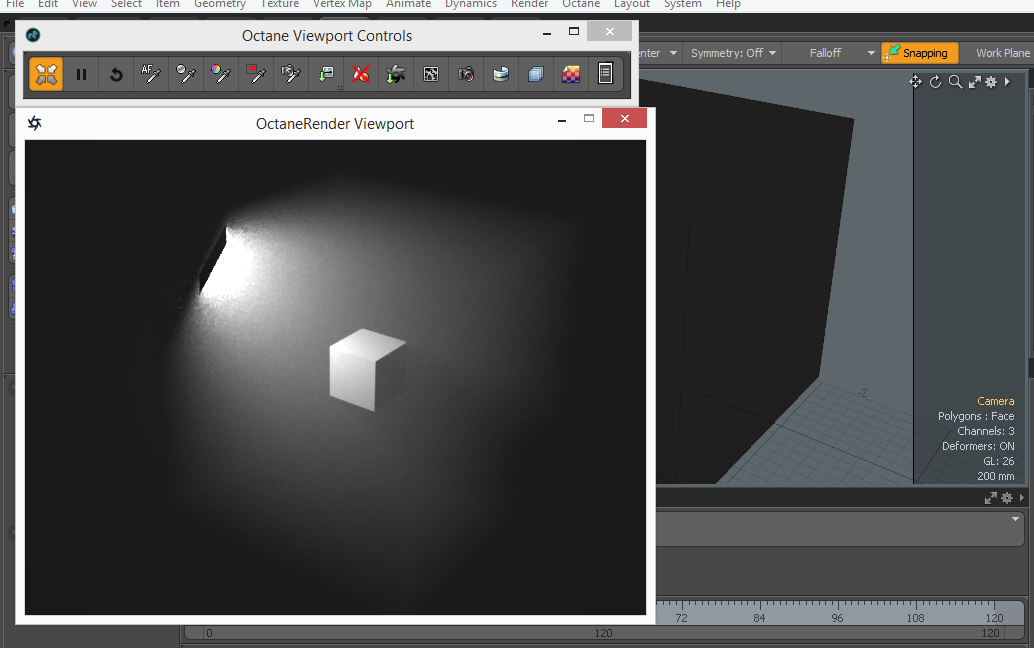

modo fog.png
Win7/Win10/Mavericks/Mint 17 - GTX550Ti/GT640M
Octane Plugin Support : Poser, ArchiCAD, Revit, Inventor, AutoCAD, Rhino, Modo, Nuke
Pls read before submitting a support question
User avatar
face_off
Octane Plugin Developer
Octane Plugin Developer

Posts: 15471
Joined: Fri May 25, 2012 10:52 am
Location: Adelaide, Australia

Re: Volumetrics

Postby LFedit » Thu Feb 19, 2015 10:46 pm

LFedit Thu Feb 19, 2015 10:46 pm
Got it. Thanks. I had to adjust a few things but copied your material exactly. Thanks!!
Win 7 64bit/ Nvidia Maximus k5000 and k20
LFedit
Licensed Customer
Licensed Customer

Posts: 408
Joined: Tue Jan 22, 2013 12:00 am
