OctaneRender™ Standalone 1.31 Tweet

[abstrax]

Hi All,

This is a quick-fix release to patch a few holes of 1.30 (especially in the API).

Changes since version 1.30

Rendering

• Fixed animation render script to work correctly with the latest Lua changes.
• Increased the maximum render resolution to 32768x32768 pixels. Please be aware that you can't render the maximum resolution with current hardware since the film buffer wouldn't fit into VRAM. In case you just want to increase the image resolution in one direction, the film buffer should fit, but you may have to switch to the software viewport since OpenGL may not be able to display such large images.

Scene and Geometry I/O

• Fixed creation of object layer pins of a scene node graph when loaded from Alembic files.

Lua Scripting

• Added octane.render.setSubSampleMode() and octane.render.getSubSampleMode() to set/get the current sub-sampling mode.
• Added octane.render.setClayMode() and octane.render.getClayMode() to set/get the current clay mode.

Download:

Windows
ZIP archives:
- 64-bit
- 32-bit

MacOS X
ZIP archive:
- 32-bit and 64-bit

Linux
ZIP archive:
- 64-bit

Happy rendering,
Your OTOY NZ Team

[Rikk The Gaijin]

I tried for the first time to export a camera from Maya in alembic format, and I can see the blue circle representing the camera node in Octane, but the camera settings are completely wrong compared to the ones I have in Maya... Am I missing something?

Btw, version 1.31 looses the material information of Alembic... Works fine in previous versions.

[bepeg4d]

hi marcus,
thanks for the quick fix
@rikk: probably a scale issue, click the preference button of the alembic node a set the scale to centimeters
at least, this is what i do in c4d
ciao beppe

[Rikk The Gaijin]

hi marcus,
thanks for the quick fix
@rikk: probably a scale issue, click the preference button of the alembic node a set the scale to centimeters
at least, this is what i do in c4d
ciao beppe

Beppe, thx but it's not a scale issue, the position in space is wrong, as well as fov, etc...
Is there anyone that can explain me how to export a camera from Maya?

[Rikk The Gaijin]

This is what I export from Maya



And this is what comes in Octane (after I manually set the Alembic scale to centimeters)

[smicha]

32k x 32k is about 1 gigapixel image

I hardly can keep up with updates

Thank you Guys.

[smicha]

Please be aware that you can't render the maximum resolution with current hardware since the film buffer wouldn't fit into VRAM. In case you just want to increase the image resolution in one direction, the film buffer should fit, but you may have to switch to the software viewport since OpenGL may not be able to display such large images.[/color][/b][/list]

Marcus,

I tried to increase a very simple scene resolution. What I managed to achieve was something about 16000 x 600 (Titan). Then a blank gray screen appears and I cannot display a model in the preview window anymore and I must close Octane. See the screenshot. Is this OpenGL limitation or should it work under such resolutions?

[Rikk The Gaijin]

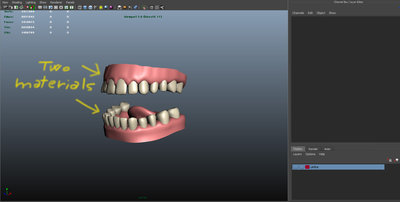

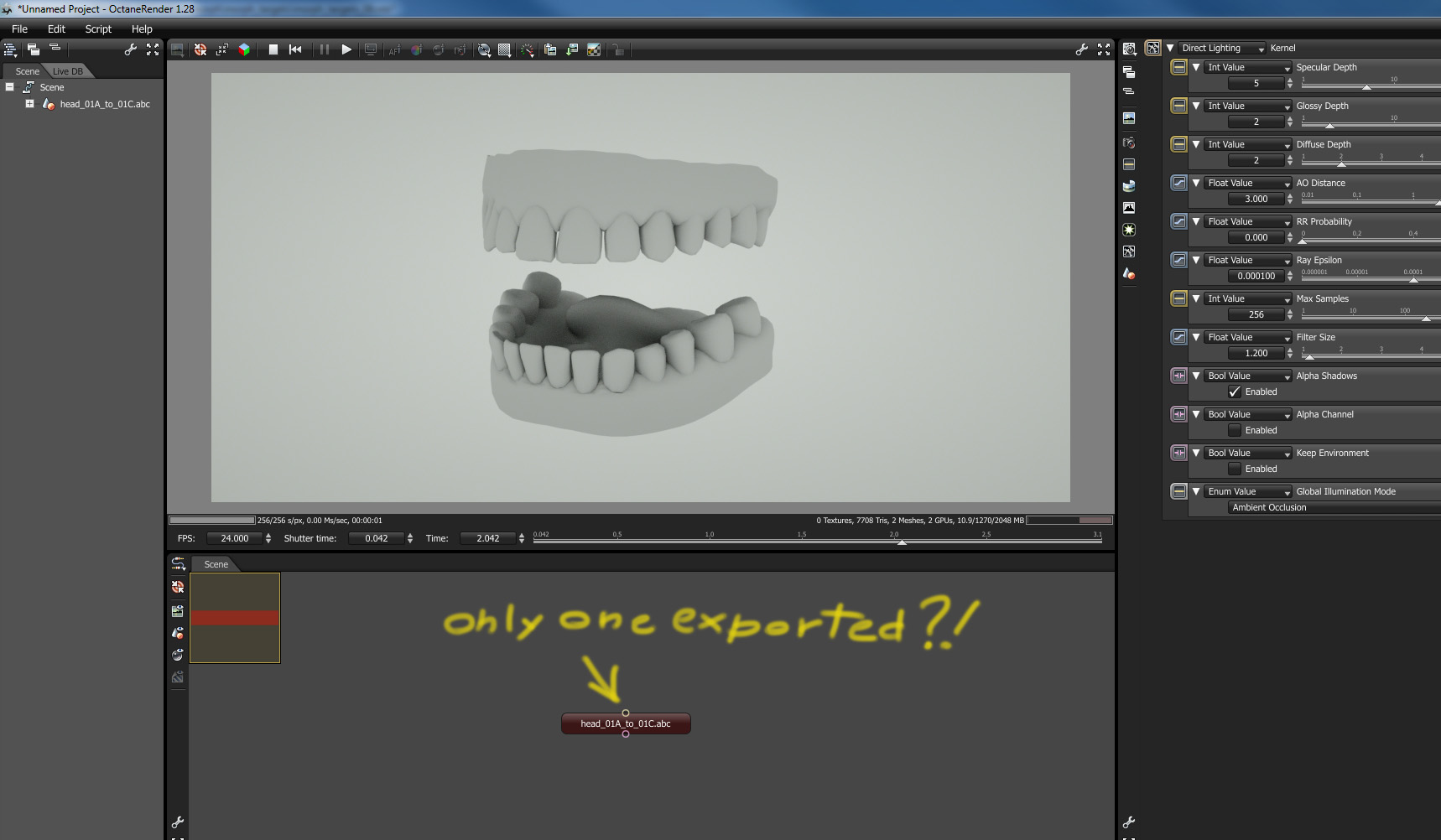

I also have another problem (it seems Alembic support is completely screwed)

[abstrax]

Please be aware that you can't render the maximum resolution with current hardware since the film buffer wouldn't fit into VRAM. In case you just want to increase the image resolution in one direction, the film buffer should fit, but you may have to switch to the software viewport since OpenGL may not be able to display such large images.[/color][/b][/list]

Marcus,

I tried to increase a very simple scene resolution. What I managed to achieve was something about 16000 x 600 (Titan). Then a blank gray screen appears and I cannot display a model in the preview window anymore and I must close Octane. See the screenshot. Is this OpenGL limitation or should it work under such resolutions?

That's the OpenGL limitation I mentioned. You can get around it using the software viewport (File -> Preferences -> Application -> Viewport).

[abstrax]

I also have another problem (it seems Alembic support is completely screwed)



Could you post an example file and a screenshot how it appeared in previous versions and in 1.31? Thanks.
