OctaneRender™ Standalone 2.21.1

[mikinik]

just make sure the mesh has the velocity "v" point attribute exported in the alembic file.

you checked it? even so this does not work.
I don't understand why there is no clear answer from the developers, will this work and if so when?

[abstrax]

just make sure the mesh has the velocity "v" point attribute exported in the alembic file.

you checked it? even so this does not work.
I don't understand why there is no clear answer from the developers, will this work and if so when?

We don't have Realflow, so we don't know which export options it has for Alembic. If it can export vertex velocities, Octane can render vertex motion blur, if it doesn't then there is nothing Octane can do since the topology (and the vertex list) changes from frame to frame, i.e. there is nothing to interpolate.

-> If possible export vertex velocities.

[mikinik]

thanks for the reply. well, maybe this attribute is not in alembic file. you can do so that could render at least one frame from .bin sequences? when I put two checkboxes in movebale proxy and vertex motion blur, octane shows speed in 1 Samp/pix and picture can be seen jittering colored noise during the render. .bin sequence loaded using realflow mesh loader. or you tell me again that you don't have the owners realflow? why other renderers don't have such problems, they bought realflow?
abstrax, can make please some comment about this bugs or may be this features? http://render.otoy.com/forum/viewtopic.php?f=81&t=45519

[abstrax]

thanks for the reply. well, maybe this attribute is not in alembic file. you can do so that could render at least one frame from .bin sequences?

Sorry, I don't understand your question.

when I put two checkboxes in movebale proxy and vertex motion blur, octane shows speed in 1 Samp/pix and picture can be seen jittering colored noise during the render. .bin sequence loaded using realflow mesh loader. or you tell me again that you don't have the owners realflow? why other renderers don't have such problems, they bought realflow?

That noise is noise caused by spectral sampling and which will go away after more samples/pixel. Maybe have a look at already existing scenes and investigate how physically based rendering behaves.

abstrax, can make please some comment about this bugs or may be this features? http://render.otoy.com/forum/viewtopic.php?f=81&t=45519

I'll reply in the thread.

[mikinik]

that's what I'm talking about. in RFMeshLoader have information about velocity but octane are not rendered vertex motion blur. this is a problem in octane and not more than that. it can be fixed?

[abstrax]

that's what I'm talking about. in RFMeshLoader have information about velocity but octane are not rendered vertex motion blur. this is a problem in octane and not more than that. it can be fixed?

How did you verify that there is velocity information?

[mikinik]

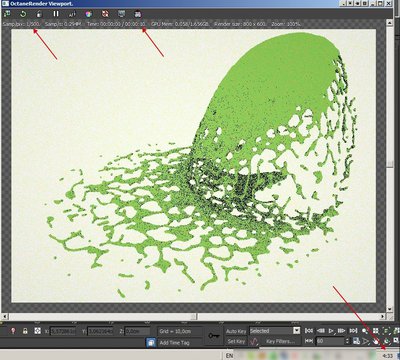

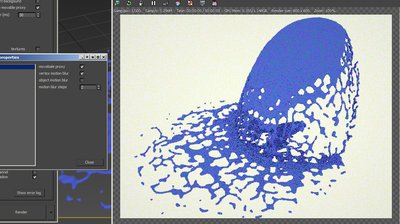

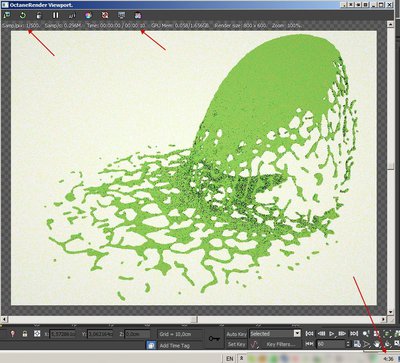

when I put two checkboxes in movebale proxy and vertex motion blur, octane shows speed in 1 Samp/pix and picture can be seen jittering colored noise during the render.

here's the error about which I spoke earlier. over time nothing has changed.

[mikinik]

How did you verify that there is velocity information?

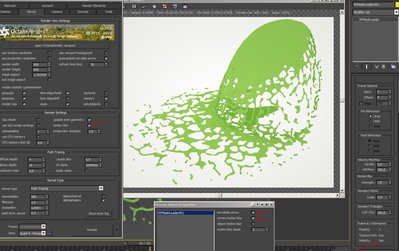

here I saw it

[abstrax]

How did you verify that there is velocity information?

here I saw it

Ok, now I understand. The Alembic file you have sent to me contains only particle information (with velocities) and the RFMeshLoader creates a polygon/triangle mesh from it. The generated meshes do not have that vertex velocity information anymore. We can have a look and try to get it maybe directly from the plugin, but for that we would need to get in touch with NextLimit first.

The only thing you can try is using sub-frame motion blur, which you can set up in the 3ds max camera.

[JimStar]

when I put two checkboxes in movebale proxy and vertex motion blur, octane shows speed in 1 Samp/pix and picture can be seen jittering colored noise during the render.

here's the error about which I spoke earlier. over time nothing has changed.

Could you give me this scene?
